Adjustment
4 Adjustment
4.1 Indicating and adjustment
elements

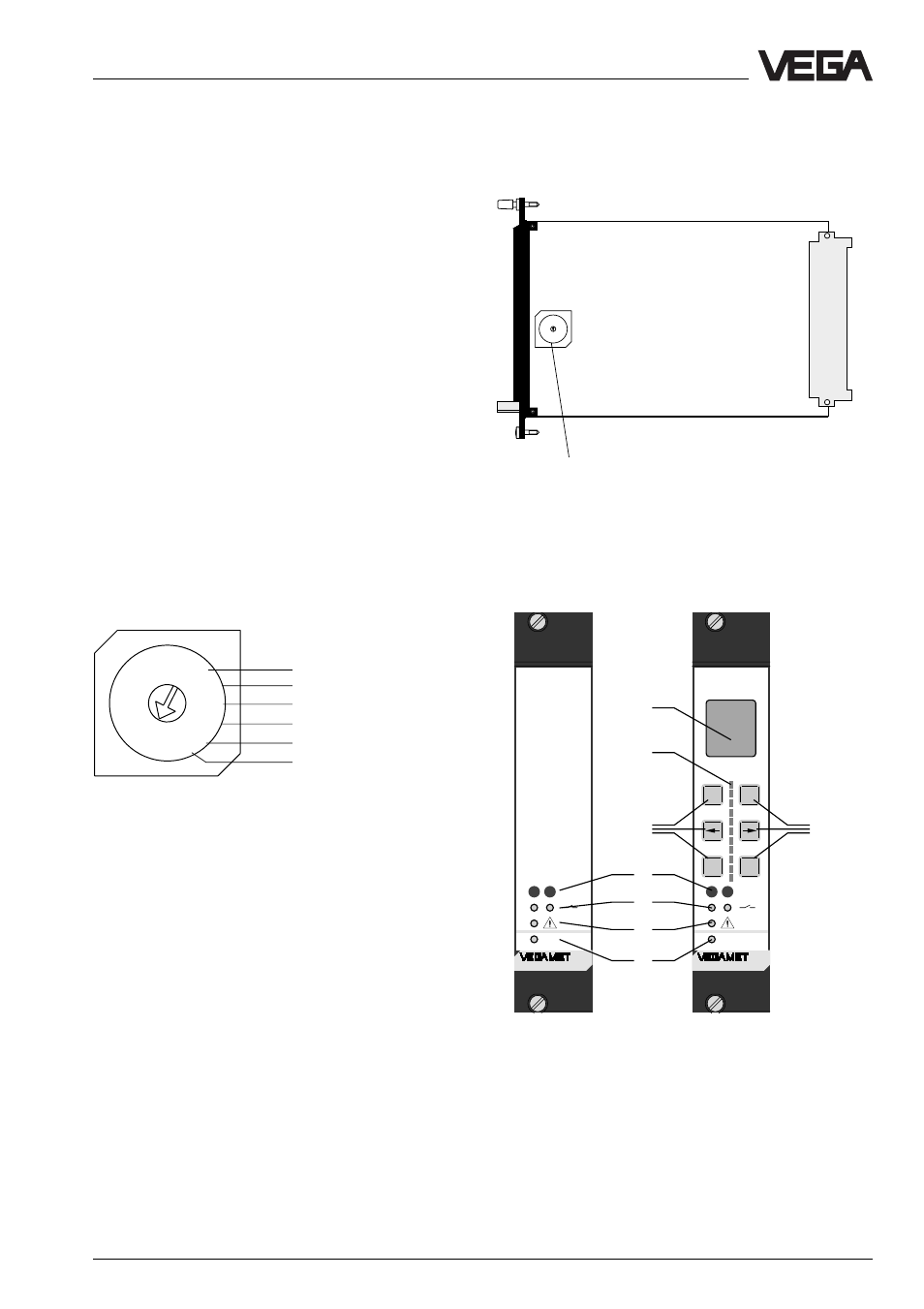

Circuit board
A rotary switch is located on the circuit
board. It is used for adjustment of the instru-
ment address on DISBUS. This setting is
necessary if several VEGAMET signal condi-
tioning instruments are linked via the DISBUS
or if you control a VEGADIS 174 indicating
instrument via the DISBUS.
The adjustment range 1 … F corresponds to
the DISBUS addresses 1 … 15.
Factory setting: 1
Note:
With address 0 the VEGAMET does not par-
ticipate in the DISBUS communication.
Rotary switch
The set instrument address on the DISBUS
can be indicated via the LC display.
Note
If several VEGAMET are linked via the
DISBUS, each address must only be as-
signed once!
8
7
6
5
4
0
F
E
D
C
B
A
9
3 3
2
1
10
11
12
13
14
15
Front plate VEGAMET 514V
without adjustment with adjustment
module module
1 LCD (4 lines with 6 figures each, illuminated) for clear text
indication
2 LED chain (yellow) for quasianalogue indication of the
measured value
3 Keys for menu adjustment
4 Connection socket for VEGACONNECT
5 LED (yellow) lights if the relay is energised (standard
setting)
6 LED (red), lights if fail safe relay is deenergised
7 LED (green), lights if operating voltage is on
Rotary switch
CONNECT
%
100
+ -
OK ESC
on
1 2
514
CONNECT
%
100
+ -
OK ESC
on
1 2
514
CONNECT
on
1 2
514
1
2
3 3
4
5
6
7
Position of the rotary switch
