Installation Guide
Power Monitoring
E50H2A, E50H5A
TM

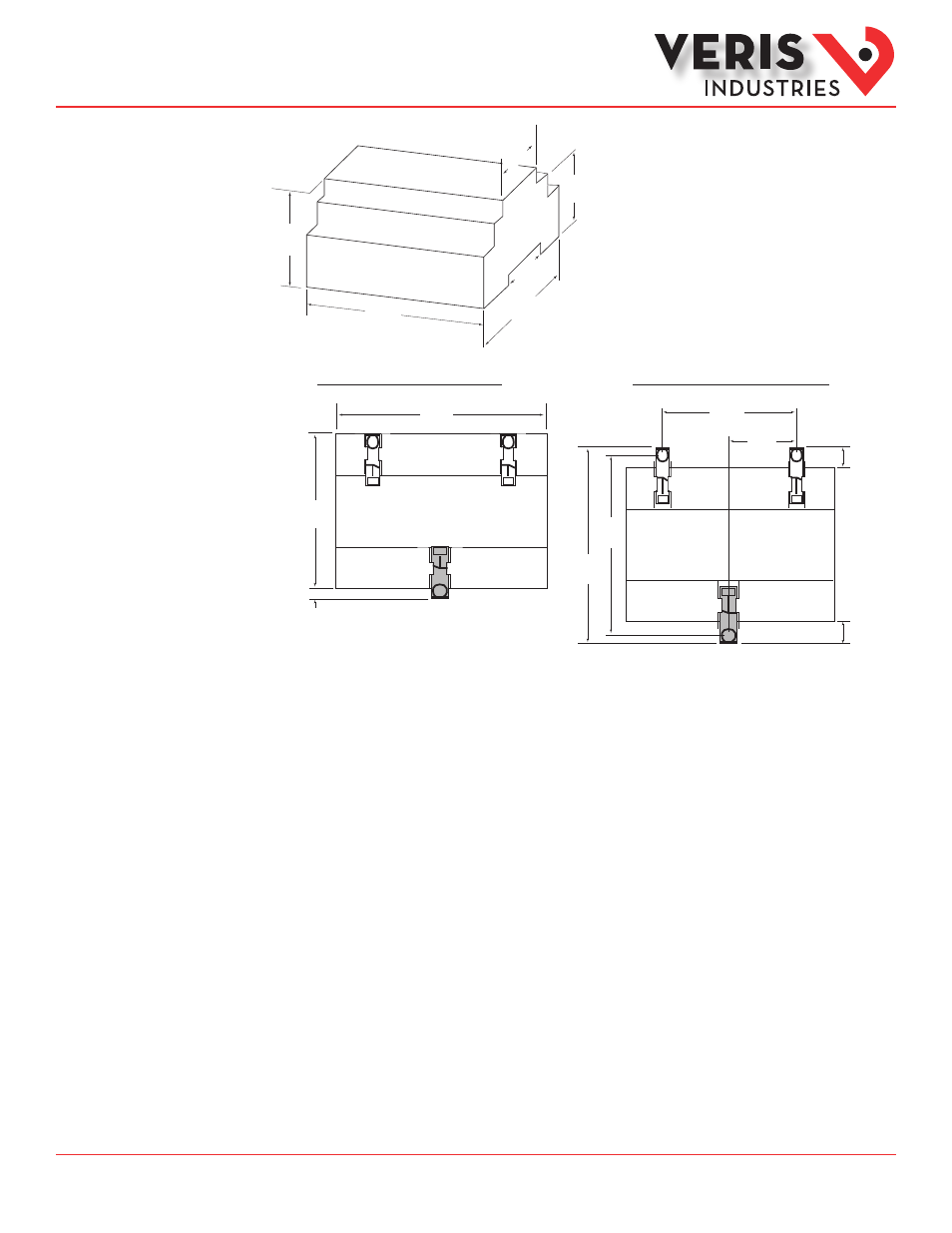

Dimensions
4.2”
(107mm)
3.6”
(91mm)
1.5”
(39mm)
2.3”
(59mm)
1.9”
(48mm)
1.8”
(45mm)
3.6 “
(91 mm)
4.2 “
(107 mm)
0.2 “
(4 mm)
3.9“
(99 mm)
2.4 “
(61 mm)
+
+
+
4.3 “
(109 mm)
1.2 “
(31 mm)
0.3 “
(8 mm)
0.4 “
(10 mm)
Bottom View (DIN Mount Option)
Bottom View (Screw Mount Option)
Full Data Set (FDS):
Power (kW)
Energy (kWh)
Configurable for CT & PT ratios, system type, and passwords
Diagnostic alerts
Current: 3-phase average
Volts: 3-phase average
Current: by phase
Volts: by phase Line-Line and Line-Neutral
Power: Real, Reactive, and Apparent 3-phase total and per phase
Power Factor: 3-phase average and per phase
Frequency
Power Demand: Most Recent and Peak
Demand Configuration: Fixed, Rolling Block, and External Sync
Real Time Clock: uses BACnet Time Synchronization services
Data Logging (E50H5A only; includes all FDS outputs, plus):
3 BACnet Log_Events: each buffer holds 5760 time-stamped 32-bit entries
(User configures which 3 data points are stored in these buffers)
User configurable logging interval
(When configured for a 15 minute interval, each buffer holds 60 days of data)
Continuous and Single Shot logging modes: user selectable
Data Outputs
