Ratings charts, Lb. tandem rating chart – Spicer Drive Axles Application Guidelines User Manual
Page 89
AXAG-0200 June 2009 89
Ratings Charts

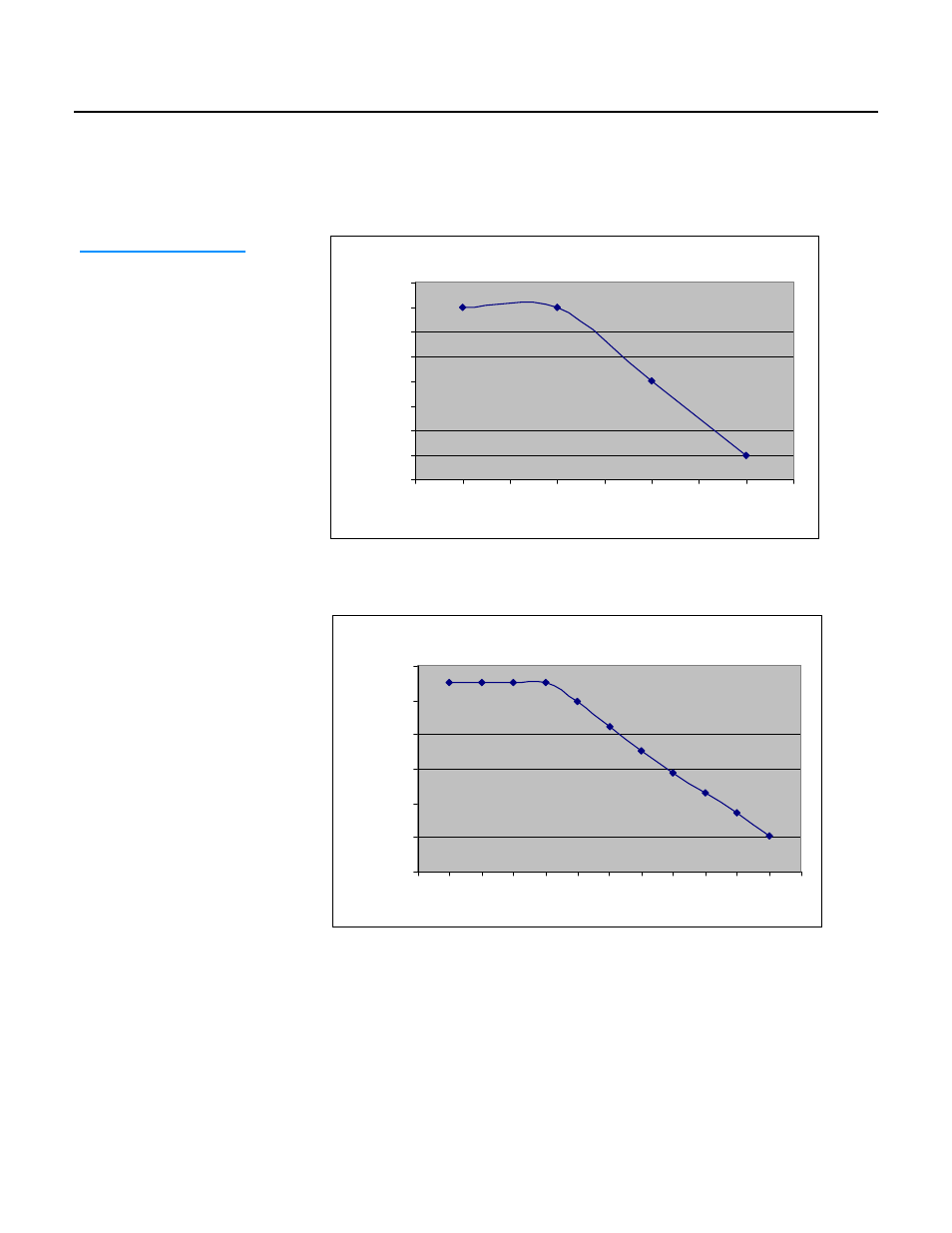

D404-(P), DST40-(P)
21.1 in. Max. Tire SLR; 35.8 in. Min. Spring Mounting Centers
33000
34000
35000
36000
37000
38000
39000
40000
41000
71.5
72
72.5
73
73.5
74
74.5
75
75.5
Track (in)
Gawr (lb)
40,000 lb Ratings
D405-(P), DST41-(P), DSH40-(P), D403-(P)
21.1 in. Max. Tire SLR; 35.8 in. Min. Spring Mounting Centers
29000
31000
33000
35000
37000
39000
41000
71
72
73
74
75
76
77
78
79
80
81
82
83
Track (in)
GAWR (lb)
