Page 75
AXAG-0200 June 2009 75

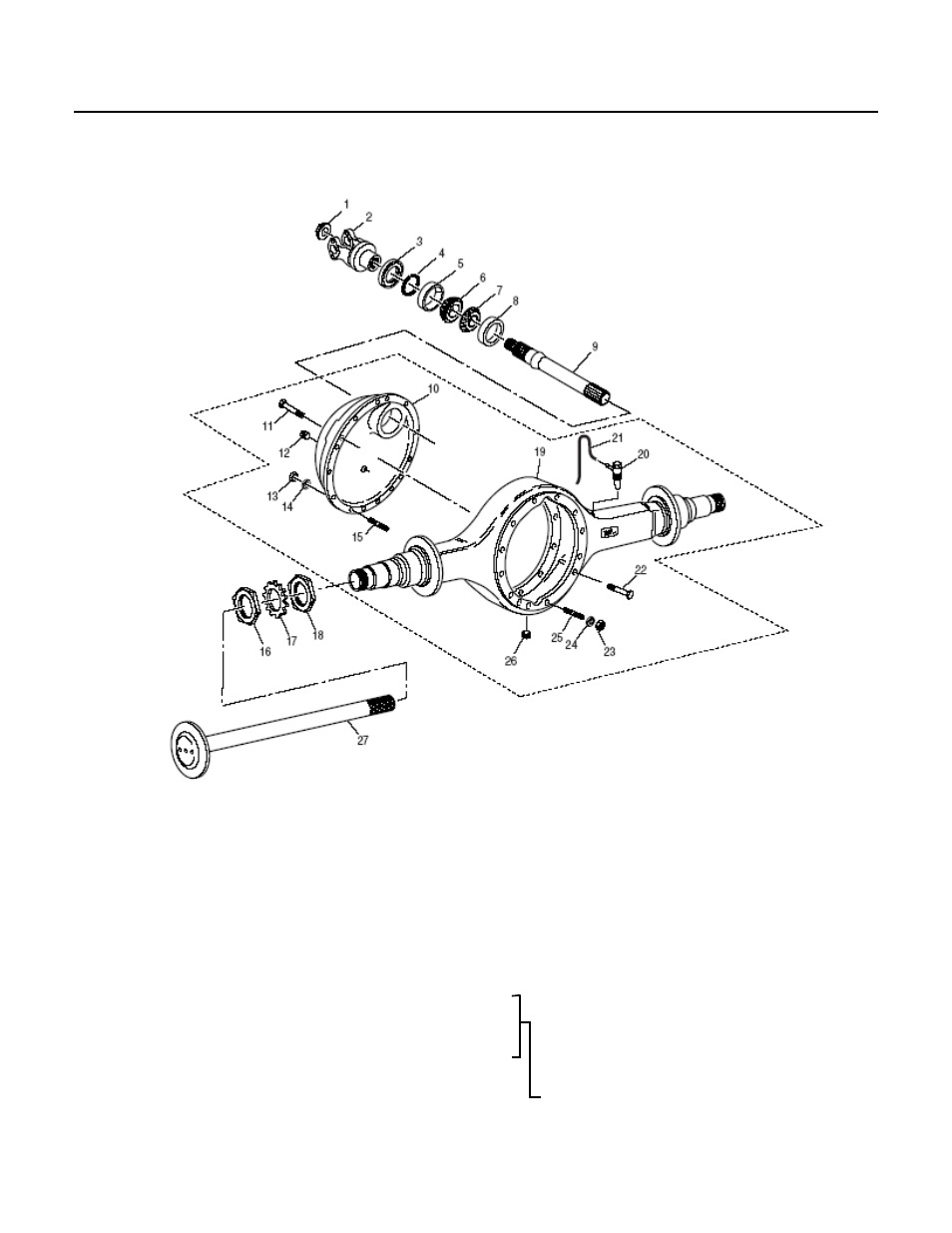

Nomenclature-General
Housing and Output Shaft Assembly
1 - Output shaft nut
2 - Output yoke
3 - Output seal
4 - Output shaft bearing snap ring
5 - Outer bearing cup
6 - Outer bearing cone
7 - Inner bearing cone
8 - Inner bearing cup
9 - Output shaft
10 - Rear cover
11 - Rear cover capsrew
12 - Fill plug
13 - Rear cover nut
14 - Washer
15 - Stud
16 - Spindle nut - outer
17 - Locking ring
18 - Spindle nut - inner
19 - Axle housing
20 - Breather
21 - Breather hose
22 - Carrier capscrew
23 - Nut
24 - Washer
25 - Stud
26 - Drain plug
27 - Axle shaft
* Varies - see page 80
