Spicer Single Drive Axles Service Manual: 34DS, 34RS, 38DS, 38RS, DS340, RS340, DS380, RS380, DS400, RS400, DS3 User Manual
Page 86

Differential Carrier Overhaul (Forward and Rear Axle)
83

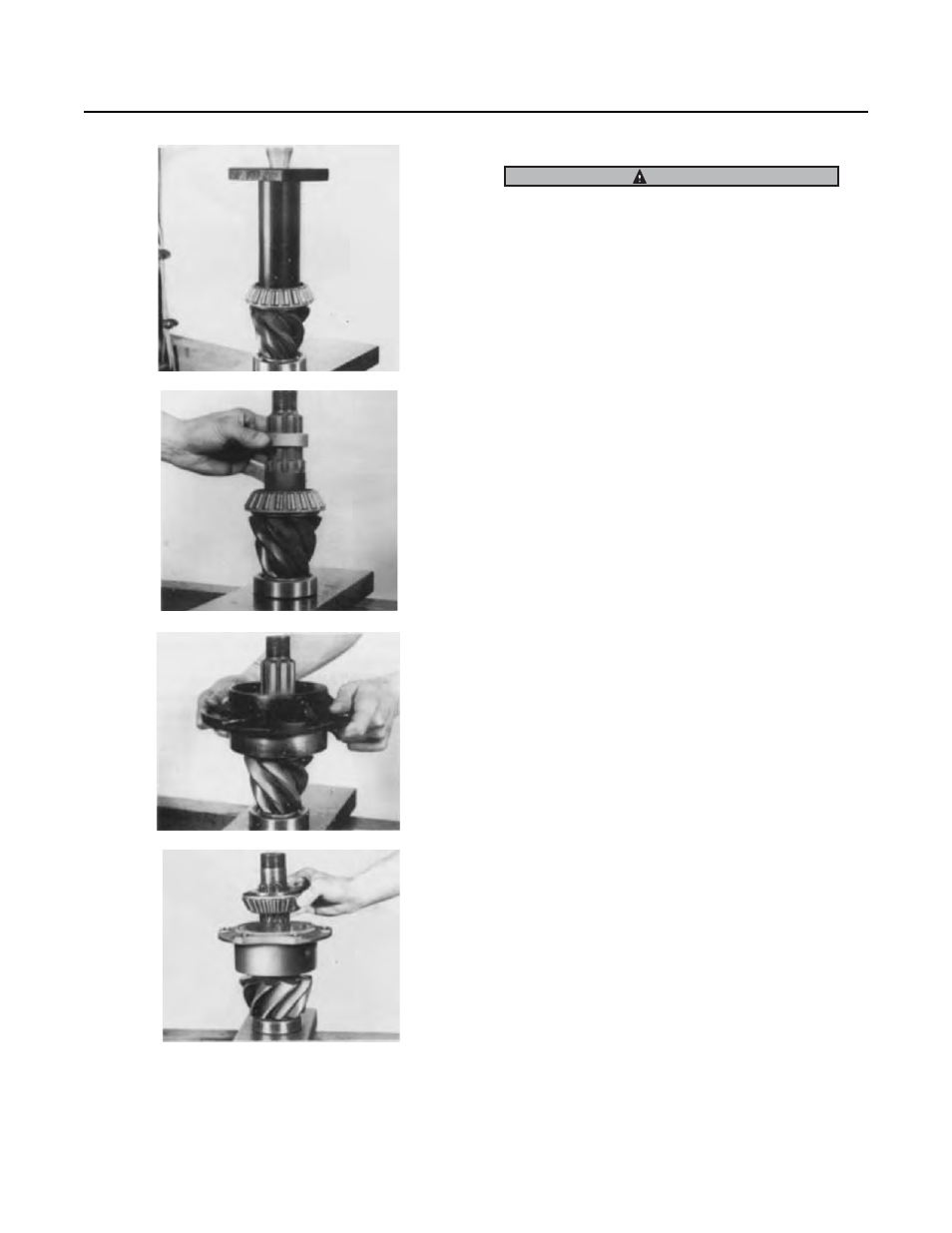

4.
Press inner bearing cone on pinion.
To prevent bearing damage, use suitable sleeve that only
contacts inner race of bearing cone.
5.
Install bearing spacer on pinion.
Note: When new gear set or pinion bearings are used, select
nominal size spacer (see chart page 20). If original
parts are used, use spacer removed during disassem-
bly.
6.
Install bearing cage on drive pinion.
7.
Install pinion outer bearing cone.
Note: At this stage in assembly, check pinion bearing pre-
load de-scribed in Adjustment Section of this manual
for "slip fit" outer pinion bearing. Rear Axle: Do not in-
stall oil seal until adjustment incomplete.
8.
Rear Axle Oil Seal and Yoke: Installation of these parts is the
same for "slip-fit" and "press-fit" bearings. See page 49 (step
8 and 9) for instructions.
Note: For "slip-fit" bearings, pinion may be temporarily re-
moved to simplify seal installation.
9.
Forward Axle Helical Gear and Nut: See page 53 for instruc-
tions.
