Power Divider Overhaul
56
Ser
vice Procedure
5.

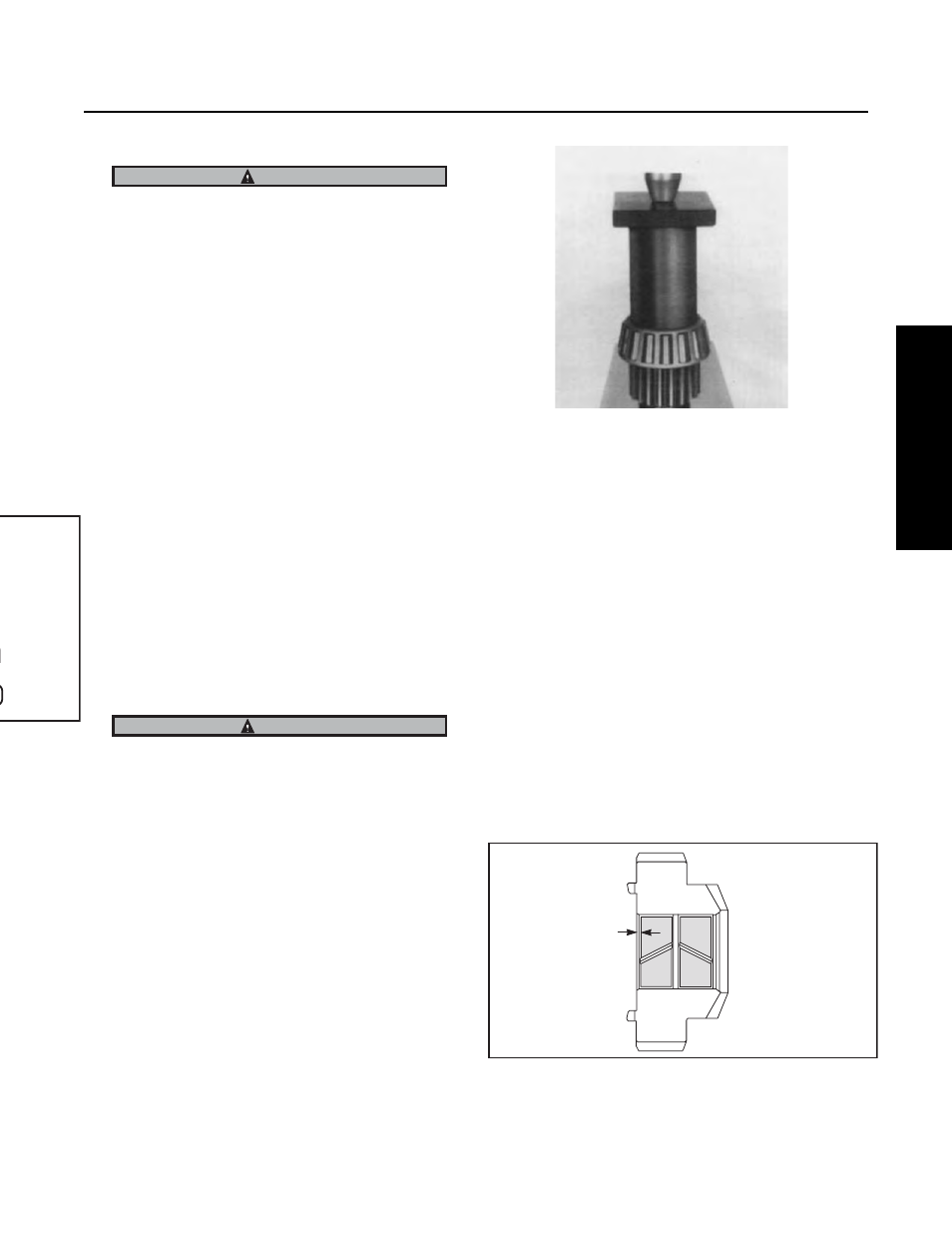

Press bearing cone on input shaft.
To prevent bearing damage, be careful to use
sleeve that only contacts the inner race of bear-
ing cone.
6.
SEAL INSTALLATION IMPORTANT: Before installing seal,
refer to page 13 for service information on Seals, Yokes &
Slingers.
Press oil seal in cover using a seal driver or suitable sleeve.
Note: Check carrier date code (see page 27, note before 5).
Units built before October 26, 1987 (87299), seal
should be flush with bottom of chamfer. Units built af-
ter October 26, 1987 (87299), seal should be installed
until 3/32" deeper than bottom of chamfer.
Press bearing cup in input bearing cover.
For correct cup installation, use appropriate sleeve. Take
care to make sure cup is not cocked and is firmly seated
all around.
7.
Install bronze bushings in helical-side gear.
Note: Helical Gears made after 1/3/95 have a "step" at the
end of Inner Bore. Bushings must reinstalled from the
Curvic Tooth side, inward towards this step. Press
flush against the shoulder of the step.
IMPORTANT
hen correctly
stalled, seal
ould be flush
th bottom of
amfer
IMPORTANT
1/32"
