Power Divider Replacement
40
Ser
vice Procedure
Power Divider Replacement (with differential carrier assembled to axle housing)
Special Instructions
The power divider can be replaced with the axle assembly in or out of chassis and with differential carrier assembled to axle hous-
ing.
During removal and installation, the power divider assembly must be supported as a safety precaution. During removal or
installation, the lnter-axle differential may fall from carrier. Exert caution to prevent damage or injury.
Procedure - Removing and Installing Power Divider
1.
With axle out of chassis, use chain hoist. Fasten chain to input yoke to remove power divider.
Note: Lifting mechanism may create nicks and burrs on input yoke. Remove if present,
2.
With axle installed in chassis, use a transmission jack or a chain hoist and a sling. Wrap sling strap around power divider and
attach to chain hoist hook as shown in drawings.

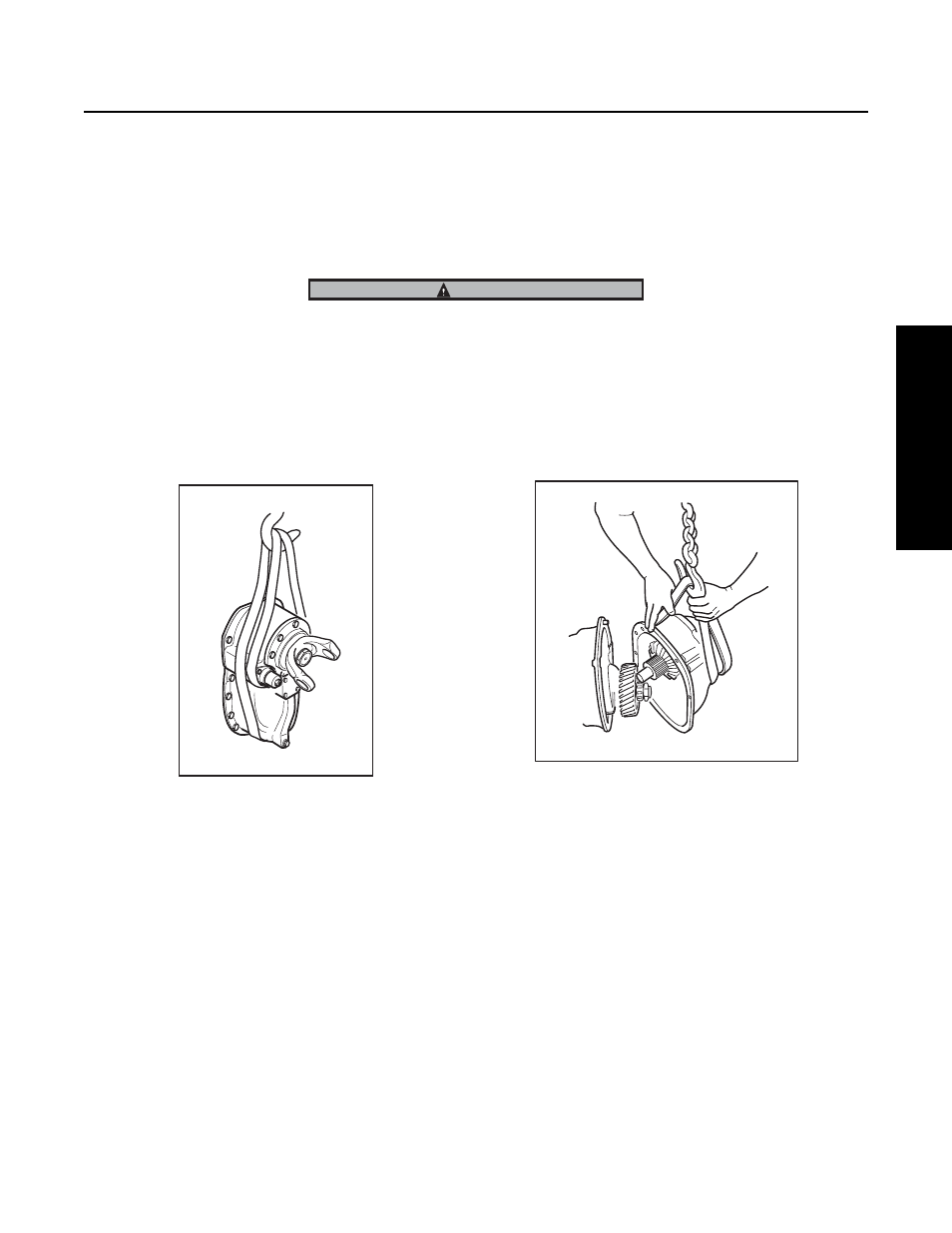

Removing Power Divider with Chain Hoist and Sling
