Page 50

Power Divider Overhaul
47
Disassemble Power Divider Cover

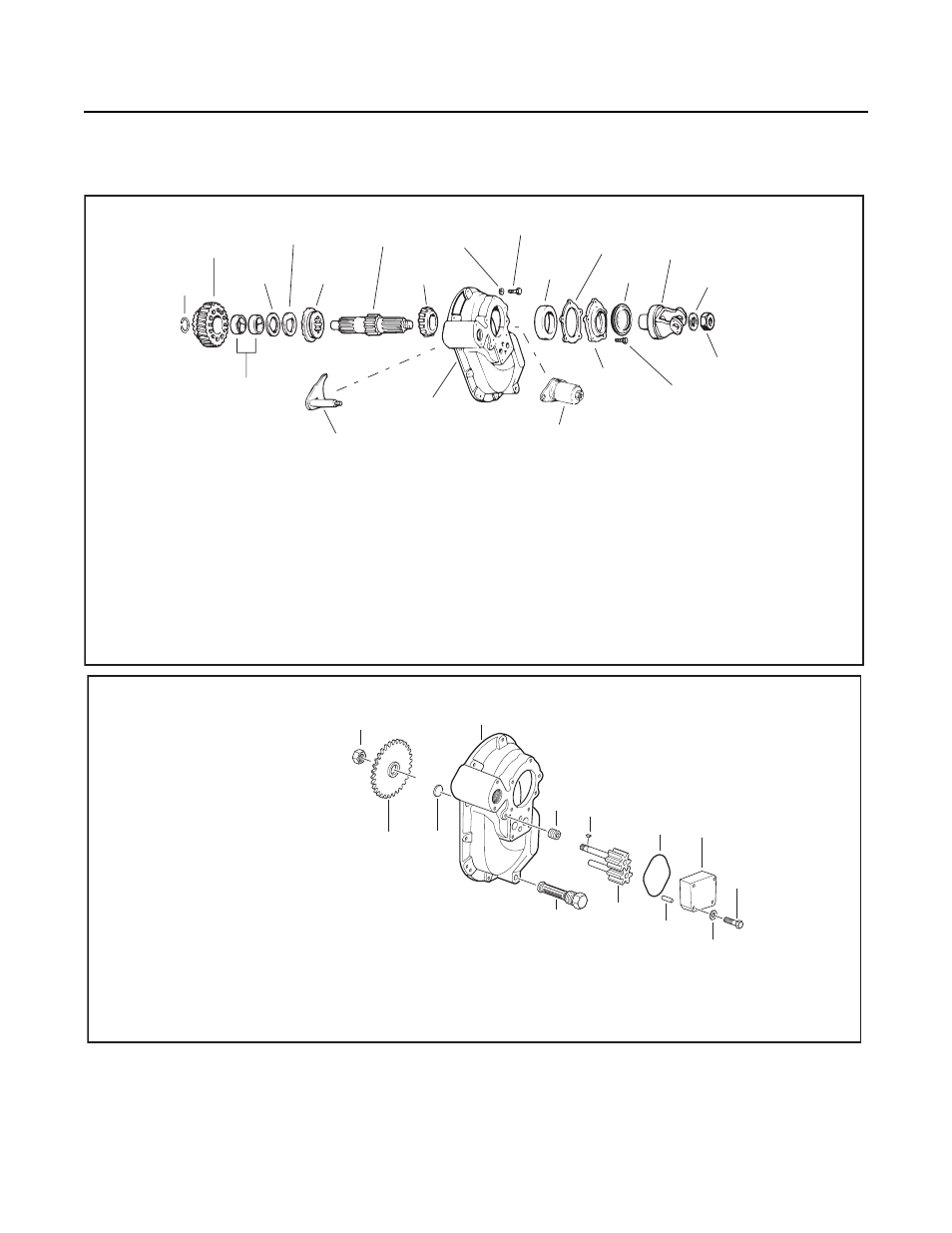

Power Divider Cover and Input Shaft (without Lube Pump)
1
2
21
3
4
5
6
7
19
8
9
16
13
10
11
17
12
14
15
18
20
1
Snap ring
2
Helical side gear
3
Thrust washer
4
D washer
5
Lockout sliding clutch
6
Input shaft
7
Bearing cone
8
Lockwasher
9
Capscrew
10
Bearing cup
11
Shim
12
Oil seal
13
Yoke
14
Flat washer
15
Nut
16
Capscrew
17
Bearing cover
18
Lockout unit (See lockout service
instructions for design variations
19
Power divider cover
20
Shift fork and push rod
21
Bushings
1
2
3
4
5
6
7
8
9
10
13
12
11
*NOTE: The drive shaft on early pump models is equipped with a woodruff key. On late pump models,
the key is eliminated. The drive shaft end has two machined flats and the drive gear mounting hole is
shaped to accommodate these flats.
1
Lock nut
2
Power divider cover
3
Pipe plug
4
Woodruff key*
5
O-ring
6
Pump cover
7
Capscrew
8
Lockwasher
9
Dowel pin
10
Pump gears
11
Magnetic strainer
12
Expansion plug
13
Pump drive gear
