Power divider overhaul – Spicer Single Drive Axles Service Manual: 34DS, 34RS, 38DS, 38RS, DS340, RS340, DS380, RS380, DS400, RS400, DS3 User Manual
Page 48

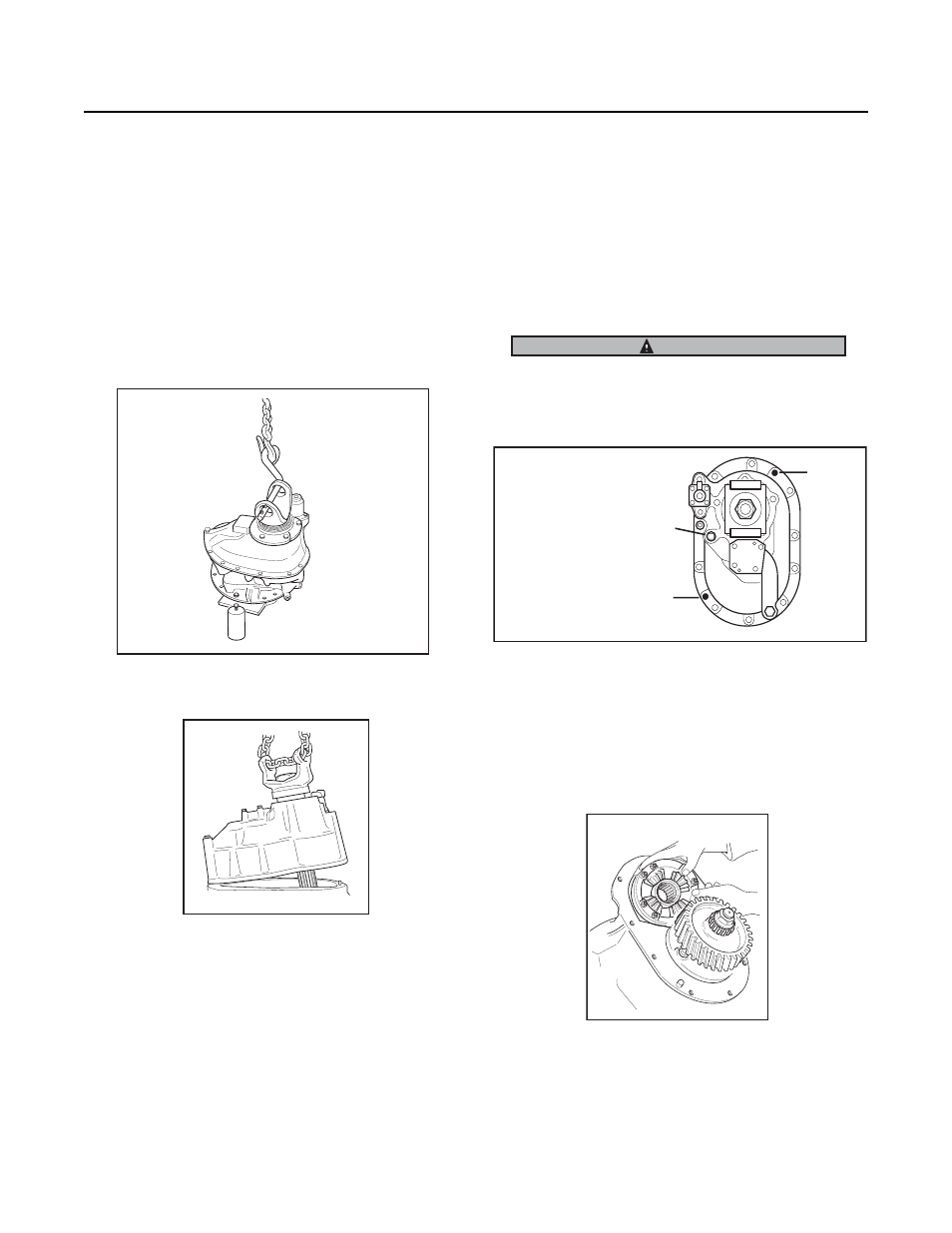

Power Divider Overhaul
45
Remove Power Divider from Differential Carrier (with carrier removed from axle housing)
Special Instructions
Note: It is assumed that the differential carrier and power divider assembly have been removed from axle housing prior to starting
the following procedures:
Procedure -
1.
Mount differential carrier in repair stand. Loosen input
shaft nut.
2.
Remove power divider cover cap screws and lock wash-
ers.
During removal of power divider, the lnter-axle differ-
ential may fall off input shaft from differential carrier.
Exert caution to prevent damage or injury.
3.
Attach chain hoist to input yoke and lift power divider off
carrier, If power divider does not separate easily, strike the
cover near the dowel pin locations with a mallet (see illus-
tration).
Note: Lifting mechanism may create nicks or burrs on in-
put yoke. Remove if present.
CAUTION
Dowel Pin
Dowel Pin
Socket Head
Capscrew
Power Divider Cover
Dowel Pin Location
