Page 55

Power Divider Overhaul
52
Ser
vice Procedure
Assemble Output Shaft
Special Instructions
Lubricate parts with gear lube during assembly.
Procedure -
1.

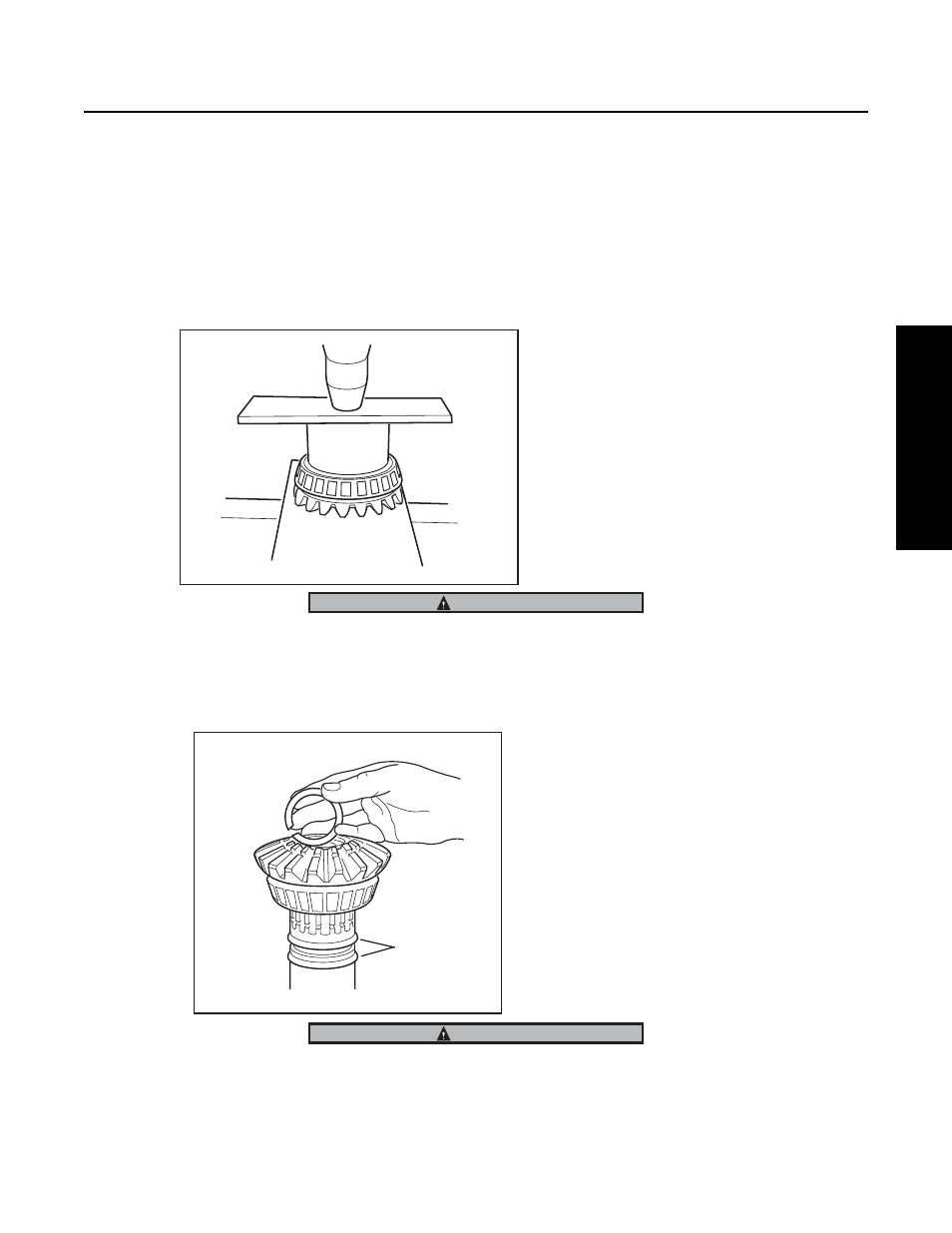

Press bearing cone on output shaft side gear.
Provide protection against possible gear teeth damage during press operation.
2.
Mount output shaft in vise. Lubricate and install "O" rings. If removed, install bushing in end of output shaft. (NOTE 1)
3.
If removed, install inner snap ring on shaft, then install side gear and bearing cone assembly, and outer snap ring.
SNAP RING IS SPRING STEEL AND MAY POP OFF. WEAR SAFETY GLASSES WHEN INSTALLING.
Note: Late Model Axles may be equipped with a spring and thrust button mounted between the input shaft and output shaft
(see page 54).
IMPORTANT
O-rings
WARNING
