CKW Relay Option Kit EN-7

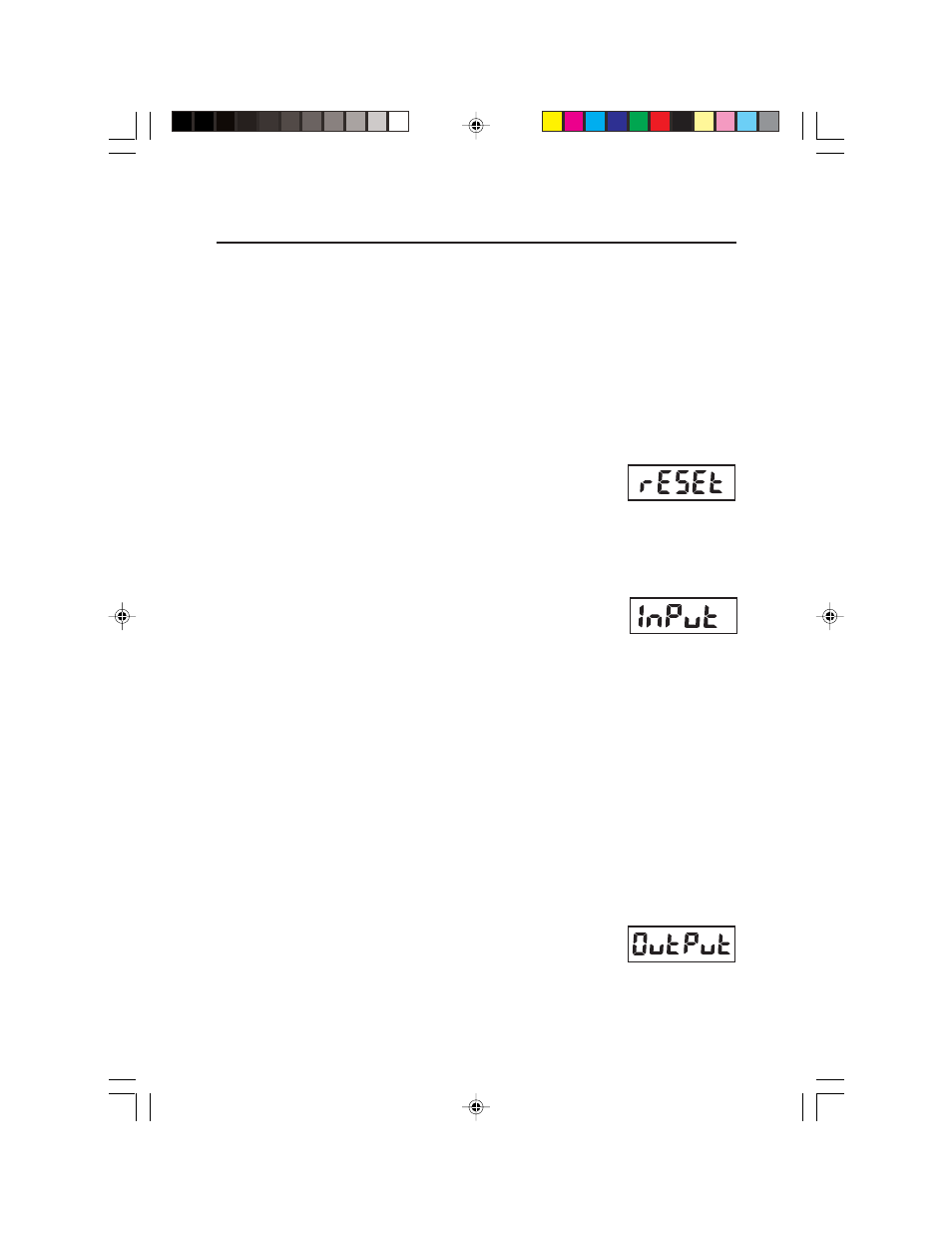

Reset
Allows resetting the current menu to factory defaults.
NOTE: Factory default settings are shown in bold.
Selections are: No, Yes.
External Input (INPUT)
Allows selection of a function to be controlled by an optional
external input device such as a foot switch. An external input
device would be connected to J7 of the Main PC board.
Only the two menu selections related to Relay operation are listed below:
= Start-Stop (S-S*) = The first input signal enables the output relay
operation, (Start). The second signal disables the relay operation,
(Stop).
= Tare-Start-Stop (T-S-S*) = The first input signal initiates a Tare
function. The second signal enables the output relay operation,(Start).
The third input signal disables the relay operation, (Stop).
*NOTE: The Start function will enable the relay operation even if the bar graph is
not currently showing the under condition near a weight value of zero.
s-s
t-s-s
Relay Output (OUTPUT)
Allows the configuration of relay output parameters.
Selections are: Type, Sequence, Contact.
Menu Settings (Cont.)
In general, menus are entered and menu items are selected by pressing the “Yes”
navigation button*. Menus are skipped and menu items are rejected by pressing
the “No” navigation button*.
* The navigation function of each button is shown with a diagonal line to the
function name.
