EN-6

CKW Serial Interface Option Kit

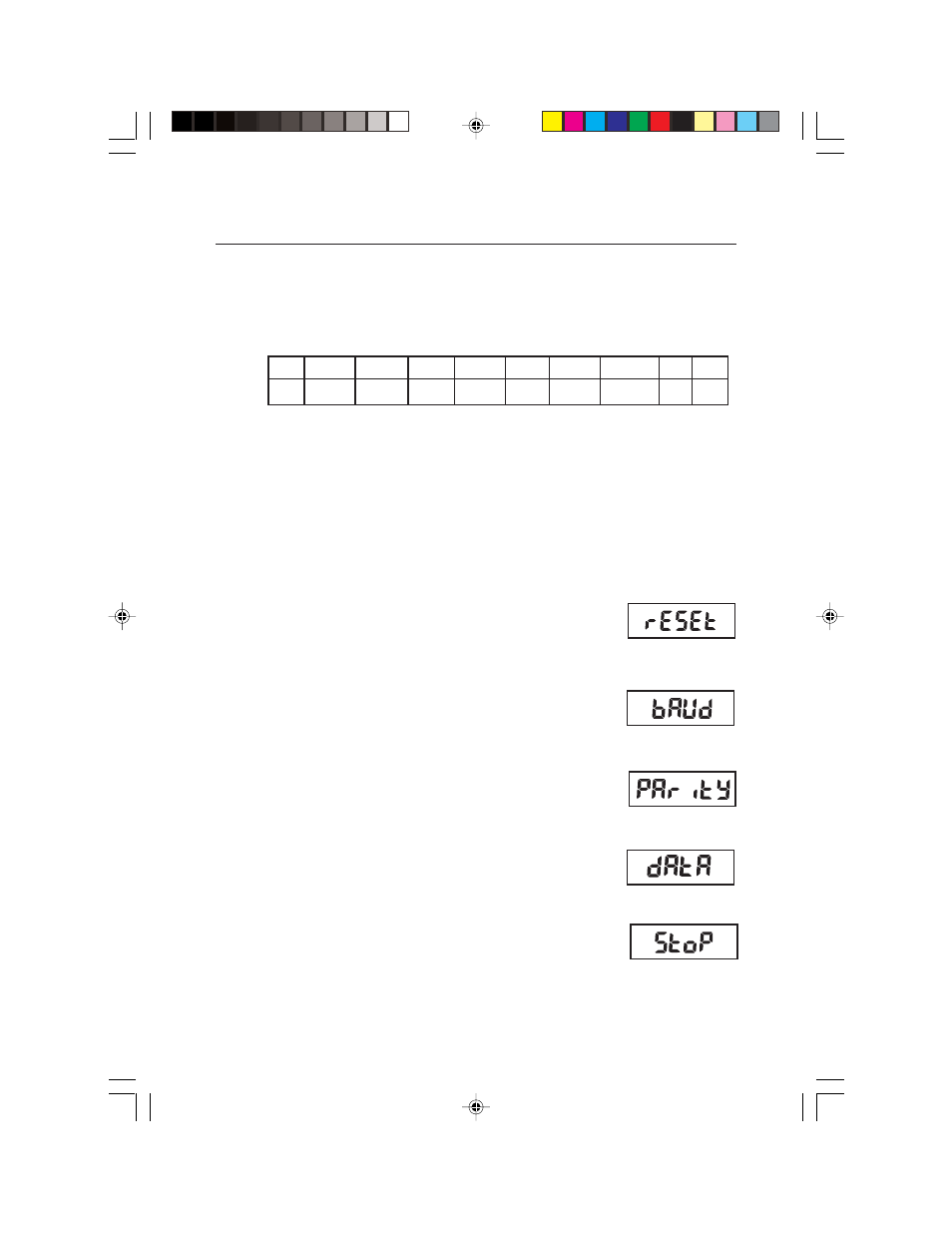

Menu Settings (Cont.)

Only commands shown in Table 1, Serial Interface Command Table, are
acknowledged by the indicator. The default serial output format from the RS485
interface is shown as follows:

Definitions: “@”:

The “@” character and 2 digit address are automatically
added when a RS485 address is enabled.

Address: A 2 digit number from 00 to 99.
Polarity:

“-” sign if negative, blank if positive.

Weight:

Up to 6 digits and 1 decimal, leading zero blanking.

Units:

Up to 5 characters.

Stability: “?” character is printed if not stable, blank if stable.

Reset

Used to reset the Communication menu to factory
defaults. Selections are: No, Yes.

Baud Rate

Used to define Baud rate. Selections are:
300, 600, 1200, 2400, 4800, 9600 or 19200.....

Parity

Used to define parity. Selections are:
None, Odd or Even.

Data Length

Used to define data length. Selections are:
7 or 8.

Stop Bit

Used define the number of stop bits. Selections are: 1 or 2.

ield:

@ Address Polarity Space Weight Space Units

Stability CR LF

Length:

1 2 1
