IPDirector Version 5.9 – User Manual – Part 4: Ingest
EVS Broadcast Equipment – January 2011
Issue 5.9.B
9
2.2.2 O
VERVIEW OF THE
I
NGEST
S
CHEDULER WINDOW
I
NGEST
S
CHEDULER
O
UTLINE

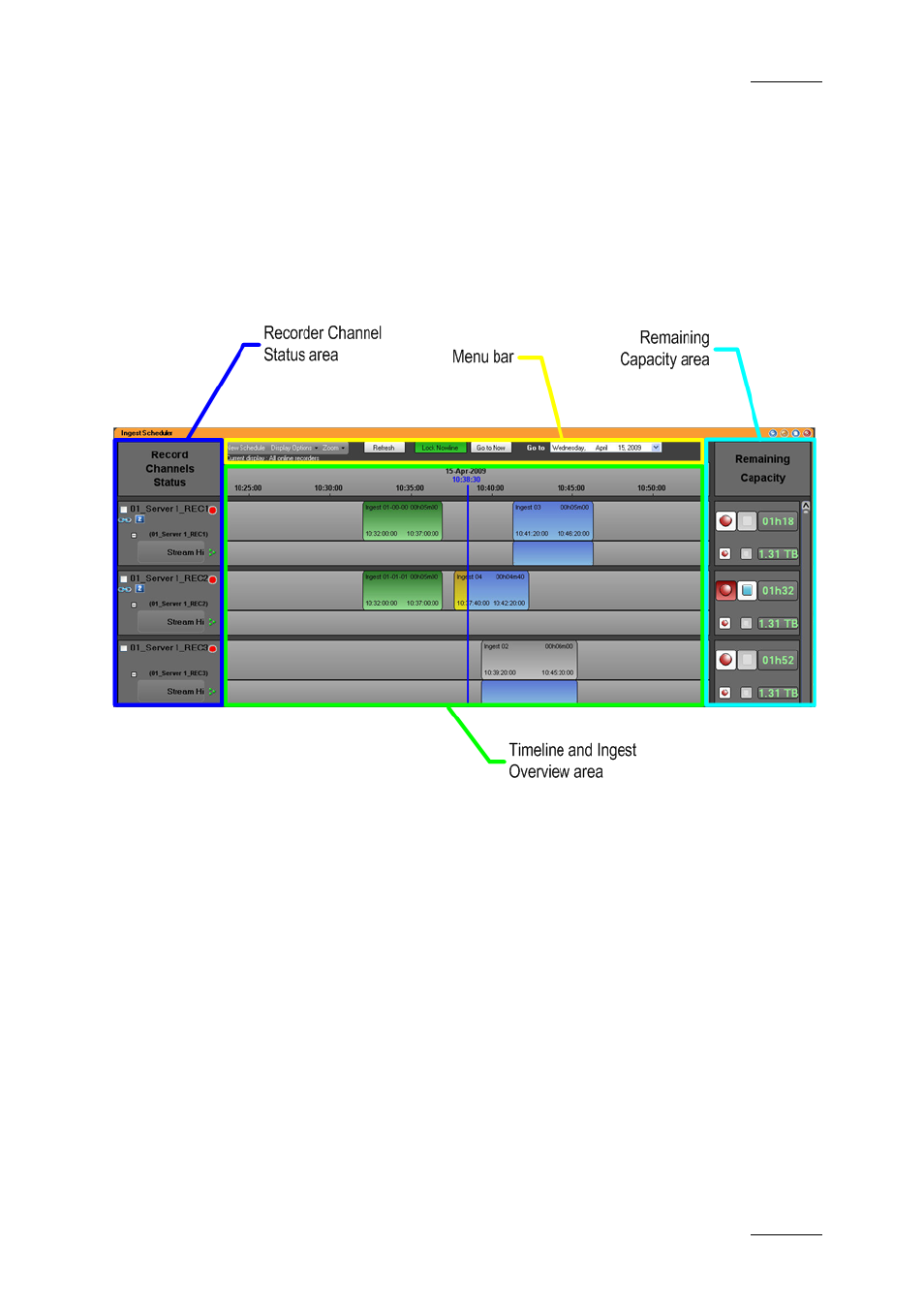

The main Ingest Scheduler window contains the main areas highlighted in the
screenshot below:
M
ENU BAR
This area, highlighted in yellow on the above outline, provides the basics
functions to schedule an ingest and to move to a specific date. It can be separated
into three parts:
• New Schedule button
• Configuration options: Display Options, Zoom.
• Current Display filter: text line describing the recorders and streams to be
displayed as selected in the Display options.
• Timeline display options: Lock Nowline, Go to Now, Go to [date].
R
ECORDER
C
HANNELS
S
TATUS
This area, highlighted in dark blue on the above outline, displays all the ingest
channels and streams configured through the Remote Installer.
