Example: 3D/1080p Dual Link 3REC + 1PLAY

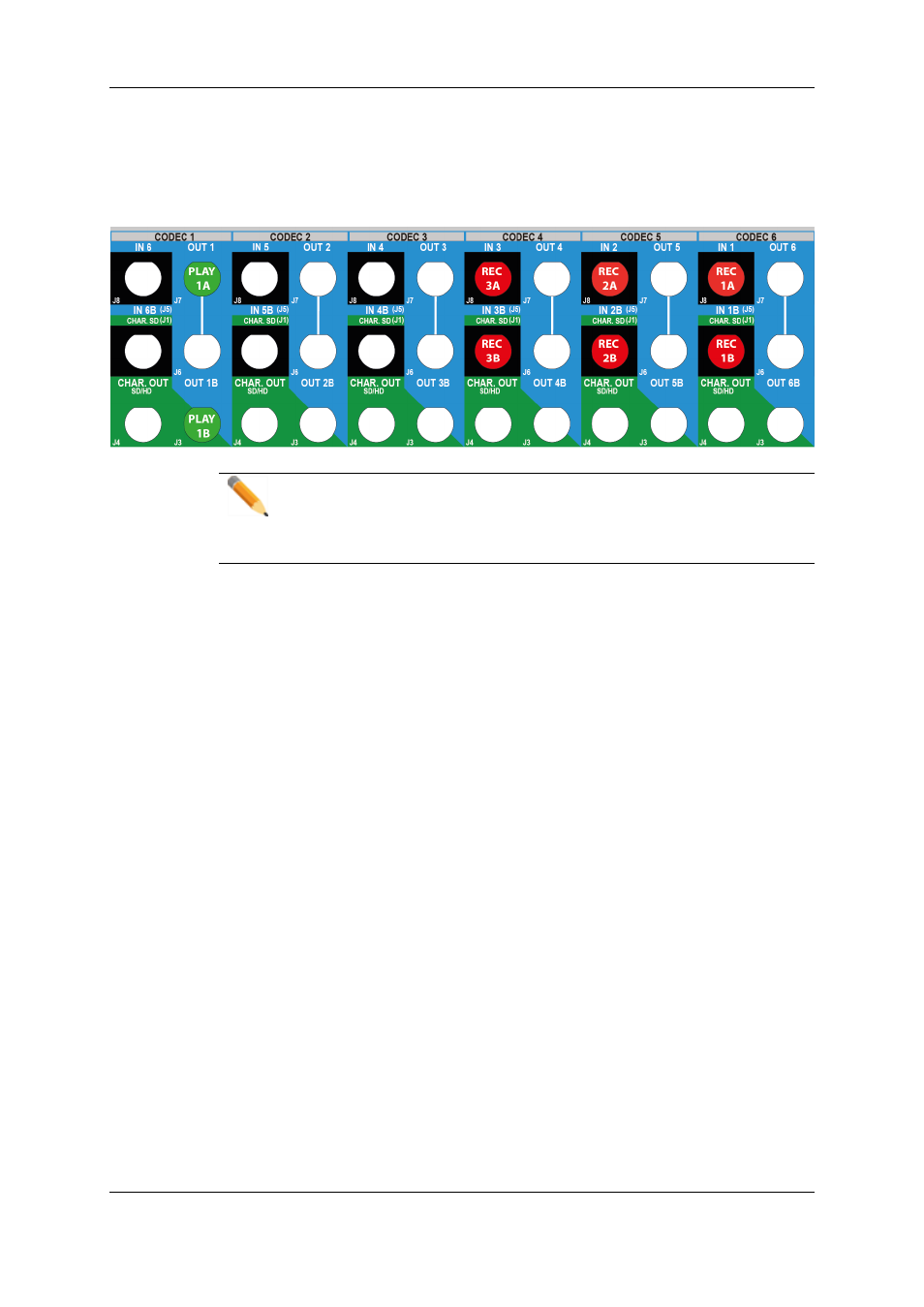

The BNC connectors to be used as recorder and play channels in a 3D or 1080p Dual Link
configuration 3REC + 1PLAY need to be cabled as shown below:

Note

In an equivalent configuration with a single link 3G interface, only the J8
connectors are cabled. However the primary and secondary links on the codec
module of the V3X board are both used.
