Timecode Insertion Settings

Introduction

The Timecode Insertion settings allow the management of VITC or ANC timecodes
channel by channel.

These fields are available in the following interfaces:

in the Multicam Configuration window, Channels tab, in the advanced display mode:

on page 7, 8 or 9 on the server-based application.

on page 1 on the web-based interface.

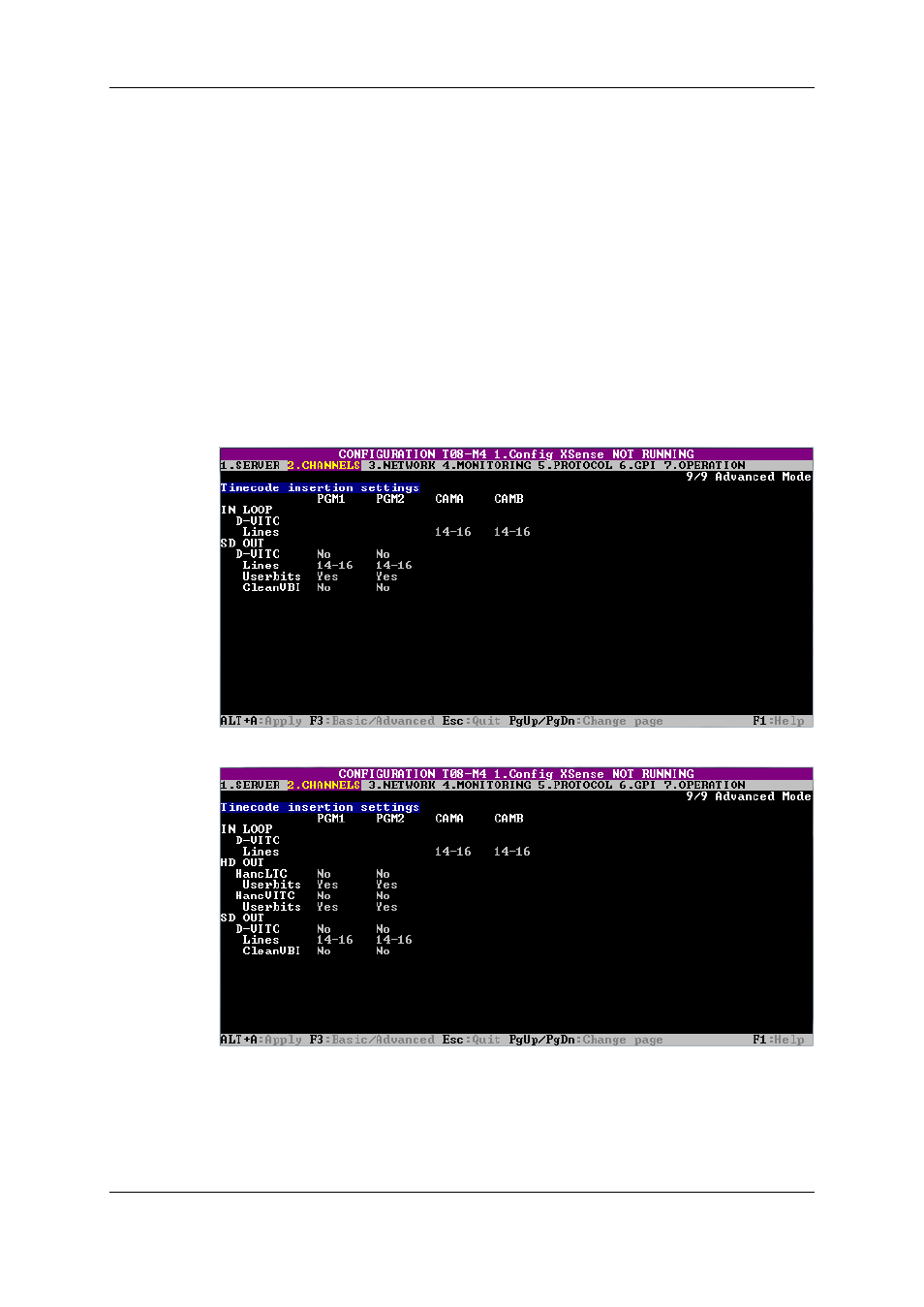

The following screenshot shows the Timecode Insertion settings in SD on page 9 of the
Channels tab in the server-based application:

The screenshot below shows the Timecode Insertion settings in HD.

123
