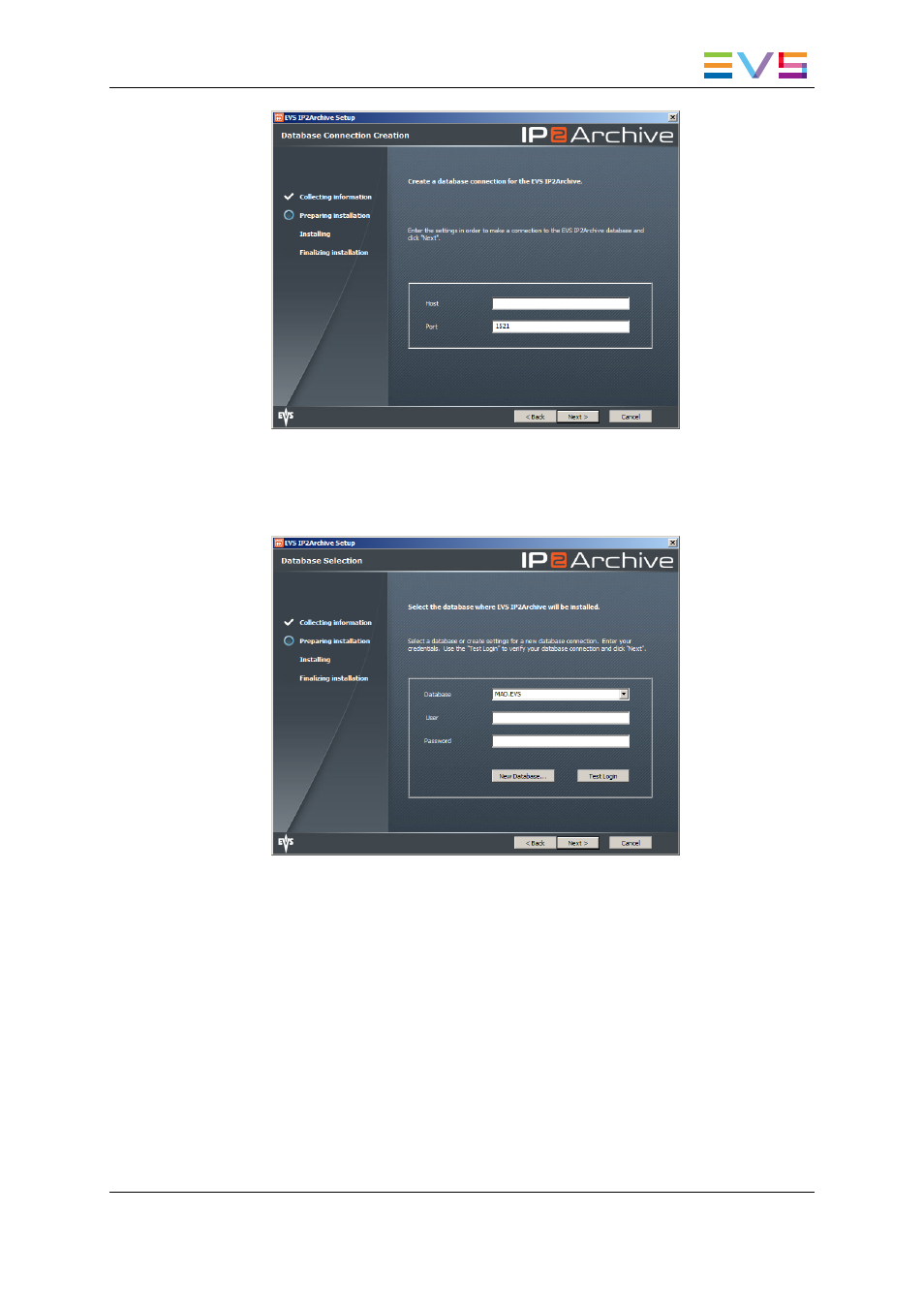

Enter the IP address of the database server. The default port number, i.e. 1521,
has already been entered. Click Next to continue.
◦ If the database client software has already been installed, the Database Selection
screen appears.
Select the database name from the drop-down list and enter the username and
password necessary to log onto the database. You can test the connection with
the database by clicking the Test Login button. Click Next to continue.
To add a new database, click the New Database button and enter the database
name (by default IP2A.EVS), the IP address and port number (by default 1521) of
the machine that hosts the database, and the service name (by default TOM). You
can test the connection with the database by clicking the Test Login button.
Click Next to continue.
IP2Archive - User Manual - Configurator Version 1.0
2. Installing the Application 5
