INSTALLING A NEW HARD DISK
The aim of the following procedure is to describe how to place and format a
new storage hard disk into an XF[2]. It is divided into three parts:
1. Mounting the Disk into the Carrier
2. Creating a Partition on the Storage Disk
3. Disabling the Disk Indexing
M
OUNTING THE
D
ISK INTO THE
C
ARRIER
1. Configure the hard disk in Master mode. For more details, see the
section ‘Hard Disk Configuration’, on page 182.

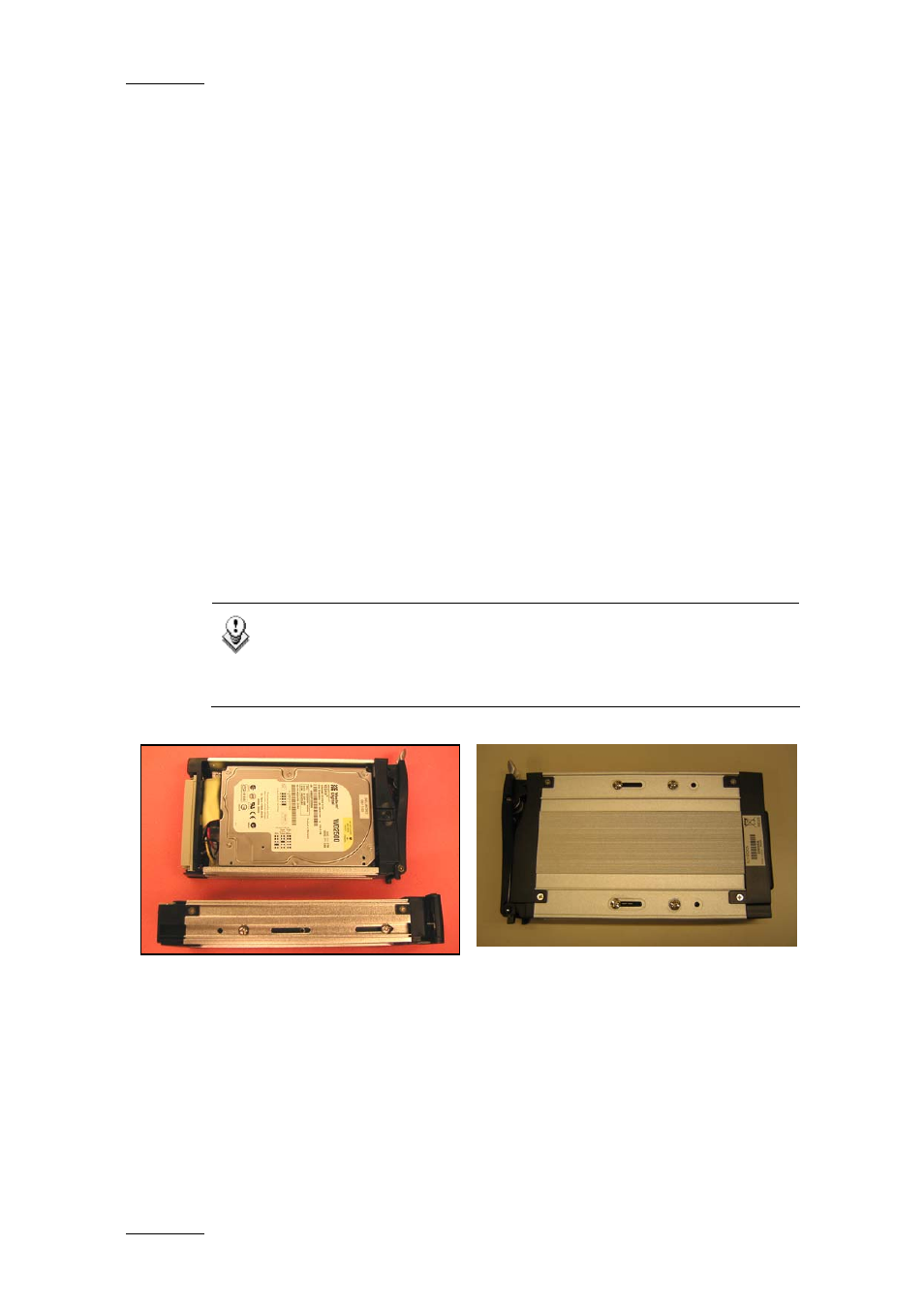

2. Connect the carrier internal IDE cable and place the hard disk into the
disk tray, fixing it with the four screws (either on the side or on the
underside of the canister depending on the model: see pictures below).
Note
EVS strongly recommends to apply some glue, like the Loxeal
Engineering Adhesive (medium thread locking), on the screw-
thread.
3. Place the disk tray cover, then insert it into the XF[2].
