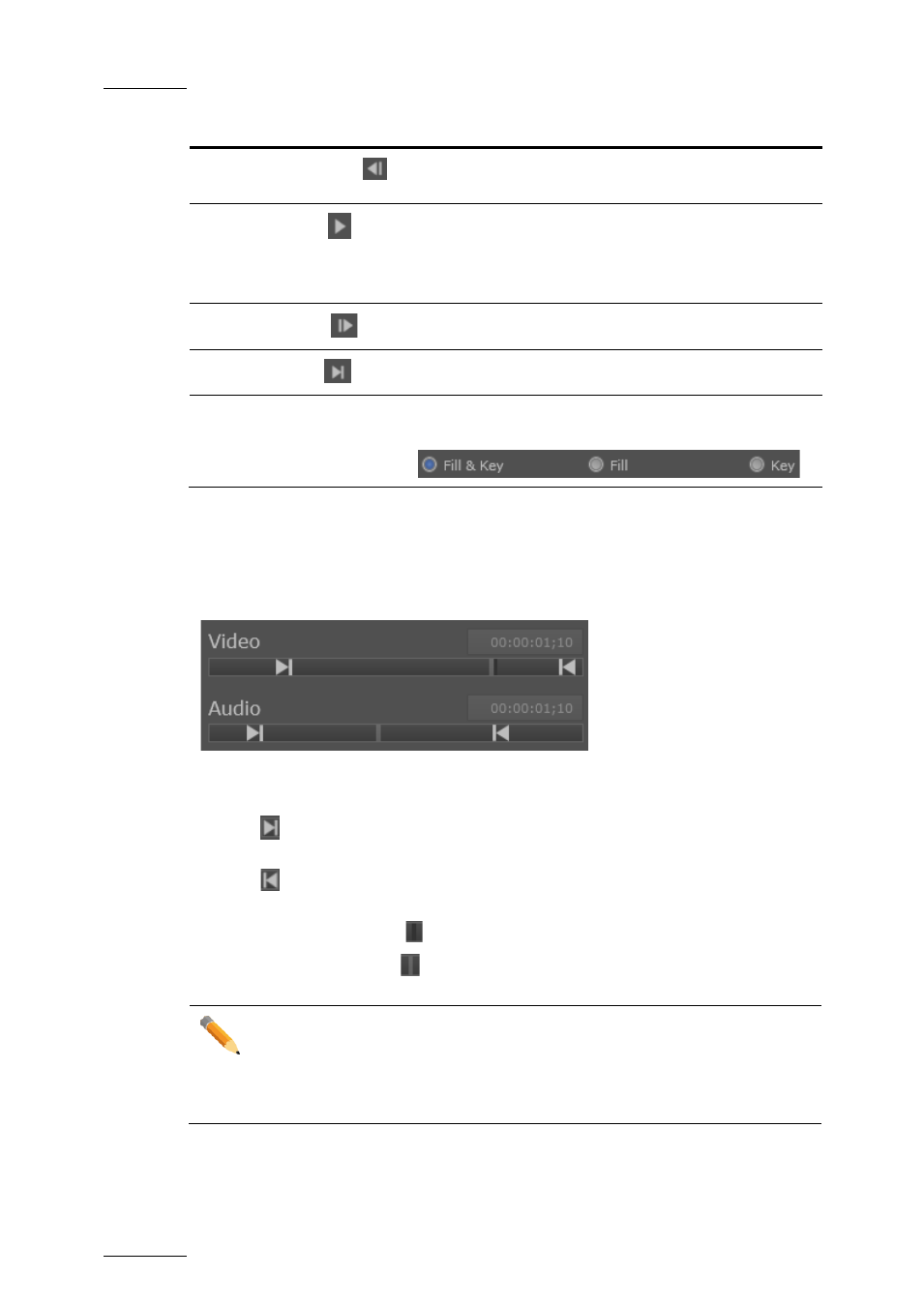

# Field/Button Description
5.
Previous Frame
Goes to the previous frame relative to the current
position.
6.
Play/Pause
Plays from or pauses at the current position. This is a
Play/Pause toggle button.
If you press this button at the end of the clip, the clip will
recue.
7.
Next Frame
Goes to the next frame relative to the current position.
8.
Go to OUT
Goes to the OUT point of the GX clip.
9. Video Track
Selection
Radio buttons that allow selecting which video element
you want to preview (fill, key or fill & key):
Video and Audio Bars
The video and audio bars represent the playback position in the corresponding raw
material.
The bars and the displayed elements have the following meaning:
• The bars represent the raw material.
• The sign represents the IN point. It will be positioned relative to the IN field value
in the raw material.
• The sign represents the OUT point. It will be positioned related to the OUT field
values (separate fields for audio and video) in the raw material.
• The black vertical marker represents the loop point.
• The gray vertical marker represents the current position in the raw material during
playback.
Note
If the GX clip contains a nested loop (the loop point does not start on the TC IN
point), the playback marker will move between the IN and OUT points for the
first pass. Then, for each nested loop, the marker will just move through the
area between the loop point and the OUT point.
