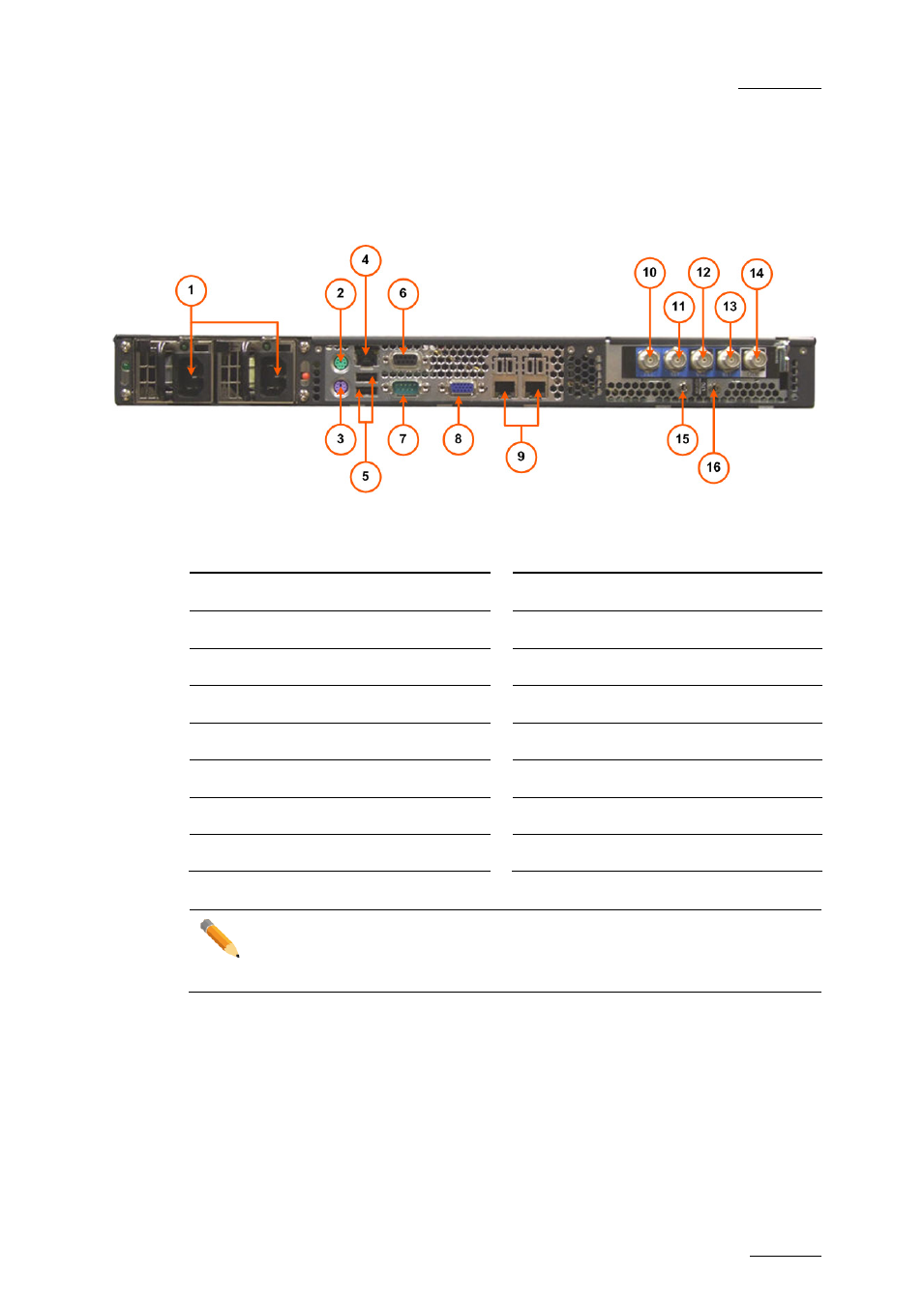

2.2.4 Rear Panel
The rear panel features the elements displayed in the picture, and specified in the table
below:
# Description # Description
1. Power supplies 9. Gigabit Ethernet connectors
2. Mouse connector 10. Fill BNC connector
3. Keyboard connector 11. Key BNC connector
4. n.a. 12. n.a
5. USB connector 13. n.a
6. RS422 connector 14. Genlock connector
7. n.a 15. n.a
8. VGA connector 16. n.a
Note
The two connectors labeled IN1 and IN2 (on the right of the Fill and Key
connectors) are not currently used.
