• Audio files selected to be copied to the Raw Materials drive
(Audio) OUT Field
The audio OUT field gives the timecode, on the audio raw material, at which the GX clip
should end.
The reference timecode (00:00:00:00) corresponds to the beginning of the audio raw
material.

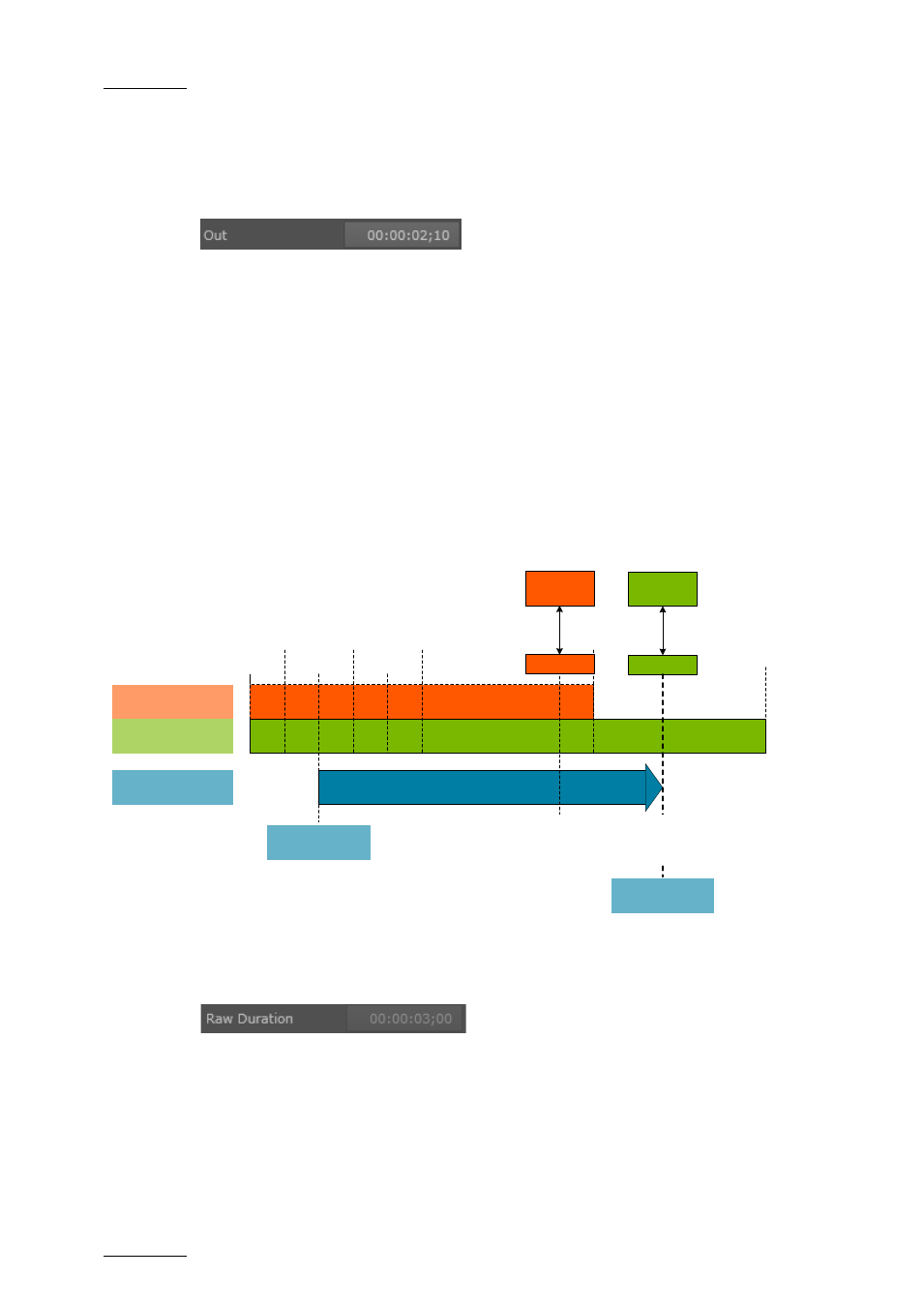

Example
In this example, the audio raw material used for the GX clip is 3 seconds. The IN field is
00:00:00:10. The audio OUT point defined for the GX clip is on TC 00:00:02:10 of the
corresponding raw material.
This means the audio track of the GX clip will be played out from TC 00:00:00:10 up to
TC 00:00:02:09 of the audio raw material.
In the example, the audio track defines the length of the GX clip since it is the longest
track.
Video Raw Material
00:00:00:00
00:00:00:05
00:00:00:10
00:00:00:15
00:00:00:20
00:00:01:00 00:00:02:00 00:00:03:00
GX Clip IN
00:00:00:00
GX Clip OUT
00:00:01:24
Audio Raw Material
GX Clip GX Clip Playout
00:00:01:20
OUT FIELD
(Video)
00:00:02:10
OUT FIELD
(Audio)
GX Clip
Audio OUT
00:00:01:24
GX Clip
Video OUT
00:00:01:09
(Audio) Raw Duration Field
The audio Raw Duration field gives the total duration of the audio raw material used in
the GX clip. This field is not editable.
This duration field does not take into account the following elements:
• the start timecode for the GX clip, defined in the IN field
• the end timecode for the audio track of the GX clip, defined with the audio OUT point
