GX server – Version 1.10 – User Manual

EVS Broadcast Equipment – September 2012

Issue

1.10.D

57

Loop Point Field

The

Loop Point field allows users to specify the timecode in the video raw material at

which the loop will start. The loop will always be performed from that point to the Video

OUT field.
The GX server will perform a nested loop if the loop point is set to anything other than the

IN frame.

Loop Recurrence Field

The

Loop Recurrence field allows users to specify how many times the loop defined in

the GX clip will be performed during playout.
When a loop recurrence is defined, the total duration of the GX clip specified below the

video display is automatically adapted.

Note
You will find an example on loops in the section 5.5.9 'GX Clip Duration and

Timecodes', on page 63.

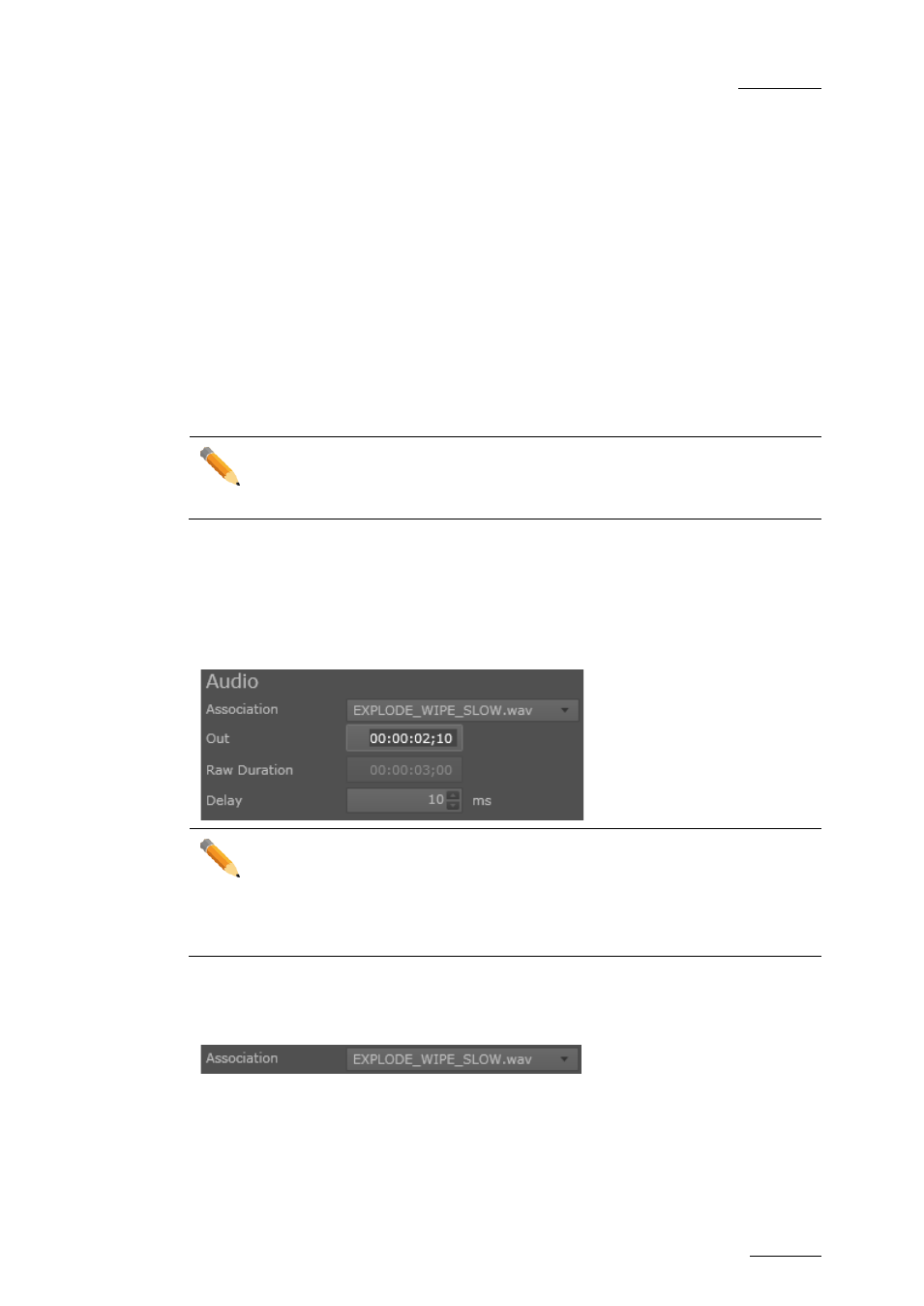

5.5.6 Audio Settings in the Edit GX Clips

Window

Note about the examples
The frame rate used in the examples below is 50i (25 f/sec).
The schemas in the examples show the field values as defined on the raw

materials, and the corresponding TC values of the GX clip that will be displayed

to external controllers.

(Audio) Association Field

The audio

Association field allows you to select the audio file to associate to the video

raw material.
The audio files available in the drop-down field are:

Audio files already copied to the Raw Materials drive
