Issue 2.13.D

XFile Version 2.13 – User Manual

EVS Broadcast Equipment – July 2010

46

3.4 USER INTERFACE

3.4.1 O

VERVIEW OF THE MAIN

W

INDOW

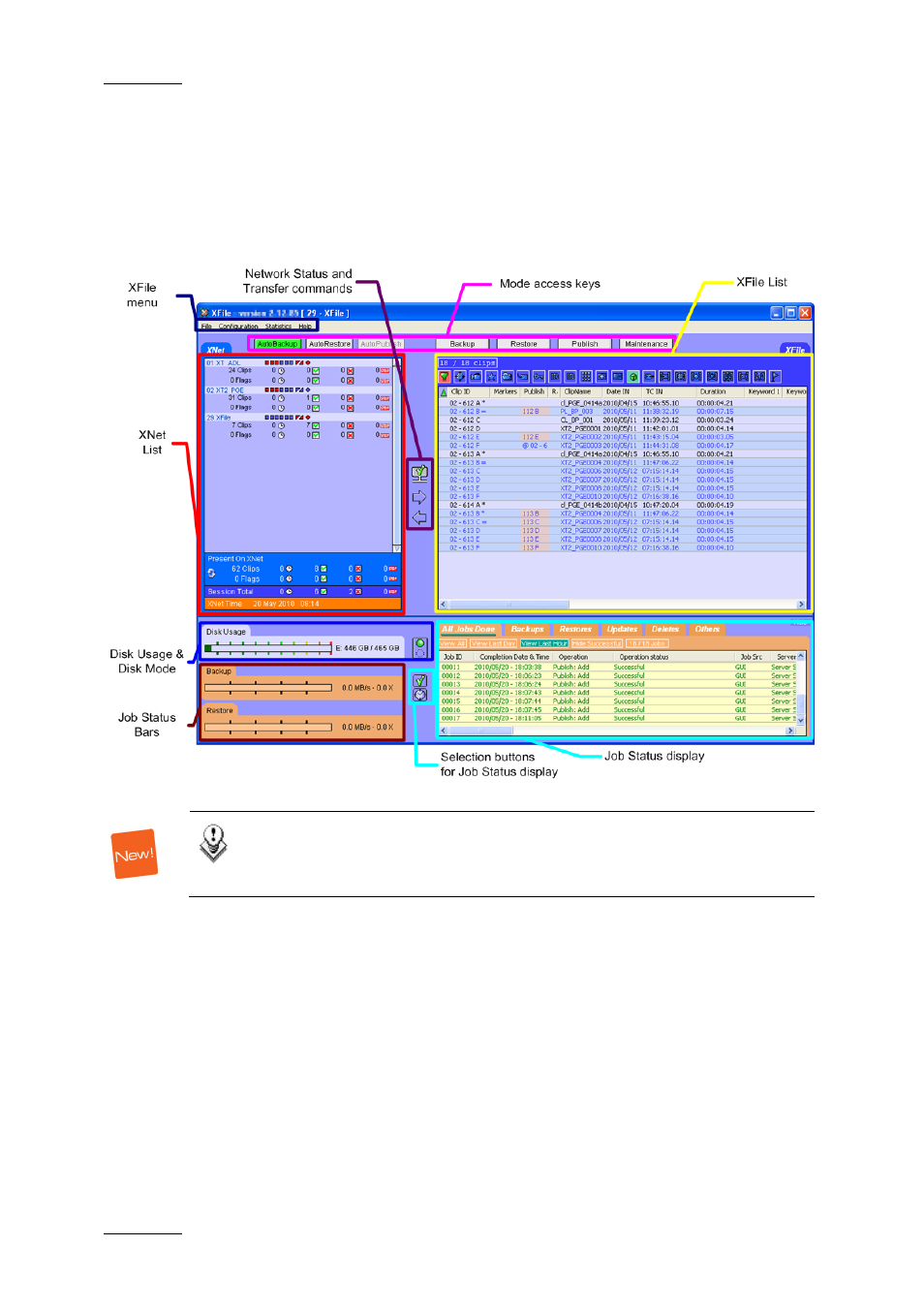

The screenshot below shows the various areas of the XFile main window.

Note

The AutoRestore and the AutoPublish modes can be activated from this

main window.


Most of the user interface elements are common to the different modes of XFile
use: Network Status, XFile List, Disk Usage, Disk Mode, Job Status Bars, Job
Status Display and Selection Buttons. They are described in the current section.

User interface elements specific to each mode are described in the corresponding
sections: Transfer commands, XNet List.
