XFile Version 2.13 – User Manual
EVS Broadcast Equipment – July 2010
Issue 2.13.D
117
4.2 INFORMATION & MENU AREA
The Information & Menu area displays the elements described below:
4.2.1 S
CHEDULER AND
Q
UICK
S
TART
B
UTTONS

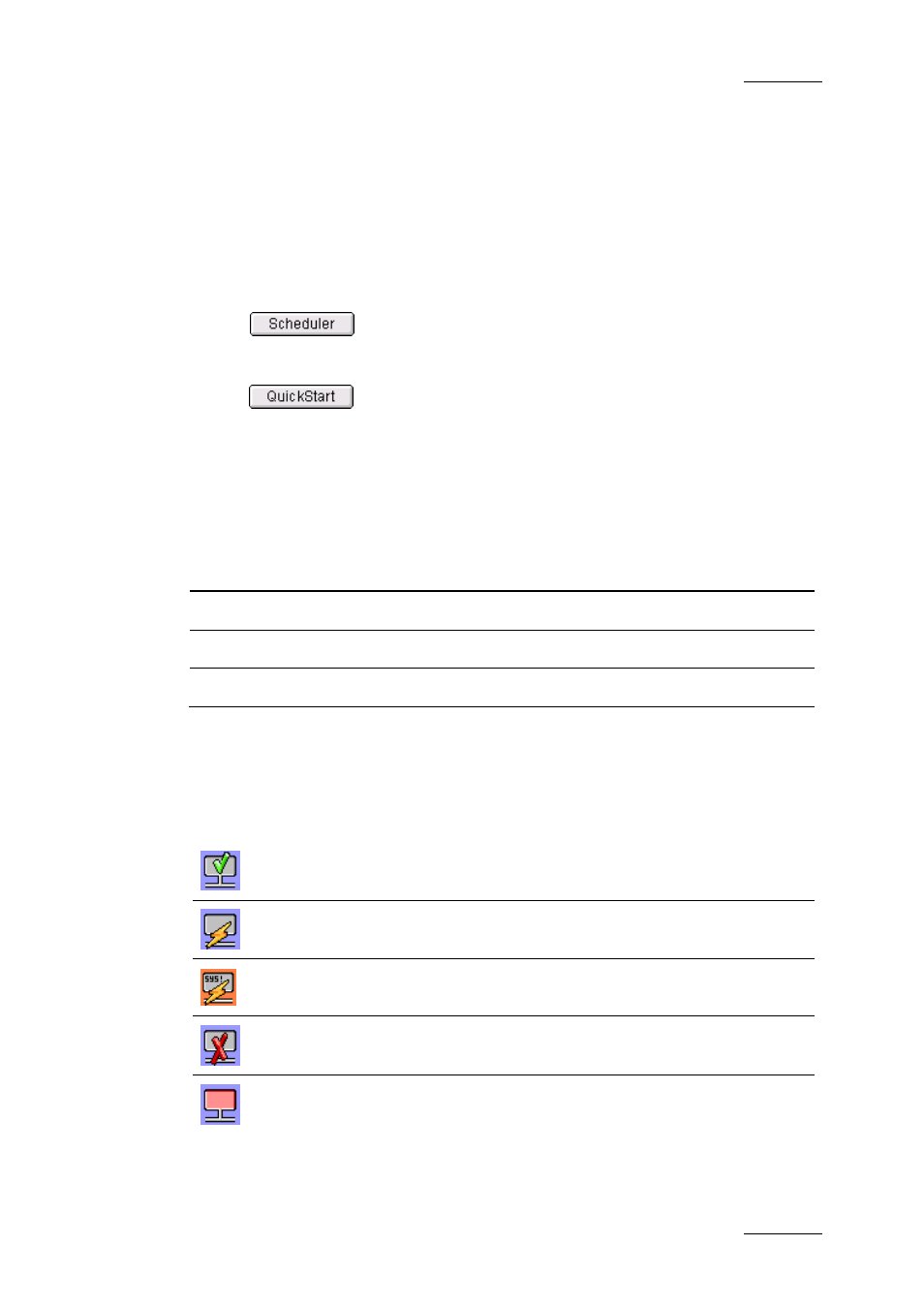

Press to activate the Scheduler Mode. In this mode, the system
acts automatically and backs up all files/clips according to the jobs defined via the
Edit menu and shown in the time grid.
Press to activate the QuickStart mode. You can access this mode
by clicking the blue bullet next to the EVS video server name. In this mode, you
can start and stop manually the backup of one or several trains recorded on one
or several EVS video server(s) without having to create a job.
The background colour of the Scheduler button or QuickStart button informs on
the status of the mode:
Button colour Meaning
Grey Inactive status
Green Active status
Red Recording status
4.2.2 N
ETWORK
S
TATUS
The icon displayed in the upper side of the screen notices the current status of
XNet:
Connection to XNet is successfully done
XStream is connecting
The video parameters are not correct. Please check the Network
parameters into the System configuration window
Connection to XNet failed
Local hardware failure has been detected
