INSTALLING A NEW HARD DISK
The aim of the following procedure is to describe how to place and format a new
storage hard disk into an XF[2]. It is divided into three parts:
1. Mounting the Disk into the Carrier
2. Creating a Partition on the Storage Disk
3. Disabling the Disk Indexing
M
OUNTING THE
D
ISK INTO THE
C
ARRIER
1. Configure the hard disk in Master mode. For more details, see the section
‘Hard Disk Configuration’, on page 179.
2. Connect the carrier internal IDE cable and place the hard disk into the disk
tray, fixing it with the four screws (either on the side or on the underside of

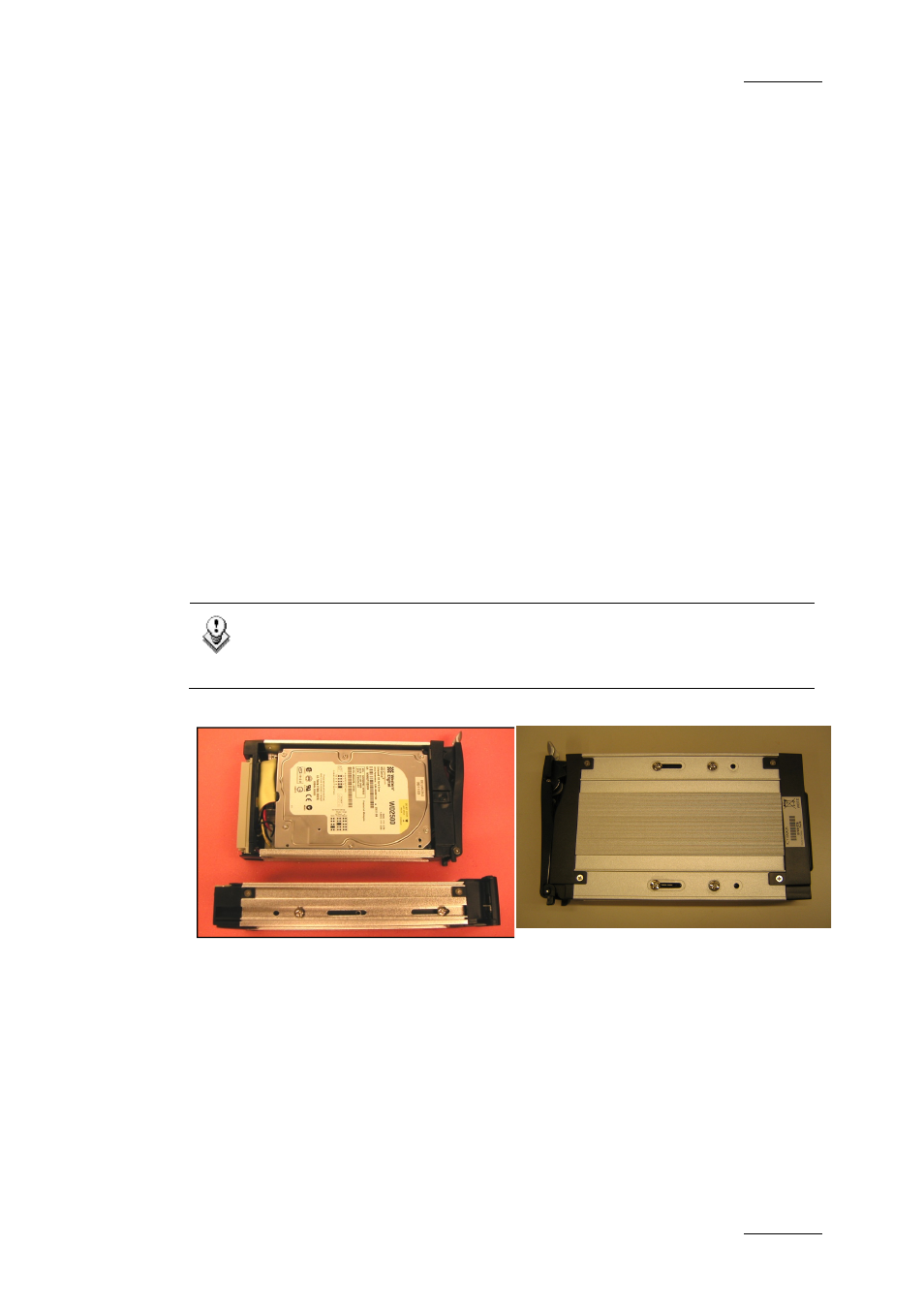

the canister depending on the model: see pictures below).
Note
EVS strongly recommends to apply some glue, like the Loxeal
Engineering Adhesive (medium thread locking), on the screw-thread.
3. Place the disk tray cover, then insert it into the XF[2].
