Issue 2.13.D XFile Version 2.13 – User Manual
EVS Broadcast Equipment – July 2010
142
4.8.6 C
HECK
T
IMECODE
I
NTEGRITY
Every 5 minutes, the application automatically checks the time code integrity, i.e.
it checks whether time code jumps have occurred in the record trains of EVS video
servers.
The user can also perform this check manually on a record train selected in the
time grid.
In this case, the check starts from the head of the record train back towards the
beginning of the record train. The integrity analysis lasts no longer than the time
defined in the Default Duration of Analysis setting (see XStream System
Configuration window, Advanced Parameters tab in the section ‘Check Timecode
Integrity’, on page 131).

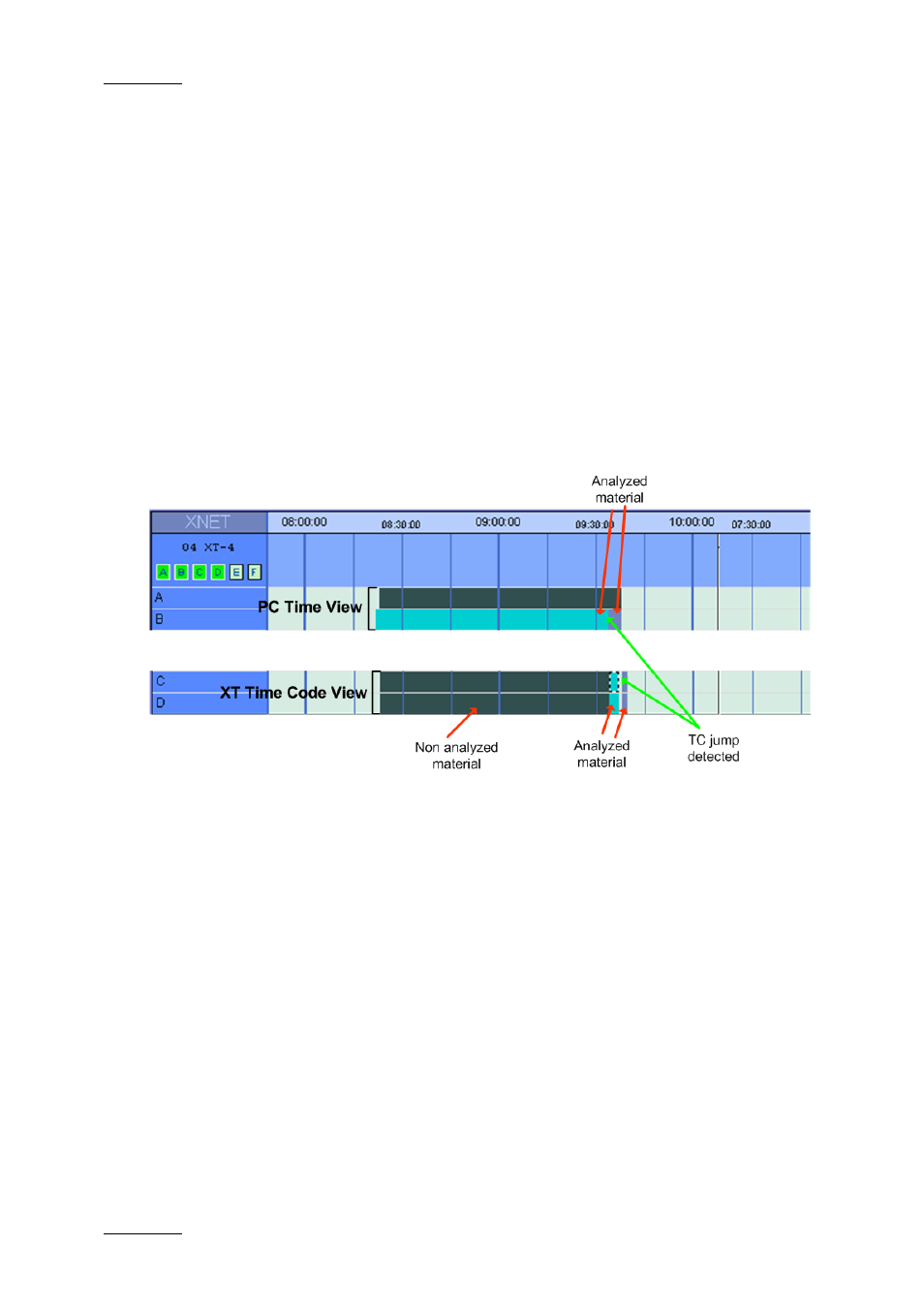

The screenshot below shows how a record train is displayed when a time code
integrity analysis has detected a time code jump in the train. The screenshot
shows both views: PC time view and XT Timecode view.
The colour of the record train changes when a time code jump is detected.
The section of the record train in black has not been analyzed since the analysis
is automatically stopped when the default duration specified in the setting ‘Default
Duration of Analysis’ is reached.
