Audio Configuration
To select the audio channels you want to listen to, proceed as follows:
1. Right-click the Video Display.
2. Select Configure Audio Monitoring from the contextual menu.

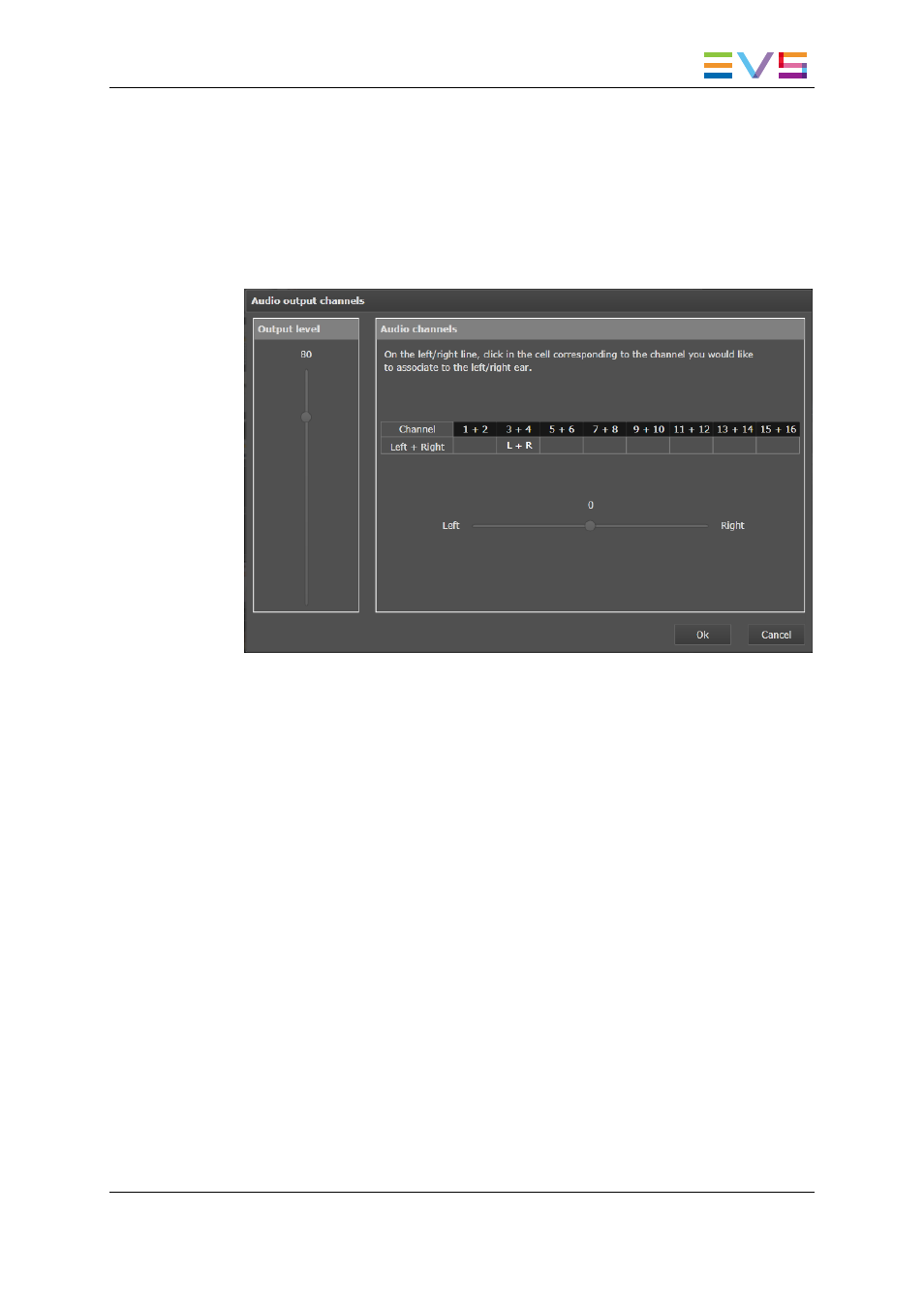

The Audio Output Channels window opens:
3. On the Left+Right line, click the cell corresponding to the channels you want to listen
to.
4. If required, adjust the output level and/or the audio balance.
5. Click OK.
The audio configuration is automatically applied.
2.7.5. Time Information Fields
The following information is shown in the Video Display.
• TC IN (bottom left): timecode of the IN point
• TC duration (bottom centre): time interval between the IN and OUT points, i.e. clip
duration
• TC OUT (bottom right): timecode of the OUT point
TC values are the primary TC of the loaded media.
2.7.6. Jog Bar
The jog bar display differs according to the loaded element.
