24 | English

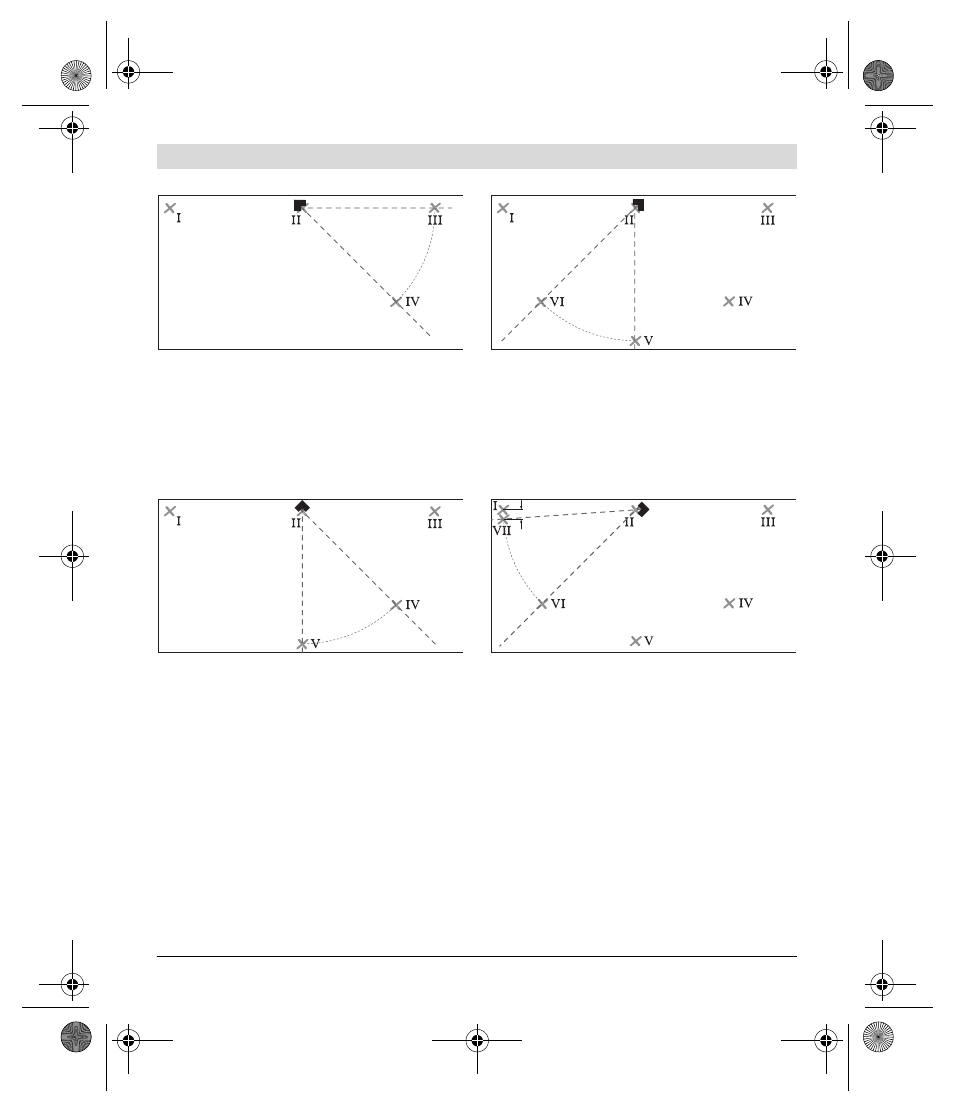

– Position the measuring tool (without turn-
ing it) at a distance of 5 m so that the
crossing point of the laser lines is on the
already marked point II and that the 0°
laser line runs through the point III.
Mark the 45° laser line at a distance of
5 m (Point IV).
– Turn the measuring tool by 45° so that
the centre of the 0° laser line runs
through the point IV.
The crossing point of the laser lines must
still be on the point II.
Mark the 45° laser line at a distance of
5 m as point V.
– Turn the measuring tool by 45° so that
the centre of the 0° laser line runs
through the point V.
The crossing point of the laser lines must
still be on the point II.
Mark the 45° laser line at a distance of
5 m as point VI.
– Turn the measuring tool by 45° so that
the centre of the 0° laser line runs
through the point VI.
The crossing point of the laser lines must
still be on the point II.
– Mark the centre of the 45° laser line at a
distance of 5 m as point VII as near as
possible next to the point I.
– The difference d of the two points VII
and I is the actual deviation of the 0° laser
line and the 45° laser line.
d
