Section 3 – Using the Tool

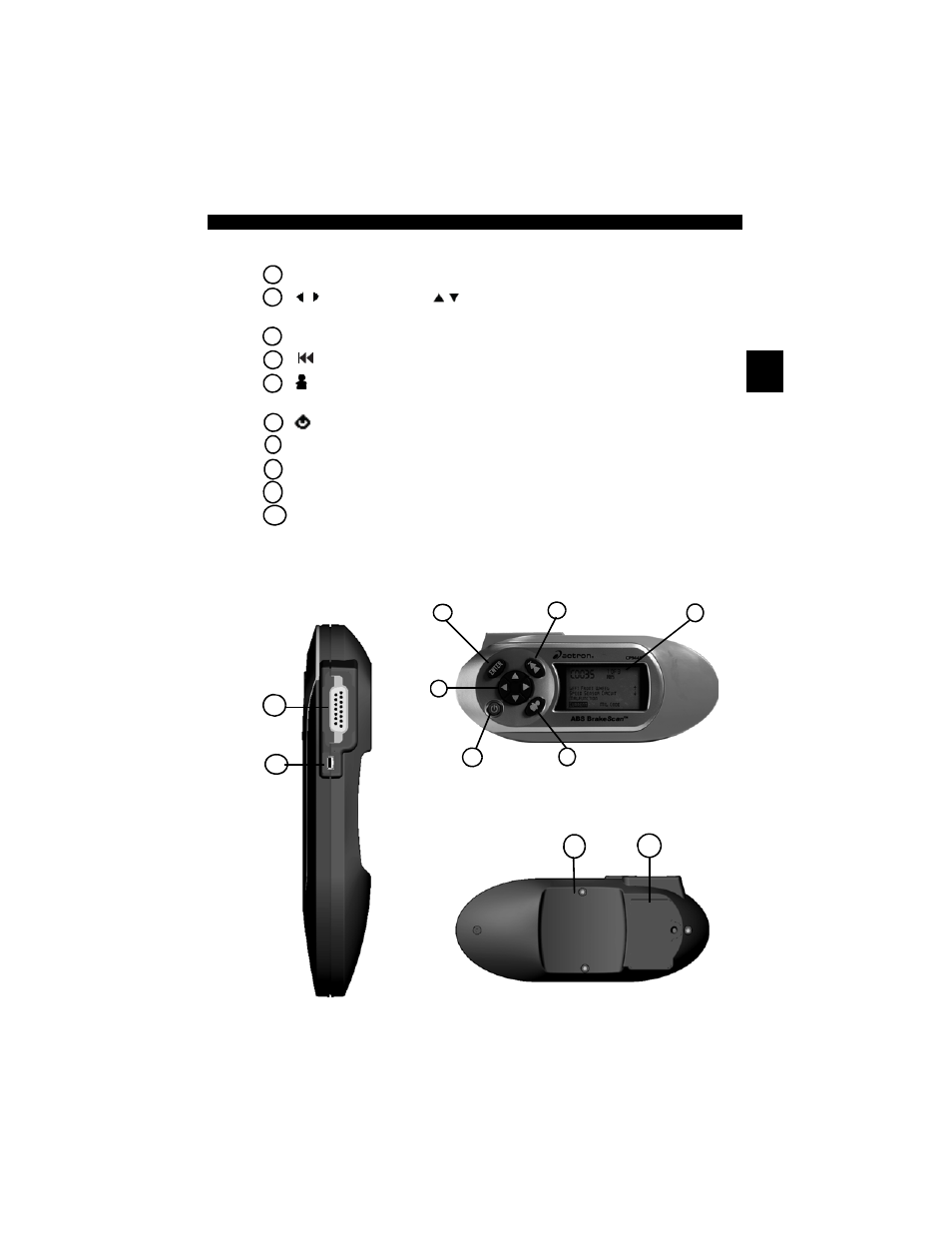

The Tool
1
LCD Display - Backlit, 128 x 64 pixel display with contrast adjustment.
2 /
LEFT/RIGHT and / UP/DOWN arrow keys - Moves the cursor to
select functions or to select YES or NO.
3
ENTER key - Selects displayed items.
4
BACK key - Goes to the previous screen or level.
5
USER key - allows the operator to perform Read Codes with a touch of
a key.
6
ON/OFF - turns the tool power ON or OFF.
7
DLC Port - Provides a connection for interfacing with the vehicle.
8
USB Port - Provides a USB connection to the computer.
9
Serial Number Decal - Provides serial number of the Tool.
10
Battery Compartment - Provides power to the Tool when reprogramming
from a personal computer or for off-vehicle use such as reviewing of codes,
code lookup, and system setup. (Battery not required to use tool for
reading codes.)
1
2
3 4
6 5
9 10
7
8
