Data Link Connector (DLC)
The Data Link Connector (DLC) is used with the Tool to communicate with the
vehicle’s control module.

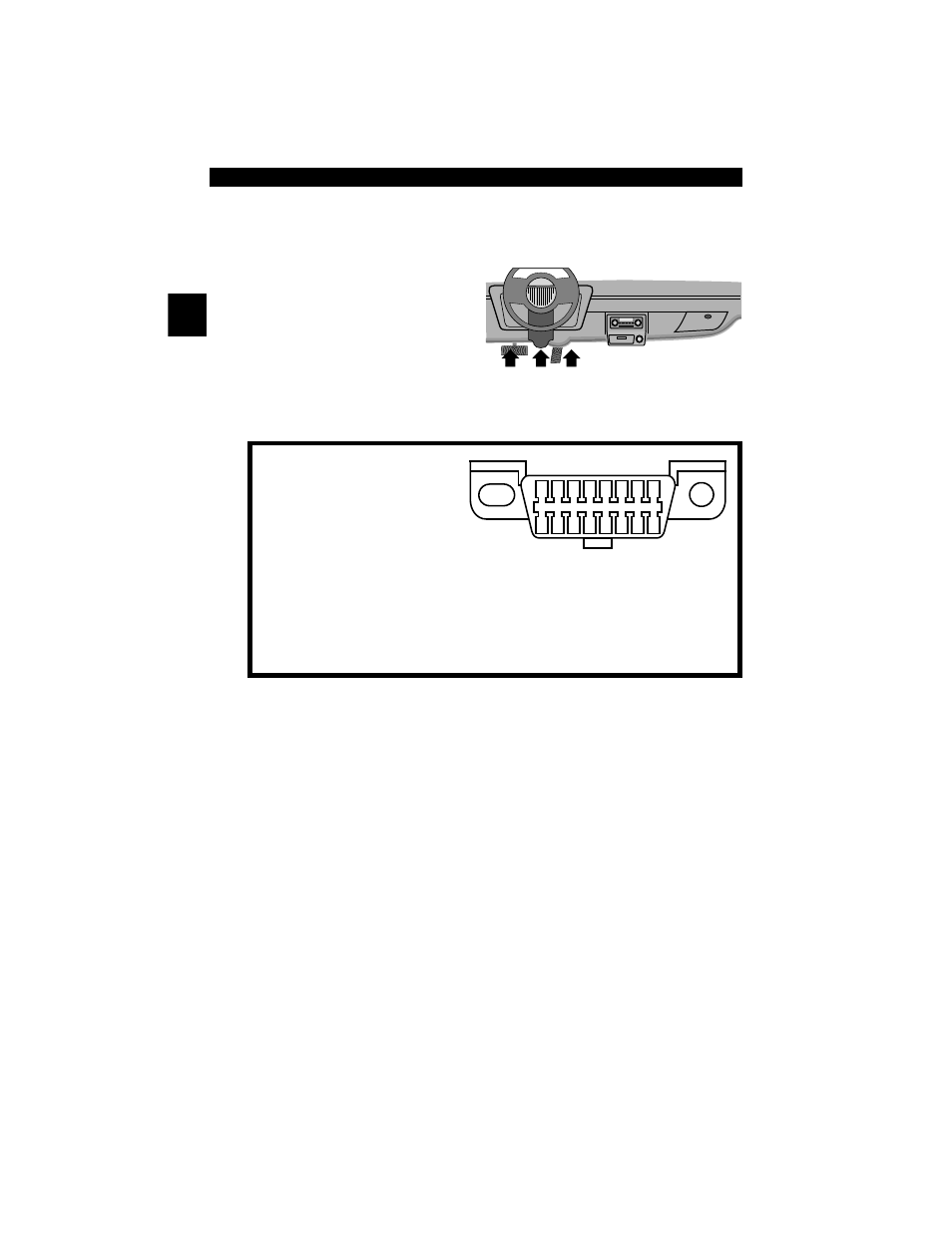

Data Link Connector Location:
❒
Under dashboard on driver
side of vehicle.
❒
If Data Link Connector is not
located under the dashboard,
a label should be there telling
you where it is located.
Data Link Connector (DLC) Pins
For helpful images of where you can find the location of the OBDII Data Link
Connector in your vehicle, visit www.obdclearinghouse.com/oemdb.
1 - Manufacturer Reserved
2 - J1850 Bus+
3 - Manufacturer Reserved
4 - Chassis Ground
5 - Signal Ground
6 - CAN High, J-2284
7 - K Line, ISO 9141-2 & ISO/DIS 14230-4
8 - Manufacturer Reserved
9 - Manufacturer Reserved
10 - J1850 Bus-
11 - Manufacturer Reserved
12 - Manufacturer Reserved
13 - Manufacturer Reserved
14 - CAN Low, J-2284
15 - L Line, ISO 9141-2 & ISO/DIS 14230-4
16 - Battery Power
1
9
8
16
