SECTION 11—SHROUD AND WHEELS
50
Part No. 1143206
Removing/Installing the Rear Shroud
NOTE: For this procedure, refer to FIGURE 11.1.
Removing
1. Remove the two screws that secure the rear shroud to the frame.
2. Remove the rear shroud.
Installing
1. Insert the tabs at the bottom of the rear shroud into the slots in the bottom of the frame.
2. Secure the rear shroud to the frame using the two screws. DO NOT overtighten.

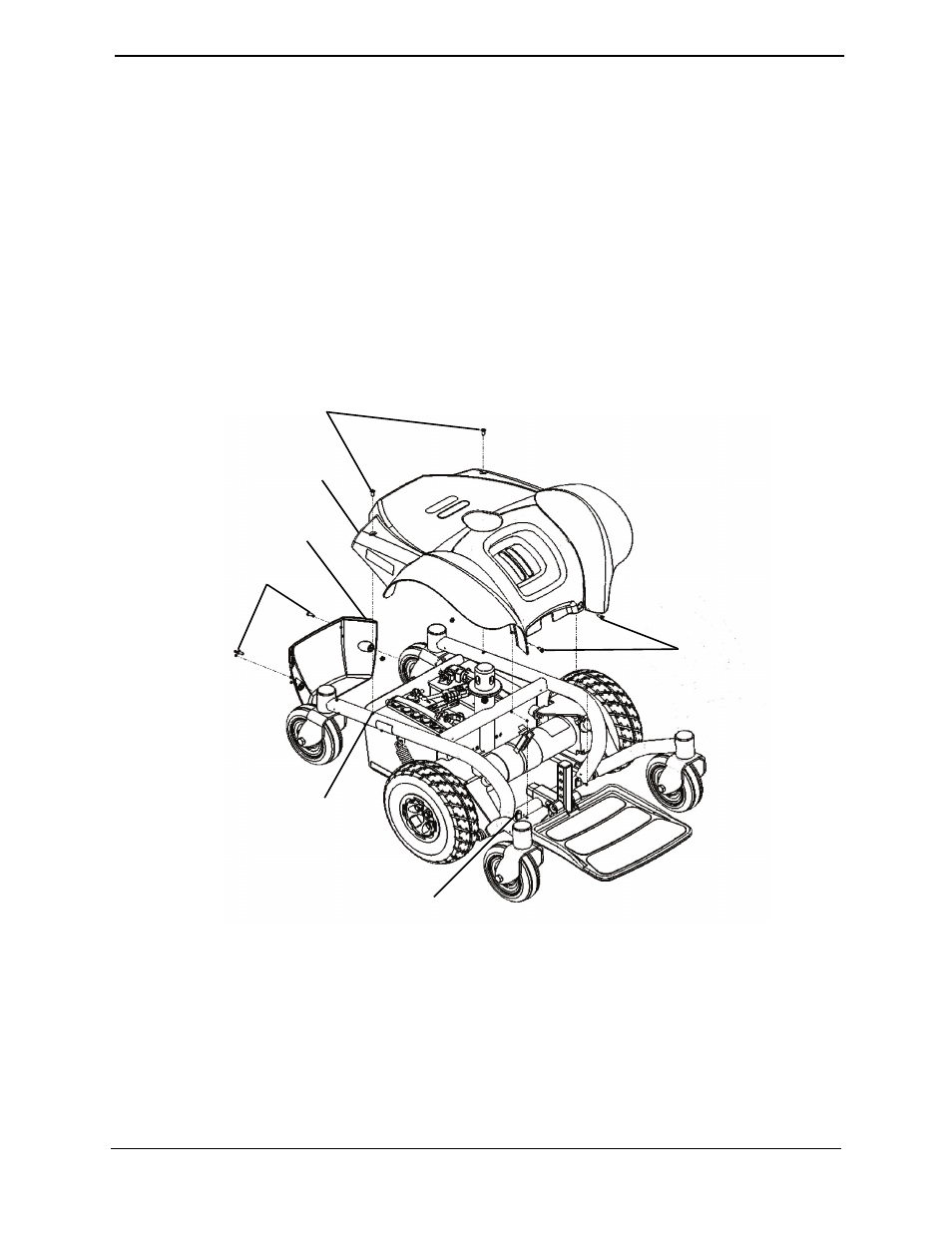

FIGURE 11.1 Removing/Installing the Top Shroud - Removing/Installing the Rear Shroud
Screws
Mounting
Screws
Top Shroud
Mounting Screws
Frame
(Screw Location)
Frame
(Screw Location)
Rear Shroud
