SECTION 7—ARMS
36
Part No. 1143206
Adjusting Height (Semi-Recline Seats Only)
NOTE: For this procedure, refer to FIGURE 7.4.
1. Remove the lock knob that secures the armrest to the arm frame assembly.
2. Adjust the armrest to one of five positions.
3. Reinstall the lock knob that secures the armrest to the arm frame assembly and tighten
securely.

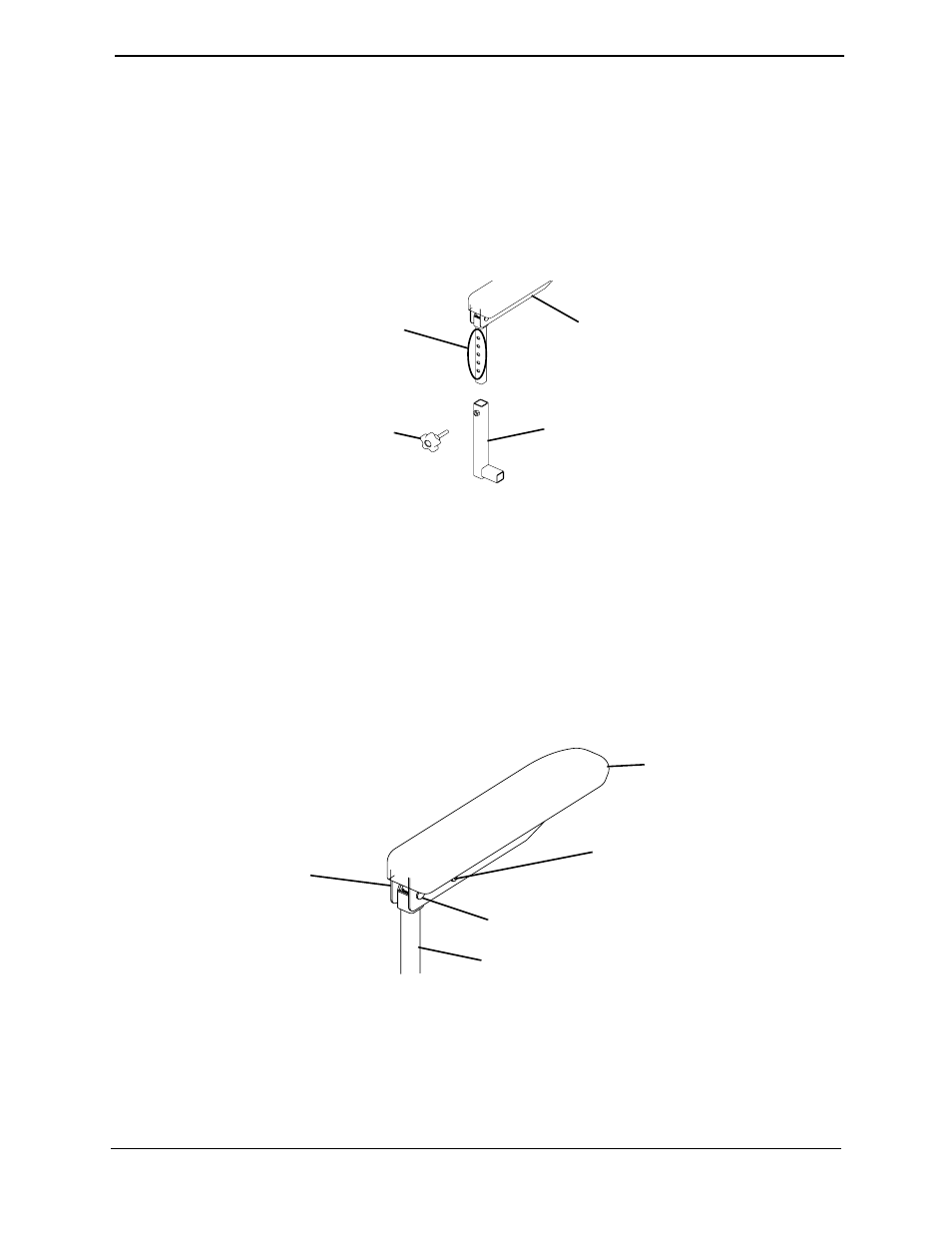

FIGURE 7.4 Adjusting Height (Semi-Recline Seats Only)
Adjusting Depth (Fold Down Back Seats Only)
NOTE: For this procedure, refer to FIGURE 7.5.
1. Remove the mounting screw and locknut that secure the arm adjusting bar to the arm
pad.
2. Install the arm adjusting bar to the other depth adjustment hole on the arm pad with
the mounting screw and locknut. Securely tighten.
FIGURE 7.5 Adjusting Depth (Fold Down Back Seats Only)
Armrest
Height
Adjustment
Holes
Arm Frame
Assembly
Lock Knob
Mounting Screw
Depth
Adjustment
Hole
Locknut
(not shown)
Arm Pad
Arm Adjusting Bar
