SECTION 10—FRONT RIGGINGS
48
Part No. 1143206
NOTE: The footplate will be on the inside of the wheelchair when locked in place.
4. Using the two socket bolts and locknuts, secure the telescoping front rigging support
to the seat frame as shown in FIGURE 10.6.
5. If necessary, repeat STEPS 2‐4 on remaining telescoping front rigging support.
6. Reinstall the seat. Refer to Removing/Installing the Seat Assembly on page 37.

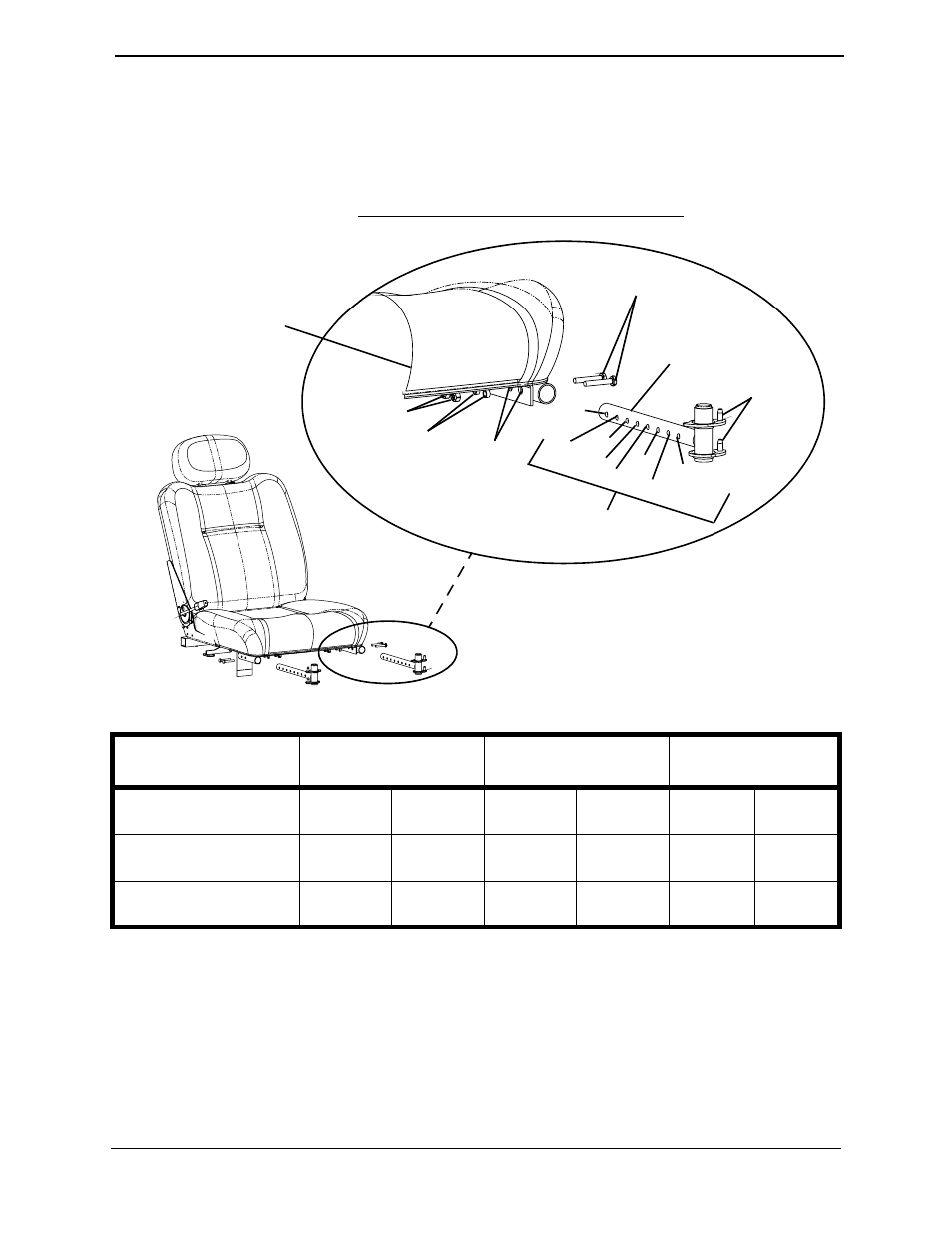

FIGURE 10.6 Adjusting/Replacing Telescoping Front Rigging Supports
FRONT RIGGING
MODEL
STANDARD
POSITION
1 INCH OUT
2 INCHES OUT
18 inches
wide
20 inches
wide
18 inches
wide
20 inches
wide
18 inches
wide
20 inches
wide
PHW93
Holes
4 and 5
Holes
4 and 5
Holes
5 and 6
Holes
5 and 6
Holes
6 and 7
Holes
6 and 7
PH904A and PHAL4A
Holes
3 and 4
Holes
3 and 4
Holes
4 and 5
Holes
4 and 5
Holes
5 and 6
Holes
5 and 6
Spacers
Telescoping Front
Rigging Support
Mounting Holes
Locknuts
Mounting
Bolts
Seat
Inner
Mounting
Holes
2
Not
Used
4
3
5
7
6
Hinge
Pins
8
