SECTION 13—BATTERIES
Pronto® M41 with SureStep® 62 Part No. 1143206
5. Secure each terminal cap in place with a tie‐wrap (use tie‐wraps 11‐1/2‐inches long)
(Detail “B” of FIGURE 13.2).
6. Position the batteries into the wheelchair. Refer to Removing/Installing the Batteries
on page 59.
NOTE: New Battery(ies) MUST be fully charged before using, otherwise the life of the battery(ies)
will be reduced.
7. If necessary, charge the batteries. Refer to Charging Batteries on page 63.

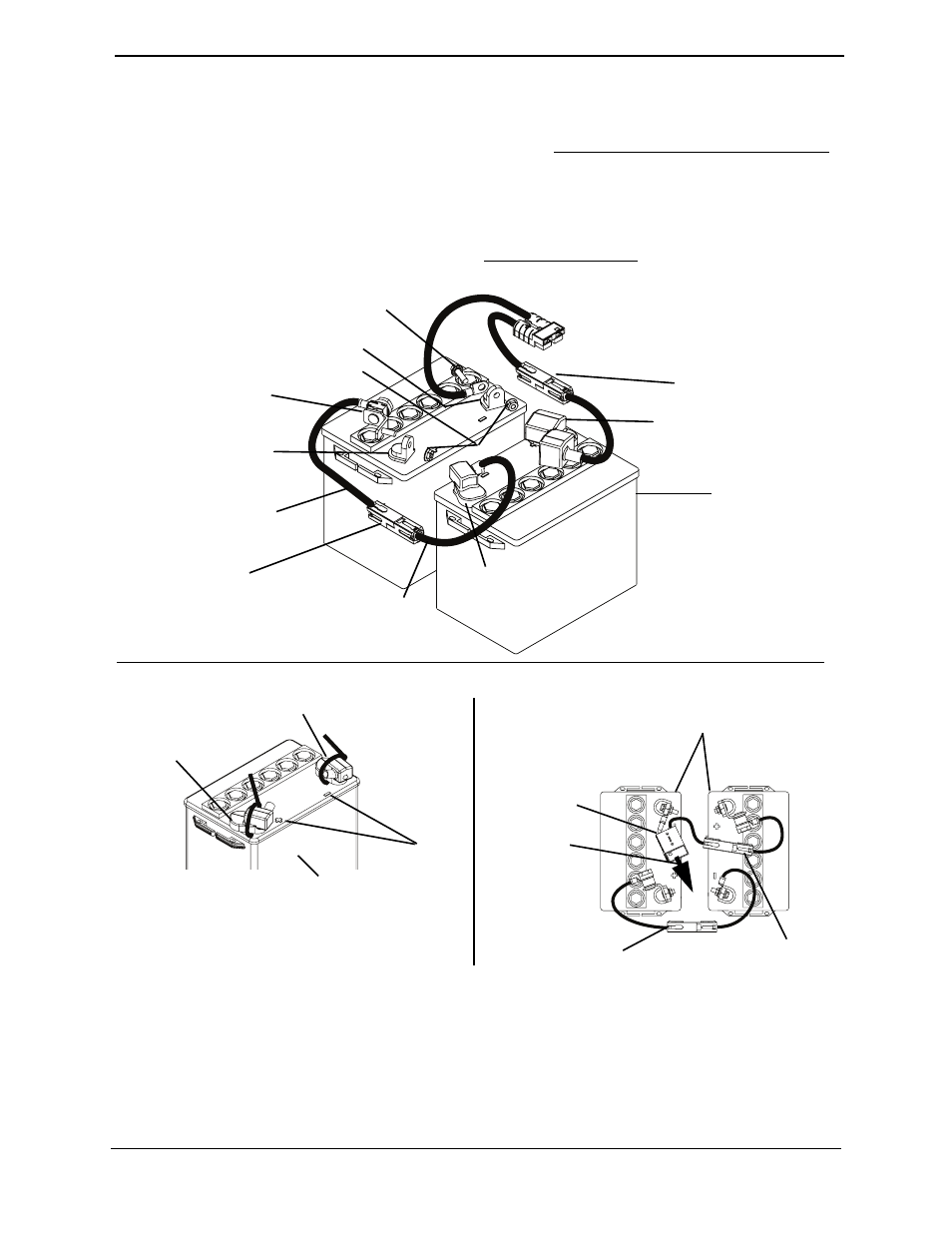

FIGURE 13.2 Connecting/Disconnecting Battery Cables
RED
Connectors
POSITIVE (+)
Battery Cable
POSITIVE (+)
Battery Terminal
NEGATIVE (-)
Battery Cable
NEGATIVE (-) Battery
Terminal Cap
NEGATIVE (-) Battery Terminal
Locknuts
U1 Battery
POSITIVE (+) Battery
Terminal Cap
DETAIL “A”
DETAIL “B”
NOTE: Handles on
batteries removed
for clarity.
POSITIVE (+)
Battery Terminal
NEGATIVE (-) Battery Terminal
Tie-
wraps
U1 Battery
NOTE: Handles on batteries removed for
clarity.
Mounting Screw
L-Bracket with
Mounting Screw
BLACK Connectors
NOTE: Battery terminal
caps not shown on left
battery for clarity.
Left
Battery
Right
Battery
Wiring Diagram
U1 Batteries
RED Connectors
BLACK
Connector to
Controller
Plug Into
Controller
BLACK Connectors
