This LED will light red when the system is in standby mode. It indicates that there is power on the system board.
Power off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe
damage to the motherboard and components.

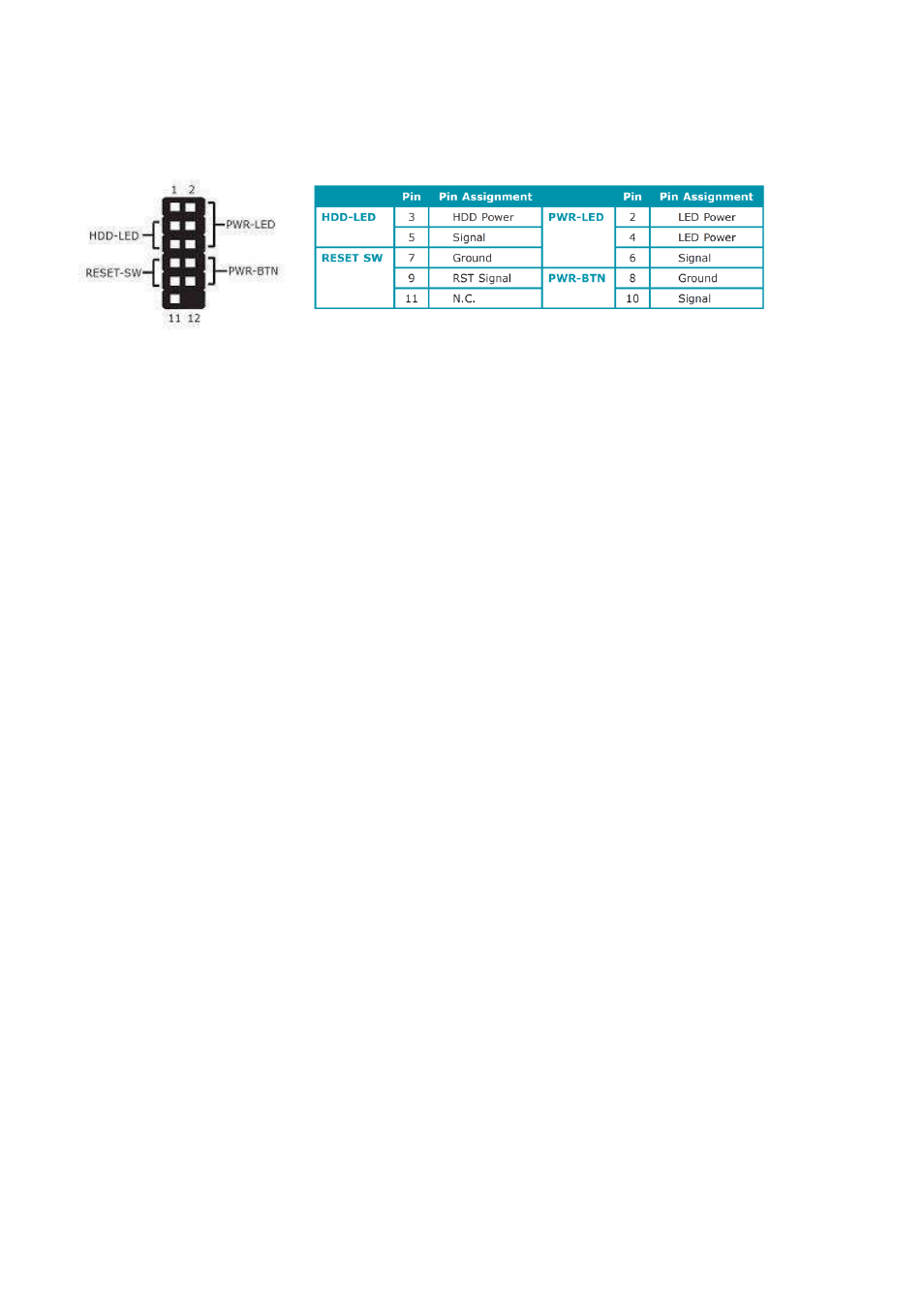

Front Panel Connectors
HDD-LED - HDD LED
This LED will light when the hard drive is being accessed.
RESET SW - Reset Switch
This switch allows you to reboot without having to power off the system.
PWR-BTN - Power Switch
This switch is used to power on or off the system.
PWR-LED - Power/Standby LED
When the system s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will
blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.
Expansion Slots
PCI Express x16
One PCI-e x16 gold fingers for customized expansion
Battery
The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the
main power is shut off.
Safety Measures
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommend by the manufacturer.
Dispose of used batteries according to local ordinance.
