InStallatIOn
Installation
26
�02
�02
�1
10
1

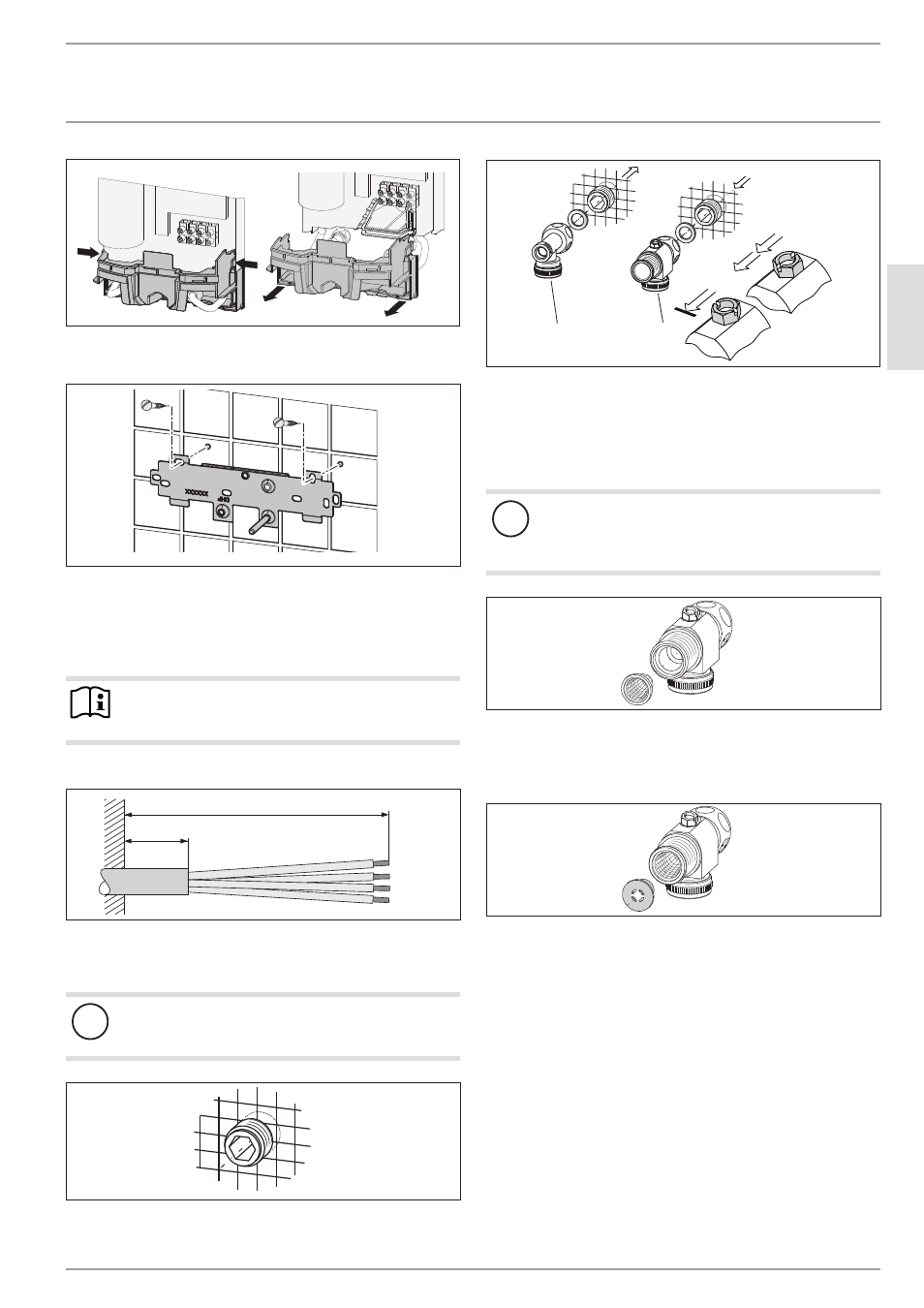

f f Press the two locking hooks and remove the lower part of
the back panel towards the front.
26
�0
2�
02
�0
81
0�
f f Mark out the holes to be drilled; see chapter “Specification /
Dimensions and connections”.
f f Drill the holes and secure the mounting bracket with
2 screws and 2 rawl plugs (screws and rawl plugs are not
part of the standard delivery).
Note
If you are installing the appliance with flexible water con-
nections. secure the back panel with a screw.
f f Fit the mounting bracket.
160
≥ 30
26
�0
2�
02
�0
88
7
f f Prepare the power cable.
making the water connection
!
Material damage
Carry out all water connection and installation work in
accordance with regulations.
26
�0
2�
02
�0
79
8
f f Seal and insert the twin nipples.
1 2
26
�0
2�
02
�0
79
9
1 DHW tee
2 Cross-piece
f f Secure the tee and cross-piece, with a flat gasket each, to the
twin nipples.
Fitting the strainer
!
Material damage
The strainer must be fitted for the appliance to function.
f f When replacing the appliance. check that the strain-
er is present.
26
�0
2�
02
�0
85
6
f f Fit the strainer provided in the cold water inlet of the
appliance.
installing the dmB flow limiter
26
�0
2�
02
�0
85
7
f f Install the flow limiter provided in the cold water inlet of the
appliance.
