SeeSnake ® CounTPluS Cable-CounTeR
• Damage to the product that requires service. Refer servicing to quali-
fied service personnel under any of the following conditions:
o If liquid has been spilled or objects have fallen into product;
o If product does not operate normally by following the operating
instructions;
o If the product has been dropped or damaged in any way;
o When the product exhibits a distinct change in performance.
If you have any questions regarding the service or repair of this machine,
contact Ridge Tool Europe via www.ridgid.eu, your local RIDGID repre-
sentative or local distributor.
In any correspondence, please give all the information
shown on the nameplate of your CountPlus, including
model number and serial number.

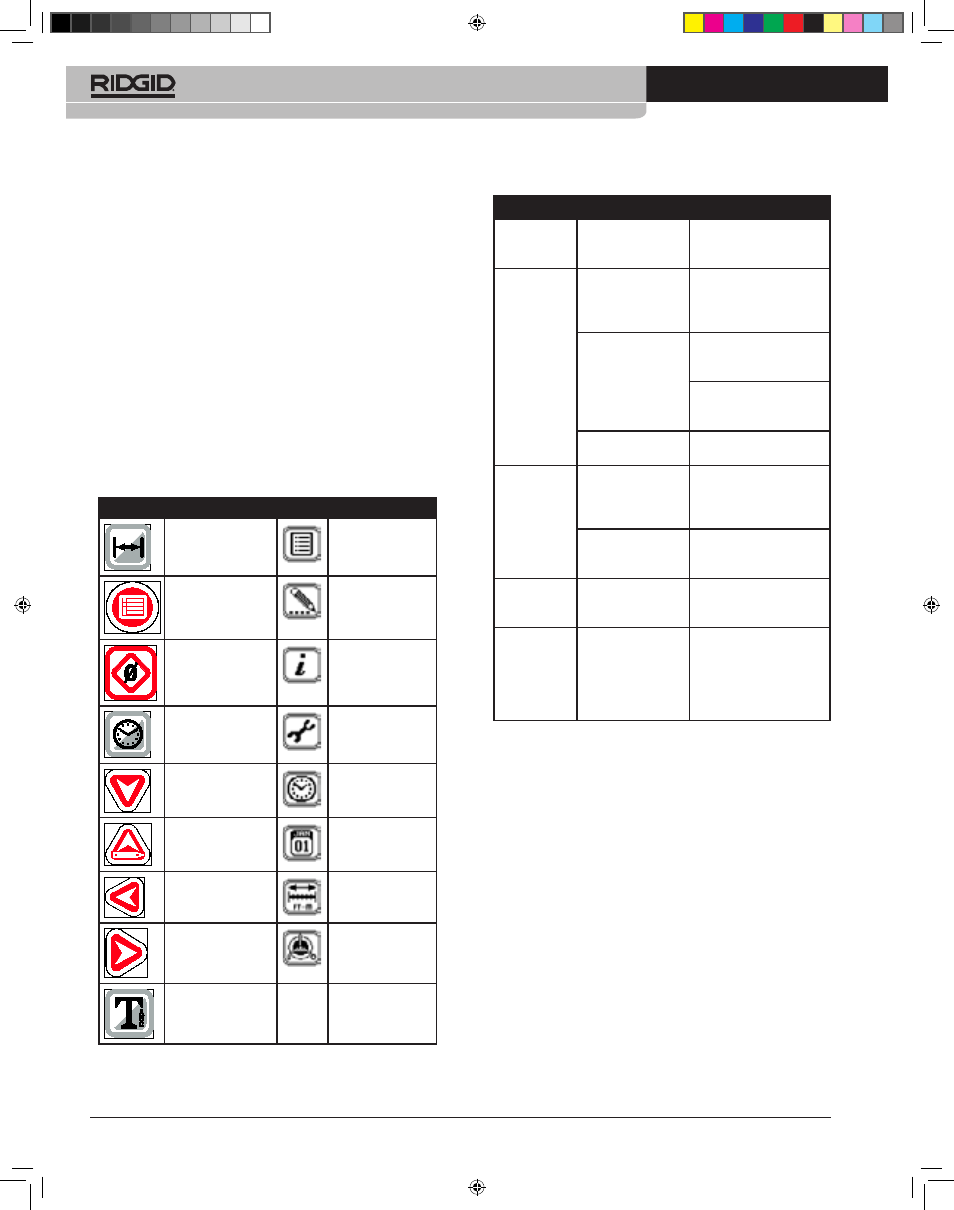

Icons and Symbols
Key Pad Menus
Measurement Display
On/Off
Menu Icon
Menu Key Slide Edit Screen
Zero/Select Key Information Screen
Time/Date Display
On/Off
Tools Menu
Down Arrow Time Settings
Up Arrow/Edit Key Date Settings
Left Arrow
Measurement Unit
Settings
Right Arrow
Reel and Cable
Settings
Text Key
Figure 19: Icons and Symbols
Trouble Shooting
PROBLEM PROBABLE
FAULT
LOCATION
SOLUTION
Camera video
image not seen.
No power to
SeeSnake connector.
Check power is correctly
plugged in.
Check switch on SeeSnake
monitor.
Connections faulty. Check alignment and pins
of connection to monitor or
DVR unit from SeeSnake.
Check orientation, seating,
and pin condition in the
CountPlus connection.
CountPlus battery low. Replace 3-volt battery in the
CountPlus (CR2450).
Count accuracy
seems
unreliable.
Settings incorrect for
reel or cable being
used.
Verify the settings are correct
for the SeeSnake cable
length, cable diameter and
reel type you are using.
Counting from a zero
point other than the
one intended.
Confirm you are measuring
from the intended zero-point.
Low Battery
warning
appears.
Battery dead or near-
dead.
Replace 3-volt battery in the
CountPlus (CR2450).
The symbol “+”
appears after
the on-screen
distance
measurement.
Physical cable meas-
urement has exceeded
the cable parameter in
settings.
Verify the actual length of
your installed cable; re-set
the reel and cable settings
for the correct reel type and
actual cable length and diam-
eter as described on page 5.
