Field of application
Nomenclature of parts
Only the techniques
shown in the
diagrams that
are not crossed
out and/or do not
display a skull and
crossbones symbol
are authorized. Check
our Web site www.
petzl.com regularly
to find the latest
versions of these
documents. Contact
PETZL if you have
any doubt or difficulty
understanding these
documents.
This system was developed for the
emergency self-evacuation of a trained
individual in a critical situation, when
there are no other means of escape.
This system is designed to support the
weight of a single person.
Only firefighters who have completed
specific training in the use of the EXO
and obtained authorization from their
fire hall are authorized to use the EXO.
We recommend that you perform a
practice descent at least once a year,
using your EXO system. During this
practice, you must be backed up by a
separate belay system.
Do not reuse your EXO after it has been
used in an emergency situation.
WARNING
Activities involving the use of this
equipment are inherently dangerous.
You are responsible for your own
actions and decisions.
Before using this equipment, you must:
- Read and understand all instructions
for use.
- Get specific training in its proper use.
- Become acquainted with its capabilities
and limitations.
- Understand and accept the risks
involved.
Failure to heed any of these warnings
may result in severe injury or death.
Responsibility
WARNING, specific training in the
activities defined in the field of
application is essential before use.
This product must only be used by
competent and responsible persons, or
those placed under the direct and visual
control of a competent and responsible
person.
You personally assume all risks and
responsibilities for all damage, injury
or death which may occur during or
following incorrect use of our products
in any manner whatsoever. If you are not
able, or not in a position to assume this
responsibility or to take this risk, do not
use this equipment.

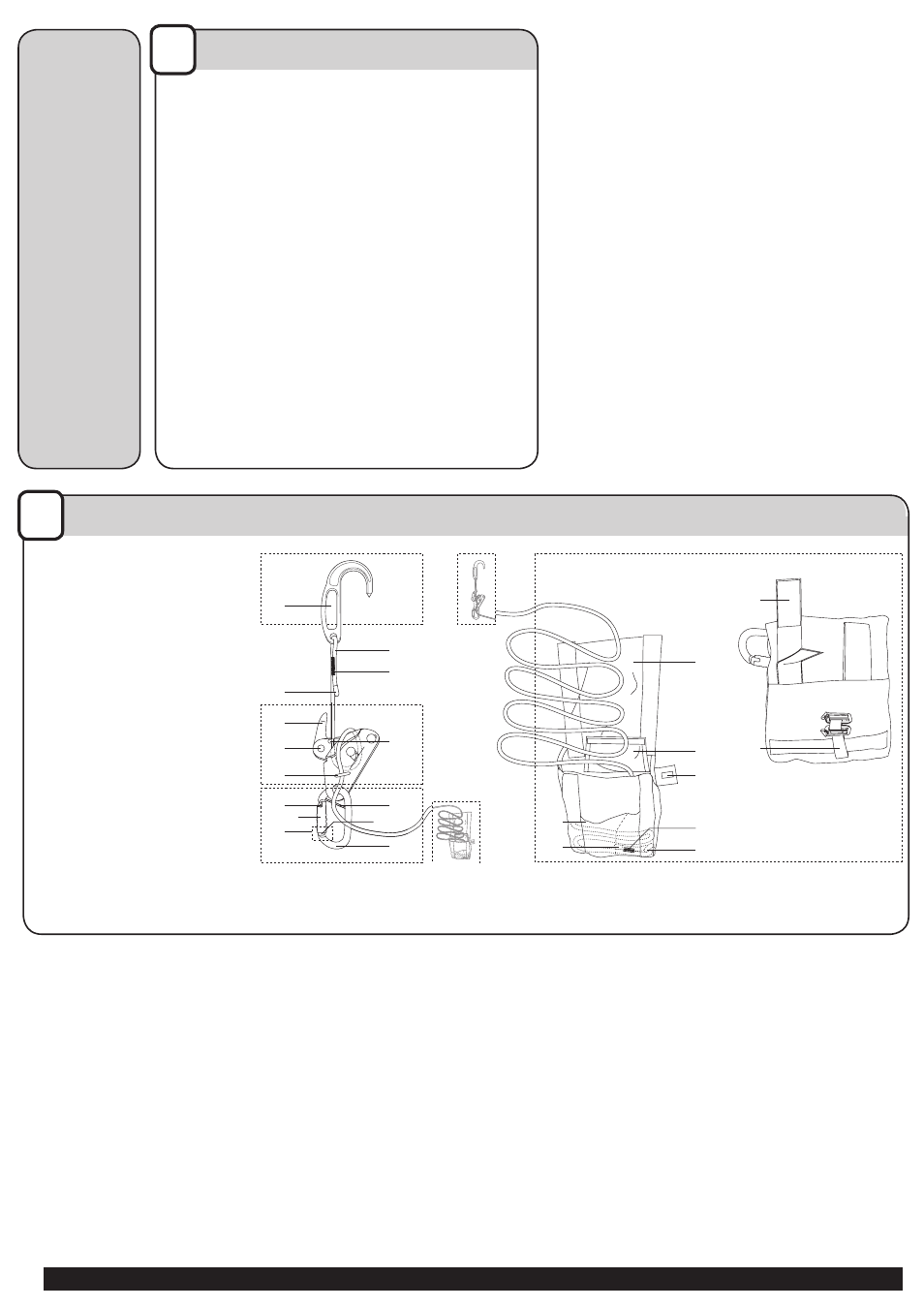

Metal descender
(1) Rope guide, (2) Cam, (3) Pin, (4) Handle.
Directional connector: OK TRIACT BAR
(5) Frame, (6) Gate, (7) Hinge, (8) Locking system,
(9) Keylock, (10) Fixed bar.
Rope
(11a) Sewn termination (anchor end), (11b) Sewn
termination (on the braking side), (12) Stitching,
(13) Heat-shrink cover for termination.
Storage bag
(14) Rope divider flap, (15) Connector pocket,
(16) Velcro for positioning the OK TRIACT BAR,
(17) Flap closure, (18) Velcro for attachment to the
harness, (19) Rear positioning strap.
Anchor hook
(20) Hitching slot.
Principal materials:
Descender
Aluminum alloy (frame, handle), stainless steel (cam,
rivets).
OK TRIACT BAR
Aluminum alloy.
Rope
Aramid (core and sheath).
Storage bag
Aramid.
Anchor hook
Steel
1
7
9
8
2
4
3
10
5
6
Anchor hook
Connector
11b
14
17
16
13
15
18
19
12
Storage bag
Front
Rear
Metal
descender
13
11a
12
20
