5.
NORME DI MESSA A PUNTO • SET-UP PROCEDURES
ENGLISH
ITALIANO
– 96 –
H
21
63_137_0.tif
M
E
C
G
D
G
L
20
040_040_1.tif
E
F
M
040_102_1 TIF.
L
M
G
F
E
(OPT)
Regolare la posizione del pressa-
tore orizzontale
E e verticale F in
appoggio sul pezzo da lavorare
procedendo come segue (fi g. 20):
– allentare il pomello
G e regolare
trasversalmente il pressatore
E
in base alla larghezza del legno
da lavorare.
– Serrare il pomello a regolazione
eseguita.
– Allentare i pomelli
L e M e po-
sizionare il pressatore verticale
F sul legno mantenendolo il più
vicino possibile alla fresa.
– Serrare i pomelli
L e M a rego-
lazione avvenuta.
Regolare i pressatori in maniera
tale che il legno da lavorare possa
scorrere con facilità.
5.6. CUFFIA TOUPIE PER
SAGOMARE -
REGOLAZIONI (FIG.21)
PROFONDITÀ DI LAVORO
REGOLAZIONE
– allentare il pomello
H e agire
sul pomello
M per eseguire la
regolazione micrometrica;
– serrare il pomello
H.
LUNETTE COPIATRICI - RE-
GOLAZIONE ALTEZZA
– Allentare il pomello
C e regolare
le lunette
D all'altezza desidera-
ta;
– ribloccare a regolazione esegui-
ta.
PRESSATORE -
REGOLAZIONE
– Allentare il pomello
E e regolare
il pressatore
G in modo che
faccia una leggera pressione
sul pezzo da lavorare;
– ribloccare a regolazione esegui-
ta.

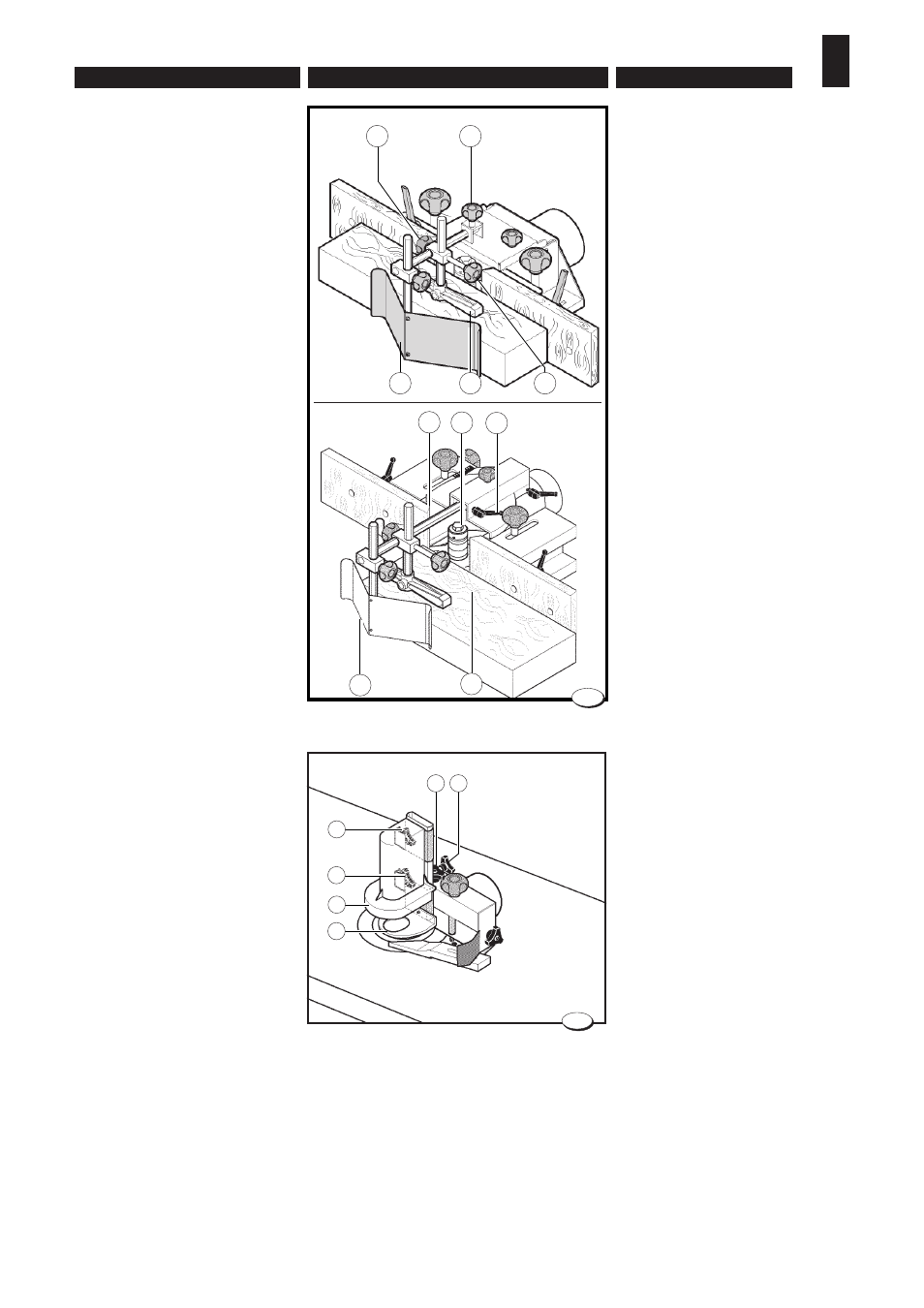

Adjust the position of the horizontal
presser
E and the vertical presser F
resting it on the piece to be machi-
ned and proceed as follows (fi g. 20):
– Slacken the knob
G and adjust the
presser E sideways depending
on the width of the wood to be
planed.
– Serrare il pomello a regolazione
eseguita.
– Loosen the knobs
L and M and
position the vertical presser
F on
the wood maintaining it is close
as possible to the cutter.
– Lock the knobs
L and M when the
adjustment has been completed.
Adjust the pressers in such a way
that the wood to be machined can
slide easily.
5.6. SHAPING ROUTER
HOOD - ADJUSTMENTS
WORKING DEPTH
ADJUSTMENT
– loosen the knob
H and act on
the knob
M to make micrometric
adjustments
– tighten the knob
H.
TRACER RESTS - HEIGHT
ADJUSTMENT
– Loosen the knob
C or the screws
C and adjust the rest D to the
desired height;
– relock when adjustment has been
completed.
PRESSER - ADJUSTMENT
– Loosen the knob
E or the screws
E and adjust the presser G in such
a way that it exercises slight pres-
sure on the piece to be machined.
– relock when adjustment has been
completed.
