C

HAPTER

4: C

ONFIGURING

THE

S

WITCH

before attempting to acquire a new client. (Range:
1-65535 seconds; Default: 60 seconds)

Transmit Period – Sets the time period during an
authentication session that the switch waits before
re-transmitting an EAP packet. (Range: 1-65535
seconds; Default: 30 seconds)

After you have filled in the parameters, click Apply to
save your changes.

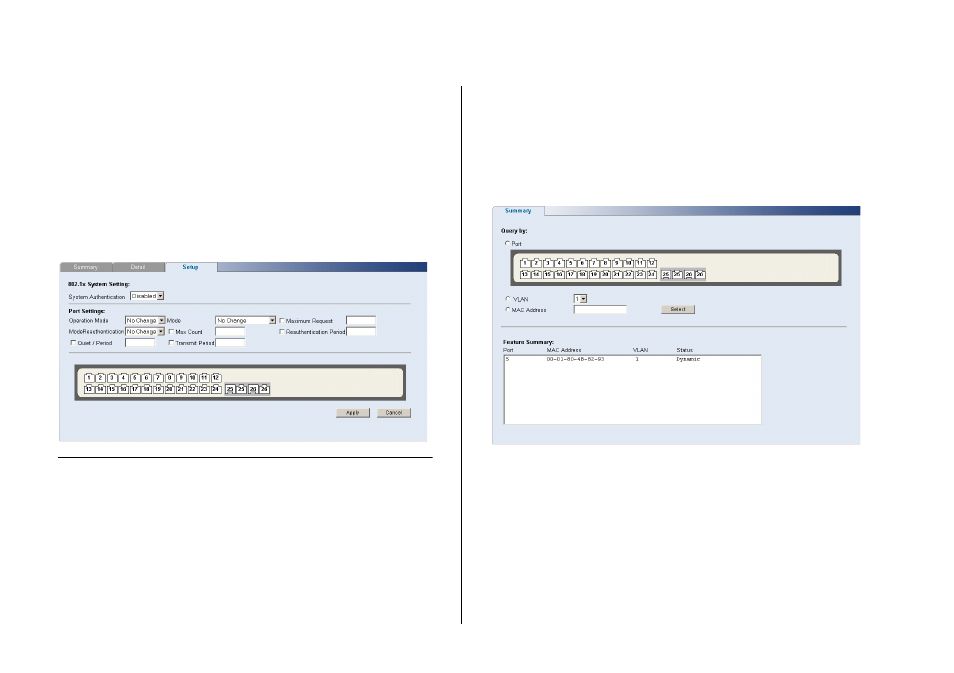

Figure 59 802.1X Setup Screen

Monitoring

Using the Web interface, you can display address table
information and cable diagnostics.

The Monitoring menu includes two items:

Address Table

Cable Diagnostics

Address Table

Use the Address Table Summary screen to display the
Address Table information. You can query by selecting a
port, choosing a VLAN, or entering in a MAC Address,
then click Select.

Figure 60 Address Table Screen

Cable Diagnostics

The Switch provides a cable diagnostics utility, which
helps you detect and resolve issues with the attached
cables.

The Cable Diagnostics menu includes two tabs:

Summary

Diagnostics
