3Com 2226 PLUS - Manual (Page 56)

56 C HAPTER 4: C ONFIGURING THE S WITCH
Modify
Use the Modify tab to reassign member ports of a link
aggregation group.

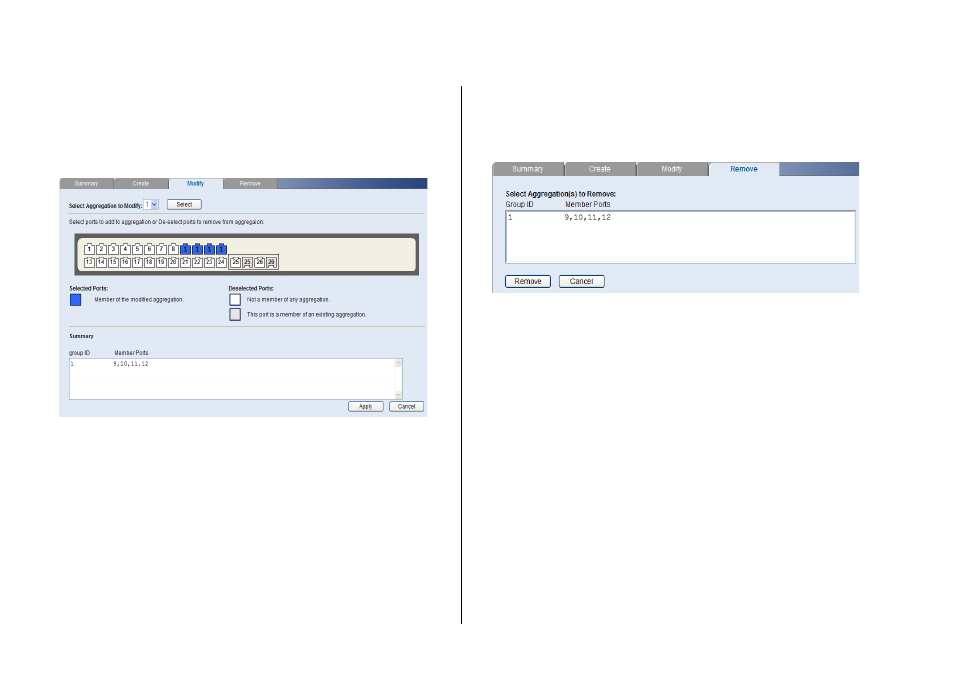

Figure 41 Link Aggregation Modify Screen
To modify a link aggregation group:
1 Select the aggregation group to modify, then click
Select.
2 Select the ports to add to, and/or remove from, the
goup.
3 Click Apply.
Remove
Use the Remove tab to delete a link aggregation group.
Figure 42 Link Aggregation Remove Screen
To remove a link aggregation group:
1 From the link aggregation group list, select the
aggregated group to remove.
2 Click Remove.
Spanning Tree per Port
This administrative tool supports the configuration of
the Switch to forward, or block and discard 802.1D
spanning tree BPDU packets.
Spanning tree is a bridge-based system for providing
fault tolerance on networks and can be used to detect
and disable network loops. The spanning tree ensures
that the optimal path is maintained between spanning
tree-compliant networked devices by:
