Chapter 9 Product Specifications and Wall-Mounting Instructions
ZyXEL NWA570N User’s Guide
99
Wall-mounting Instructions
Complete the following steps to hang your NWA570N on a wall.
"
for the size of screws to use and how far apart to place
them.
1 Select a high position on a sturdy wall that is free of obstructions.
2 Drill two holes for the screws. The distance between the centers of the holes is listed in
the product specifications appendix.
1
Be careful to avoid damaging pipes or cables located inside the wall when
drilling holes for the screws.
3 Do not insert the screws all the way into the wall. Leave a small gap of about 0.5 cm
between the heads of the screws and the wall.
4 Make sure the screws are snugly fastened to the wall. They need to hold the weight of
the NWA570N with the connection cables.
5 Align the holes on the back of the NWA570N with the screws on the wall. Hang the
NWA570N on the screws.

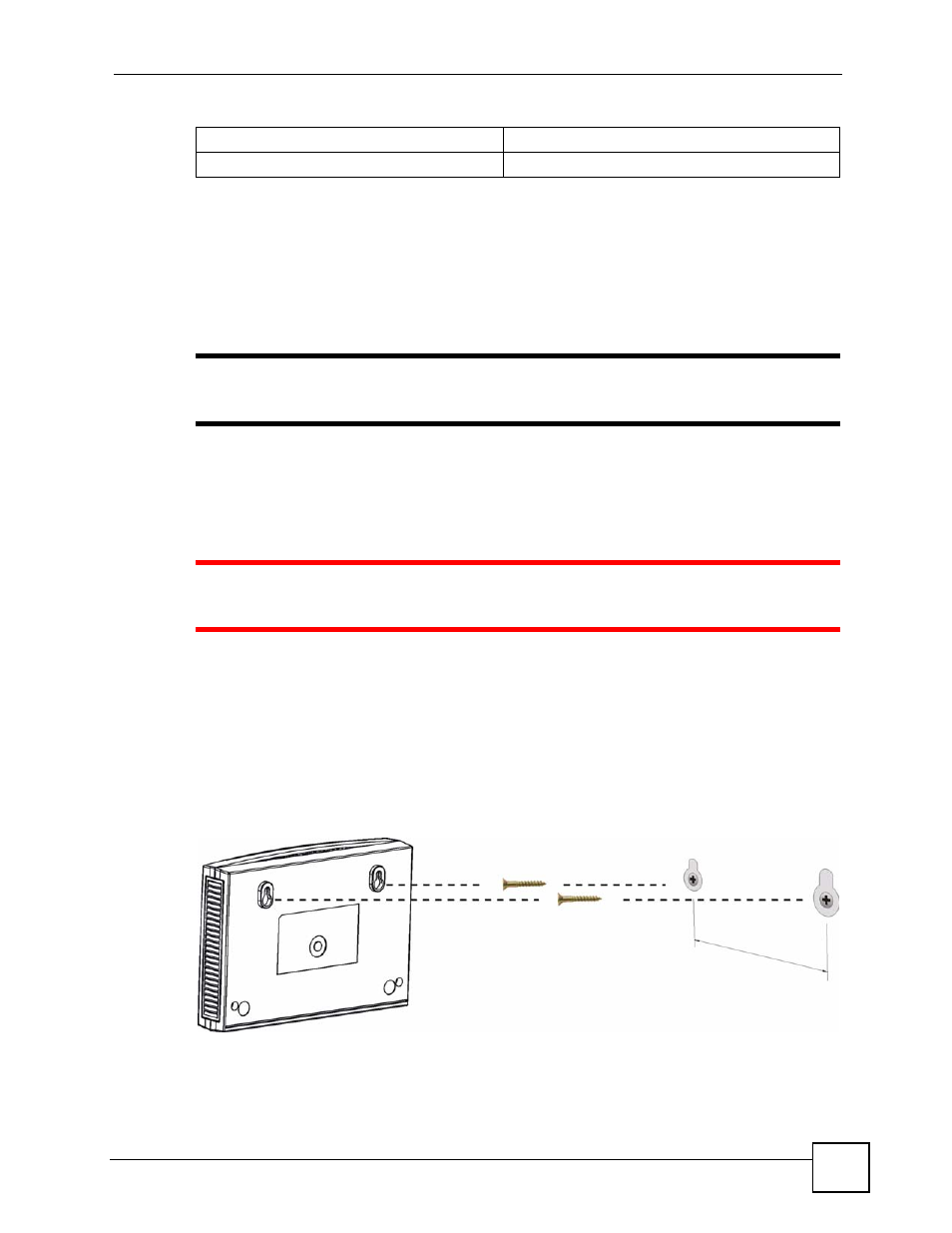

Figure 52 Wall-mounting Example
Power Consumption
12 Watts
Safety Standards
CE mark, EN60950 (2001)
Table 32 Power Adaptor Specifications (continued)
