Chapter 4 Status Screen
ZyXEL NWA570N User’s Guide
46
4.1.1 Status Screen Icons
The following table describes the global web configurator icons (in the upper right corner of
most screens).
4.1.2 Status Screen Details
The status screen provides details on your ZyXEL Device, wireless settings, IP settings, as
well as statistics and associated device details.

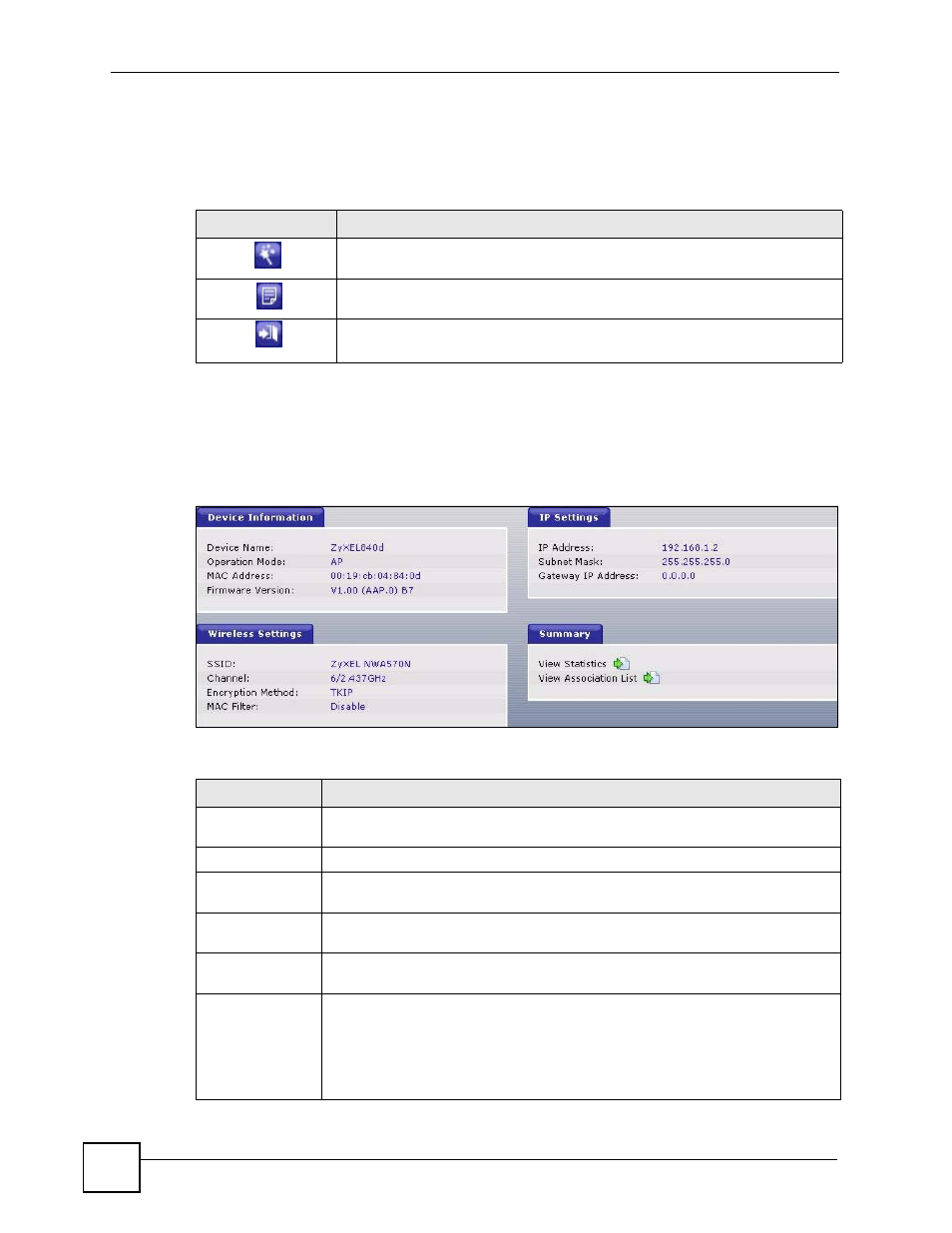

Figure 22 Status Screen Details
The following table describes the labels in this screen.
Table 3 Global Icon Key
ICON DESCRIPTION
Click the Wizard icon to open the setup wizard.
Click the About icon to view copyright information.
Click the Logout icon at any time to exit the web configurator.
Make sure you save any changes before you log out.
Table 4 Status
LABEL DESCRIPTION
Refresh Interval Use the drop-down list box to select how often you want the device to renew the
information on this screen.
Refresh Now Click this button to have the device renew the information on this screen.
Device
Information
Device Name This is the same as the device name you entered in the first wizard screen if you
entered one there. It is for identification purposes.
Operation
Mode
This field shows whether the device is functioning as an access point, a wireless
client, a bridge or an access point and repeater.
MAC Address This field displays the MAC address of the device.
The MAC (Media Access Control) or Ethernet address on a LAN (Local Area
Network) is unique to your computer. A network interface card such as an
Ethernet adapter has a hardwired address that is assigned at the factory. This
address follows an industry standard that ensures no other adapter has a similar
address.
