Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA570N User’s Guide
24

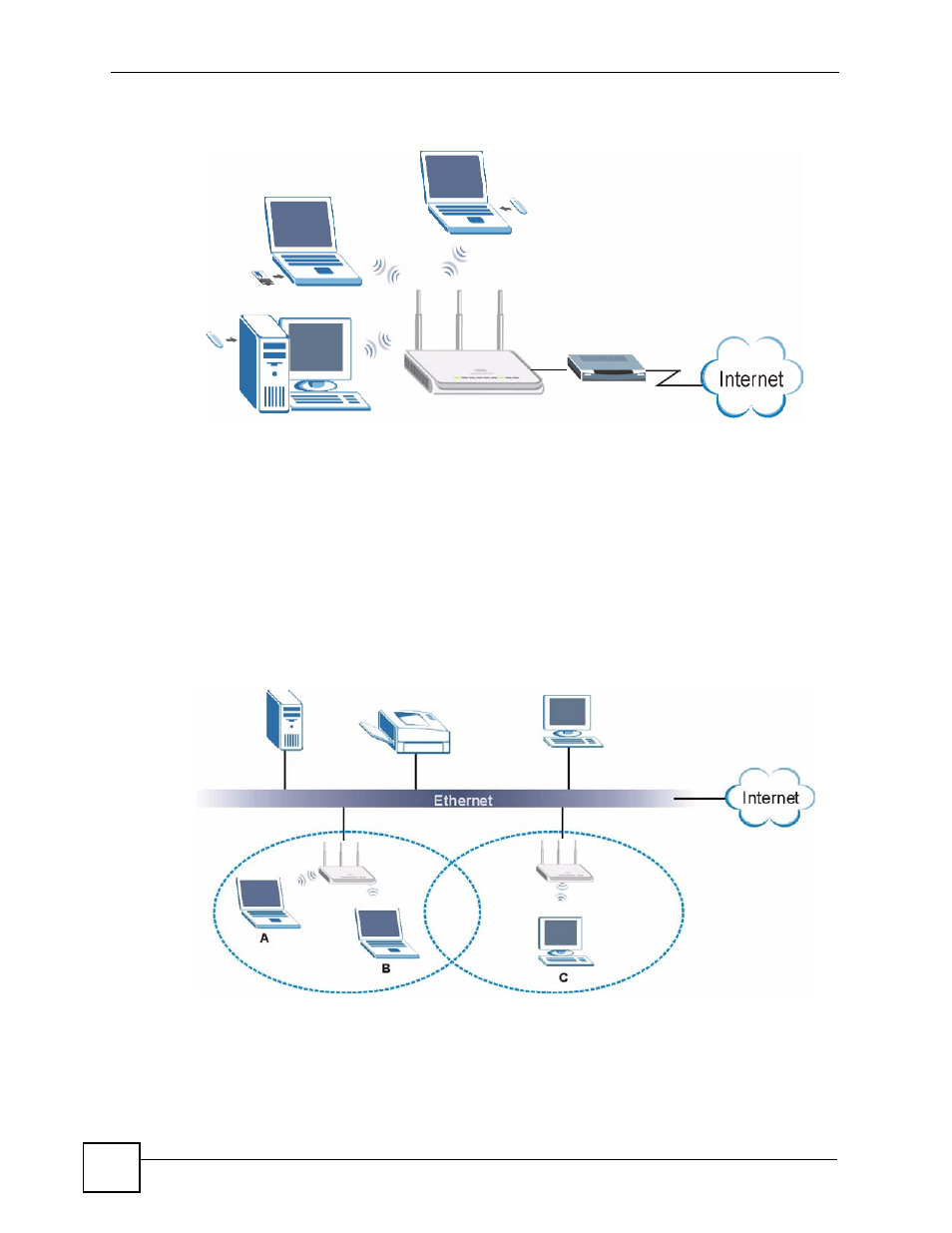

Figure 1 Internet Access Application
1.2.2 Corporate Network Access Application
In situations where users need to access corporate network resources and the Internet, the
ZyXEL Device is an ideal solution for wireless stations to connect to the corporate network
without expensive network cabling. Stations A, B and C can access the wired network through
the ZyXEL Devices.
The following figure depicts a typical application of the ZyXEL Device in an enterprise
environment. The three computers with wireless adapters are allowed to access the network
resource through the ZyXEL Device after account validation by the network authentication
server.
Figure 2 Corporate Network Application
1.2.3 Wireless Client Application
The ZyXEL Device can function as a wireless client to connect to a network via an Access
Point (AP). The AP provides access to the wired network and the Internet.
