P-2602R/RL-DxA Series User’s Guide

Chapter 16 Bandwidth Management

191

• Each class gets up to its budgeted bandwidth. The administration class only uses 1024

kbps of its budgeted 2048 kbps.

• The ZyXEL Device divides the total 3072 kbps total of unbudgeted and unused

bandwidth equally among the other classes. 1024 kbps extra goes to each so the other
classes each get a total of 3072 kbps.

16.6.3 Bandwidth Management Priorities

Traffic with a higher priority gets through faster while traffic with a lower priority is dropped
if the network is congested. The following table describes the priorities that you can apply to
traffic that the ZyXEL Device forwards out through an interface.

16.7 Configuring Summary

Click Advanced > Bandwidth MGMT to open the screen as shown next.

Enable bandwidth management on an interface and set the maximum allowed bandwidth for
that interface.

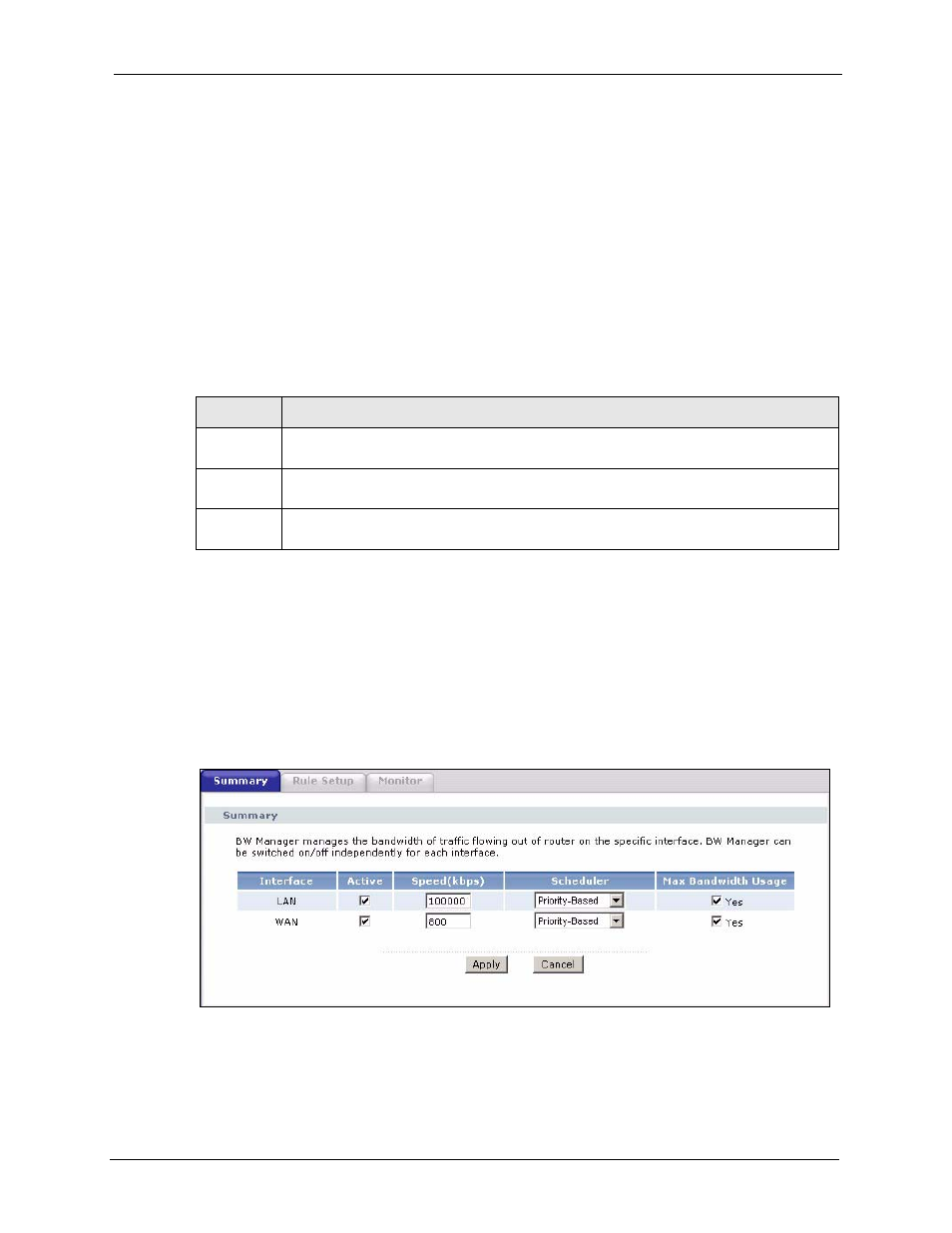

Figure 95 Bandwidth Management: Summary

Table 69 Bandwidth Management Priorities

PRIORITY

DESCRIPTION

High

Typically used for voice traffic or video that is especially sensitive to jitter (jitter is the

variations in delay).

Mid

Typically used for “excellent effort” or better than best effort and would include important

business traffic that can tolerate some delay.

Low

This is typically used for non-critical “background” traffic such as bulk transfers that are

allowed but that should not affect other applications and users.
