5-4 Remote Node TCP/IP Configuration
.

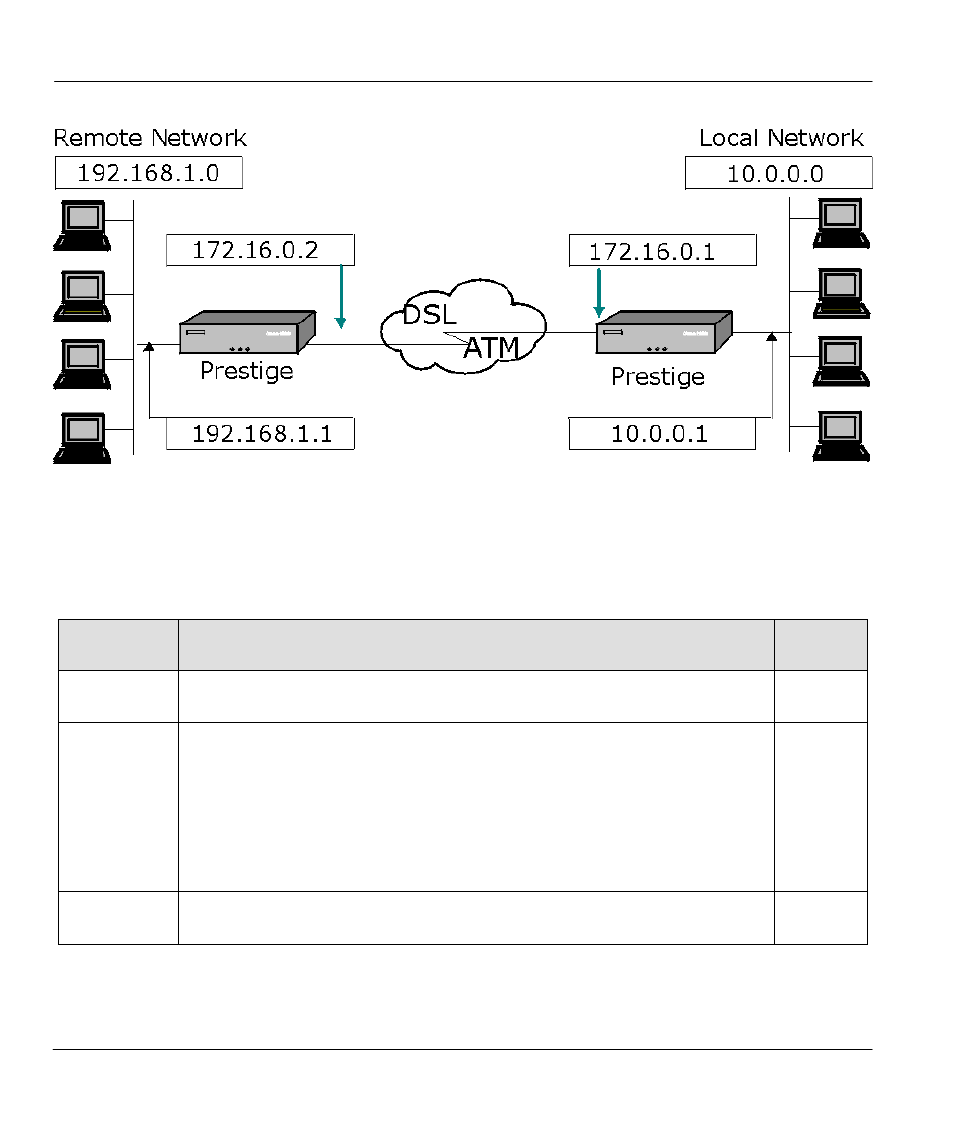

Figure 5-4 Sample IP Addresses for a TCPI/IP LAN-to-LAN Connection
To configure the TCP/IP parameters of a remote node, first configure the three fields in Menu 11.1 –
Remote Node Profile, as shown in the table below.
Table 5-1 TCP/IP-Related Fields in Remote Node Profile
FIELD DESCRIPTION OPTION
S
Route Make sure IP is among the protocols in the Route field in Menu 11.1 –
Remote Node Profile. IP
Rem IP
Address Enter the IP address of the remote gateway in Menu 11.1 – Remote Node
Profile. You must fill in either the remote Prestige WAN IP address or the
remote Prestige LAN IP address. This depends on the remote router’s WAN
IP i.e., for the (remote) Prestige, the My WAN Addr settings in Menu 11.3.
For example (see previous Figure), if the remote WAN IP is set to
172.16.0.2 (the remote router’s WAN IP), then you should enter 172.16.0.2
in the Rem IP Addr field. If the remote WAN IP is 0.0.0.0, then enter
192.168.1.1(the remote router’s LAN IP) in the Rem IP Addr field.
Edit IP Press [space bar] to toggle this field to Yes and then press [Enter] to go to
Menu 11.3
– Remote Node Network Layer Options menu.
Yes or
No
The following table shows the TCP/IP-related fields in Menu 11.3 – Remote Node Network Layer
Options.
