P-660R/H-D Series User’s Guide
87 Chapter 7 Network Address Translation (NAT) Screens
7.3.3 Configuring Servers Behind SUA (Example)
Let's say you want to assign ports 21-25 to one FTP, Telnet and SMTP server (A in the
example), port 80 to another (B in the example) and assign a default server IP address of
192.168.1.35 to a third (C in the example). You assign the LAN IP addresses and the ISP
assigns the WAN IP address. The NAT network appears as a single host on the Internet.
IP address assigned by ISP.

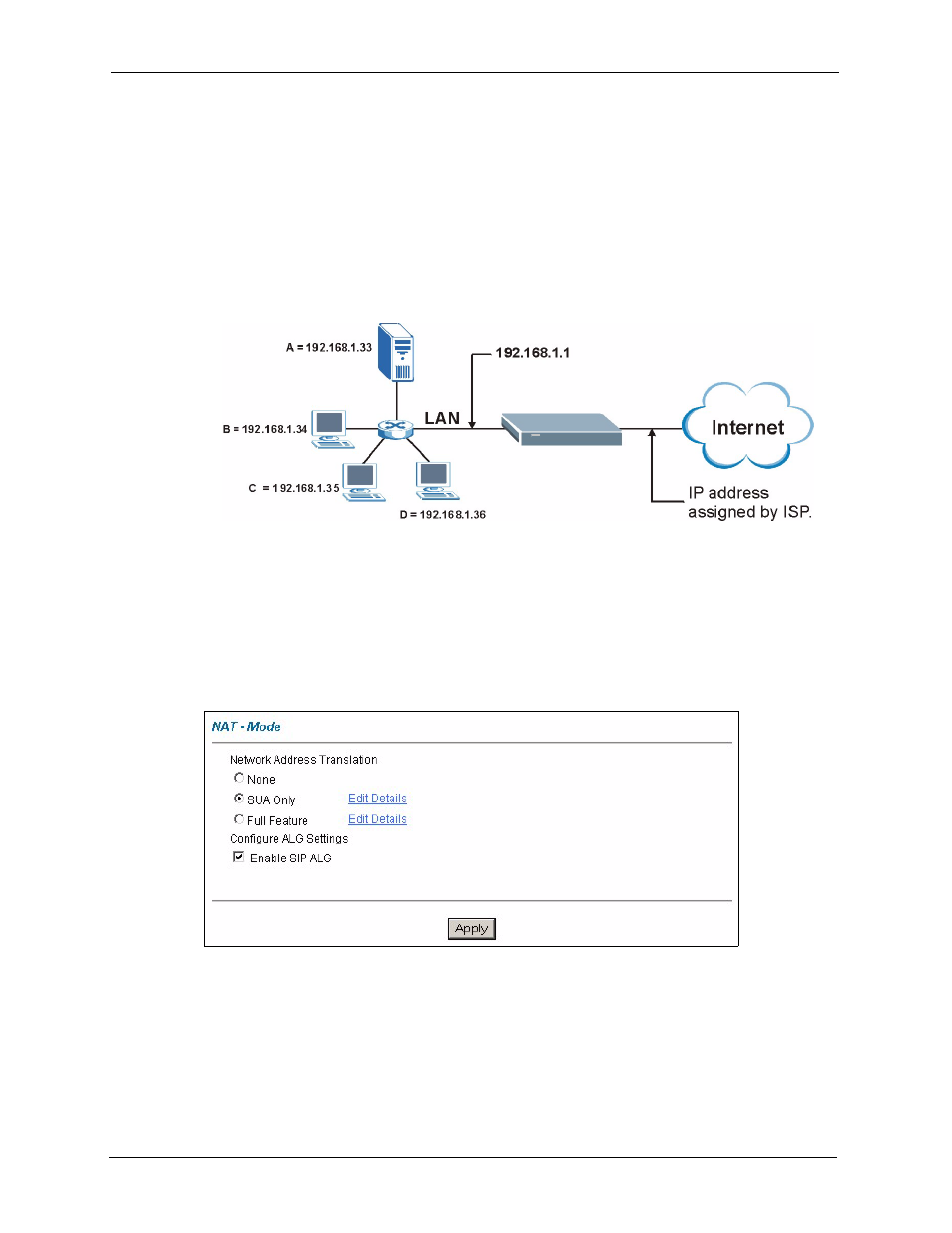

Figure 30 Multiple Servers Behind NAT Example
7.4 Selecting the NAT Mode
You must create a firewall rule in addition to setting up SUA/NAT, to allow traffic from
the WAN to be forwarded through the Prestige. Click NAT to open the following screen.
Figure 31 NAT Mode
