P-660R/H-D Series User’s Guide
Chapter 16 Media Bandwidth Management Advanced Setup 174
The following table describes the labels in this screen.
16.13 Bandwidth Monitor
To view the Prestige’s bandwidth usage and allotments, click Media Bandwidth
Management, then Monitor. The screen appears as shown.

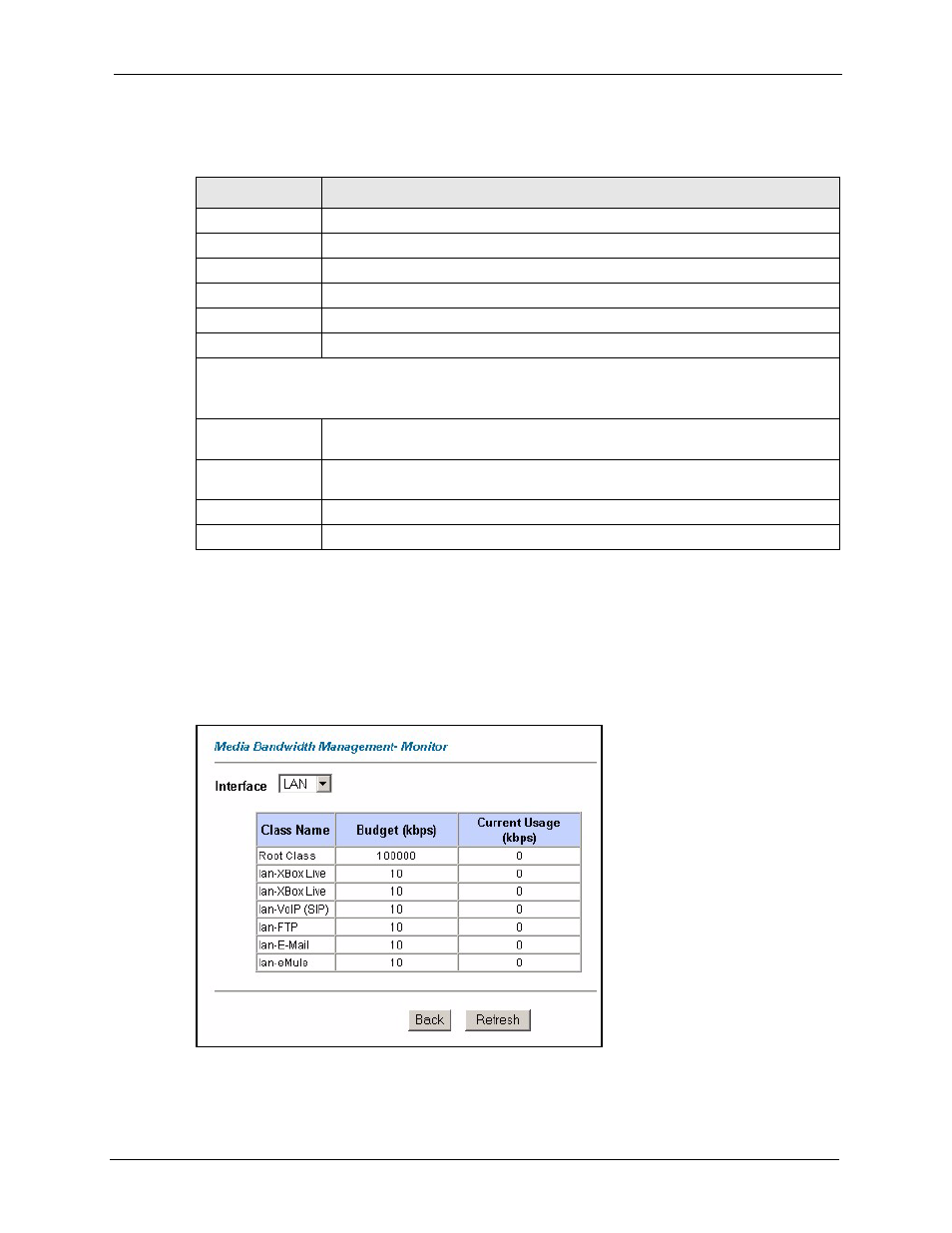

Figure 85 Media Bandwidth Management: Monitor
Table 59 Media Bandwidth Management Statistics
LABEL DESCRIPTION
Class Name This field displays the name of the class the statistics page is showing.
Budget (kbps) This field displays the amount of bandwidth allocated to the class.
Tx Packets This field displays the total number of packets transmitted.
Tx Bytes This field displays the total number of bytes transmitted.
Dropped Packets This field displays the total number of packets dropped.
Dropped Bytes This field displays the total number of bytes dropped.
Bandwidth Statistics for the Past 8 Seconds (t-8 to t-1)
This field displays the bandwidth statistics (in bps) for the past one to eight seconds. For example, t-1
means one second ago.
Update Period
(seconds)
Enter the time interval in seconds to define how often the information should be
refreshed.
Set Interval Click Set Interval to apply the new update period you entered in the Update
Period field above.
Stop Click Stop to halt the browser from refreshing bandwidth management statistics.
Clear Counter Click Clear Counter to clear all of the bandwidth management statistics.
