Page 44
P-660R/H-D Series User’s Guide
43
Chapter 1 Getting To Know Your Prestige

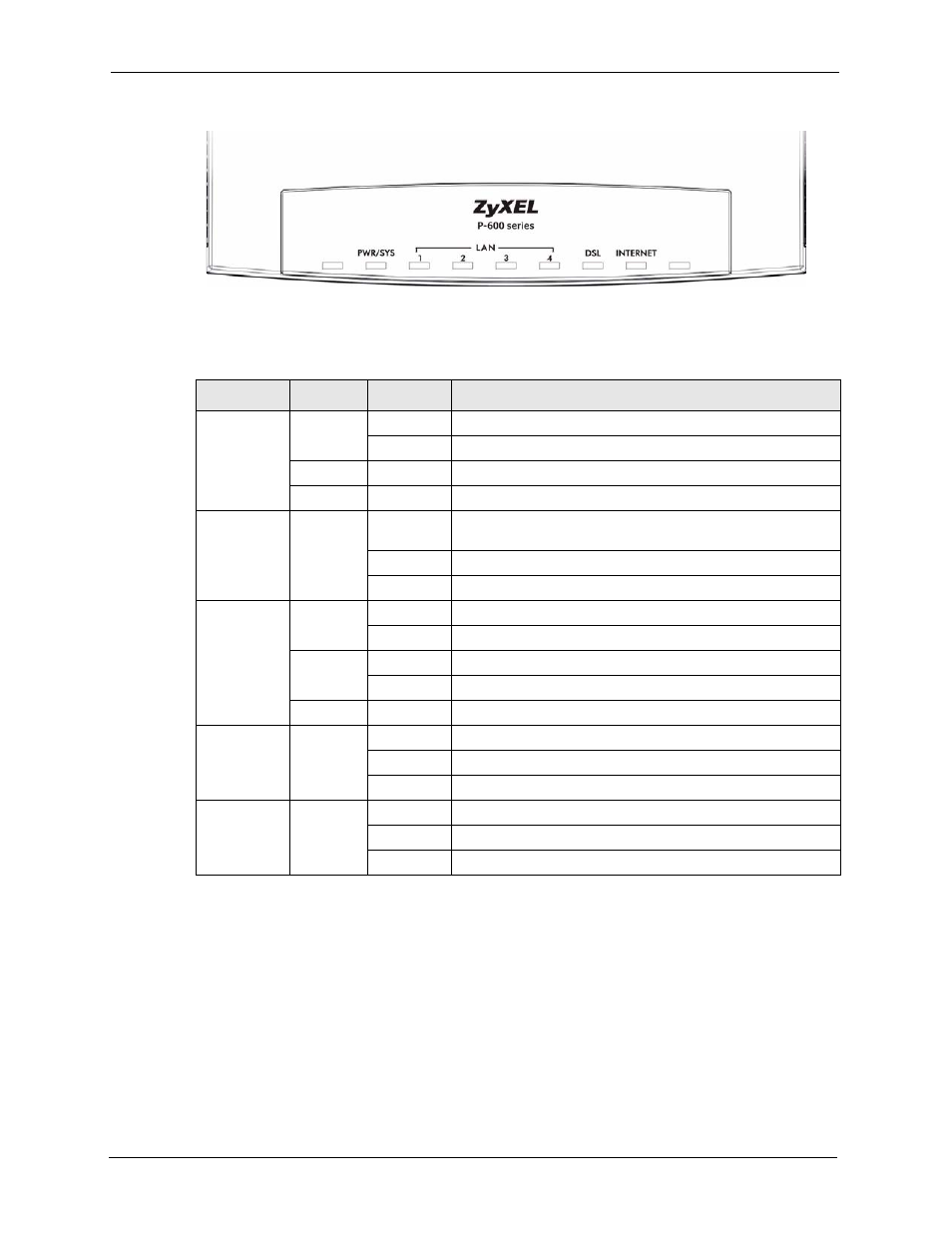

Figure 3 Front Panel
The following table describes the LEDs.
1.5 Hardware Connection
Refer to the Quick Start Guide for information on hardware connection.
Table 3 Front Panel LEDs
LED
COLOR
STATUS
DESCRIPTION
PWR/SYS
Green
On
The Prestige is receiving power and functioning properly.
Blinking
The Prestige is rebooting or performing diagnostics.
Red
On
Power to the Prestige is too low.
Off
The system is not ready or has malfunctioned.
LAN
10/100M
(P-660H-D)
Green
On
The Prestige has a successful 10/100Mbps Ethernet
connection.
Blinking
The Prestige is sending/receiving data.
Off
The LAN is not connected.
LAN
10/100M
(P-660R-D)
Green
On
The Prestige has a successful 10Mbps Ethernet connection.
Blinking
The Prestige is receiving or sending data.
Amber
On
The Prestige has a successful 100Mbps Ethernet connection.
Blinking
The Prestige is receiving or sending data.
Off
The LAN is not connected.
DSL
Green
On
The DSL line is up.
Blinking
The Prestige is initializing the DSL line .
Off
The DSL line is down.
INTERNET
Green
On
The Internet connection is up.
Blinking
The Prestige is sending/receiving data.
Off
The Internet connection is down.
