P-660R/H-D Series User’s Guide
Appendix D Wall-mounting Instructions 332
Appendix D
Wall-mounting Instructions
Do the following to hang your Prestige on a wall.
Note: See the product specifications appendix for the size of screws to use and how
far apart to place them.
1 Locate a high position on wall that is free of obstructions. Use a sturdy wall.
2 Drill two holes for the screws. Make sure the distance between the centers of the holes
matches what is listed in the product specifications appendix.
Note: Be careful to avoid damaging pipes or cables located inside the wall when
drilling holes for the screws.
3 Do not screw the screws all the way into the wall. Leave a small gap of about 0.5 cm
between the heads of the screws and the wall.
4 Make sure the screws are snugly fastened to the wall. They need to hold the weight of the
Prestige with the connection cables.
5 Align the holes on the back of the Prestige with the screws on the wall. Hang the Prestige
on the screws.

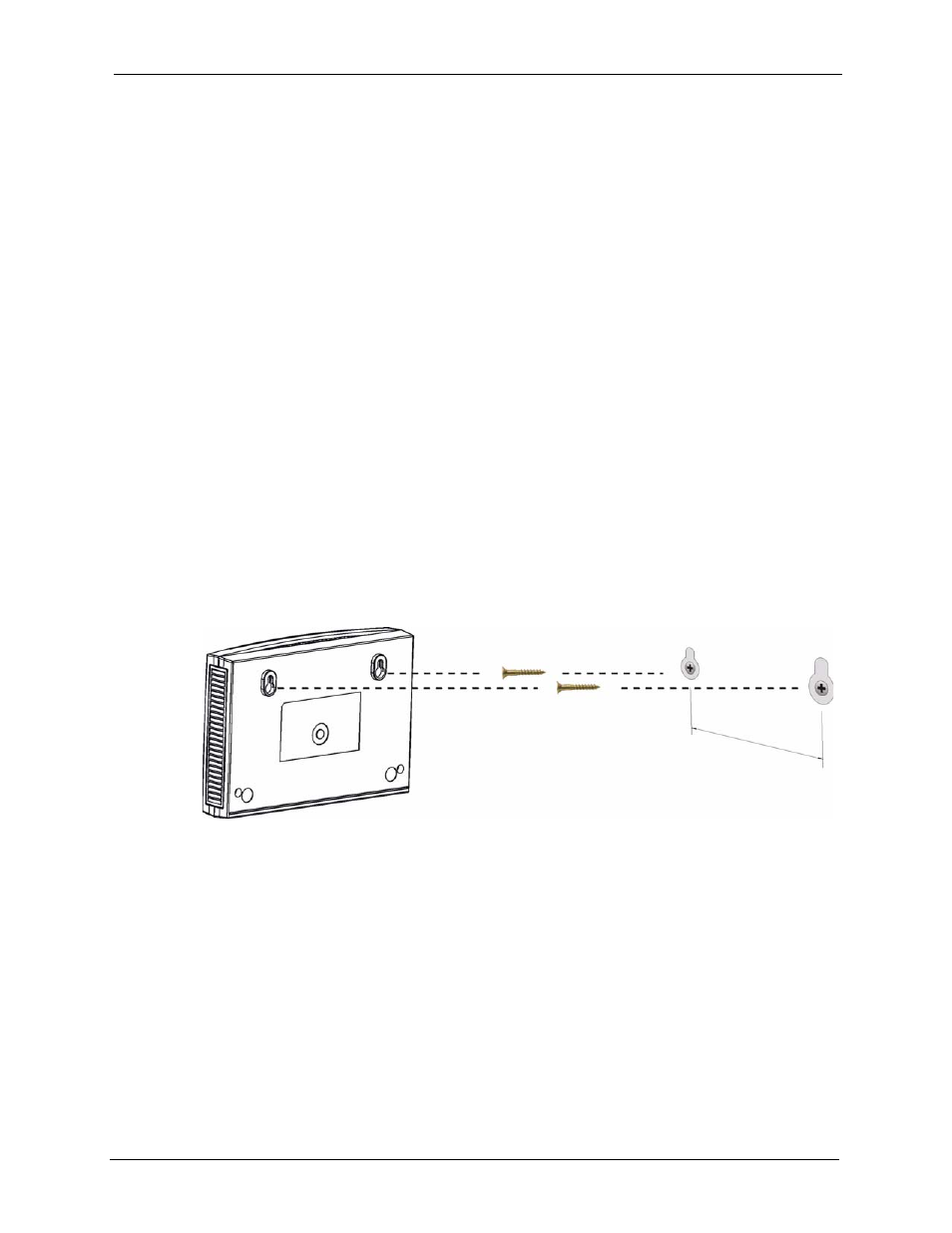

Figure 218 Wall-mounting Example
