Page 48

PES-1014 User’s Guide

7-2

VLAN

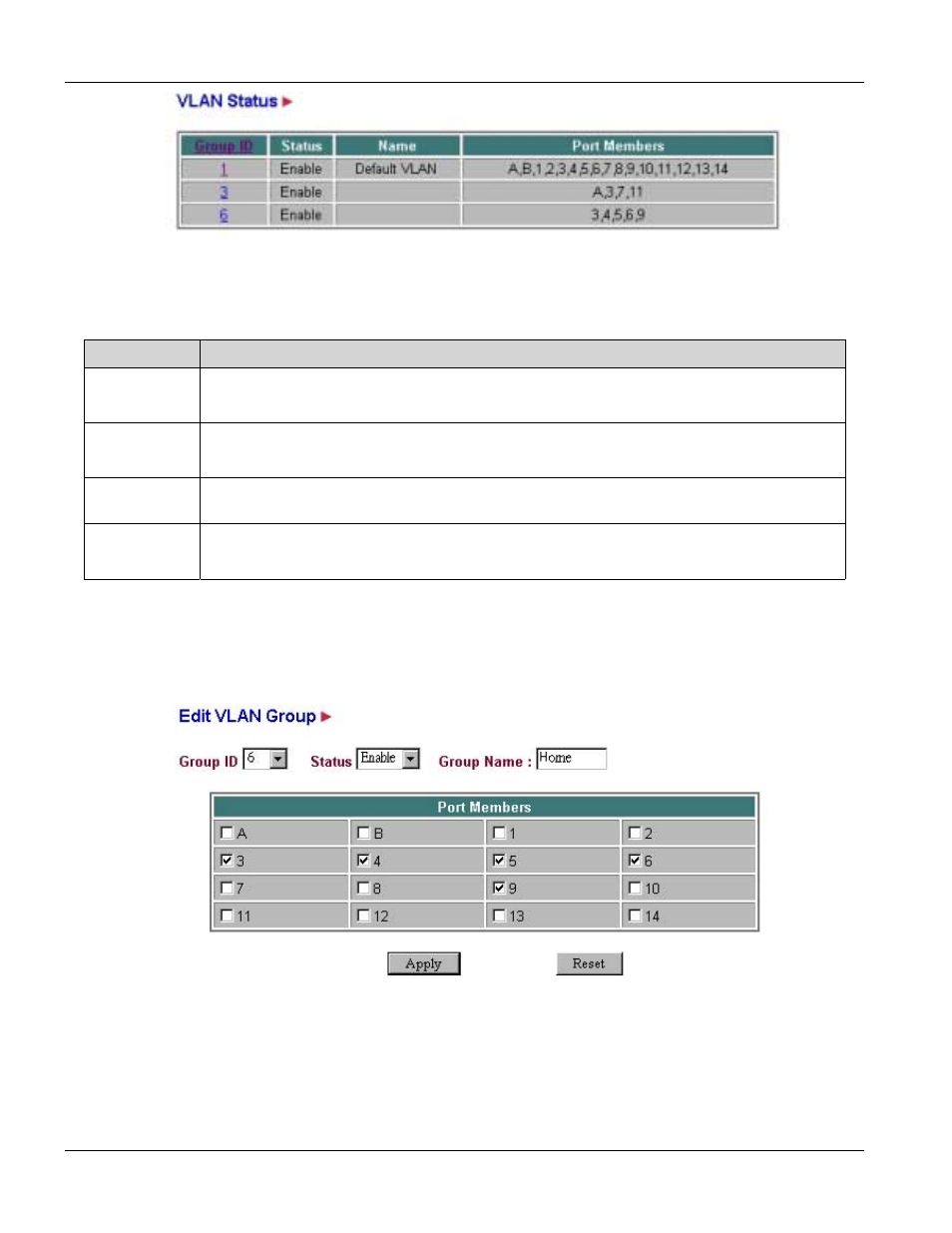

Figure 7-2 VLAN Status

Table 7-1 VLAN Status Description

FIELD

DESCRIPTION

Group ID

There are 64 possible VLAN Groups (VLAN Group 1 is the default and non-editable). Click
any of the other Group ID numbers to display the corresponding VLAN editing screen.

VLAN Status

This column indicates the current status of all VLAN groups. “Enable” means that the
selected VLAN is active. “Disable” means that the selected VLAN is inactive.

VLAN Name

This is the name of a VLAN group; the maximum length is 32 characters. This field is case
sensitive.

Port Members

This column shows the participating ports of a particular VLAN group. Add or delete port
members by doing edits in the Edit VLAN screen.

7.2

Edit VLAN Group

Move the cursor over the VLAN link and click Edit VLAN to display the Edit VLAN Group screen shown next.
Use this screen to modify a VLAN group’s list of port members, activity status, and name.

Figure 7-3 Edit VLAN Group
